CWT5011 Cellular wireless RTU, gsm sms 3G data acquisition system, 4-20ma controller, gsm 3G 4G remote control system
CWT5011 Cellular wireless RTU, gsm sms 3G data acquisition system, 4-20ma controller, gsm 3G 4G remote control system
Specifications
Brand Name :
CWT
Model Number :
CWT5011
Certification :
CE,RoHS
Place of Origin :
China
MOQ :
1 unit
Price :
$100-200/set
Payment Terms :
T/T, western union, paypal
Supply Ability :
5000units/month
Delivery Time :
within 1-3 working days after payment
Packaging Details :
one unit in one box
DC Power supply :
12-24V DC (Standard adapter: DC 12V/1.5A)
Frequency range :
Quad-frequency 900/1800/850/1900HMz
Digital Input :
8 digital inputs(Dry contact)
output :
8 drivable relay outputs(open-collector outputs)
Exterior dimension :
96X63X25mm
Weight :
256g
Usage :
gsm sms alarm control system
Type :
Automatic Door Operators
OEM :
Yes
Description

CWT5011 Cellular wireless RTU, gsm sms 3G data acquisition system, 4-20ma controller, gsm 3G 4G remote control system

Support 3G/4G version (Skype: lisali1220 WhatsApp: 0086 13652426178)

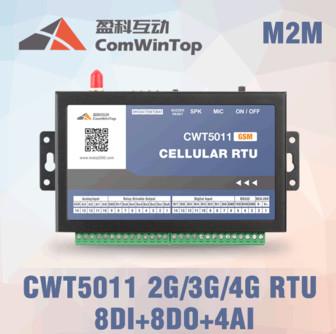

CWT5011 CELLULAR RTU

With 8DI & 8DO & 4AI, remote monitor industry system via sms

SMS alarm, SMS control and SMS monitor value

wireless RTU, gsm sms 3G data acquisition system, 4-20ma controller,

gsm 3G 4G remote control system

CWT5011 Cellular wireless RTU, gsm sms 3G data acquisition system, 4-20ma controller, gsm 3G 4G remote control system CWT5011 Cellular wireless RTU, gsm sms 3G data acquisition system, 4-20ma controller, gsm 3G 4G remote control system

£ Interface feature and parameters

CWT5011 Cellular wireless RTU, gsm sms 3G data acquisition system, 4-20ma controller, gsm 3G 4G remote control system

£ Communication feature

CWT5011 Cellular wireless RTU, gsm sms 3G data acquisition system, 4-20ma controller, gsm 3G 4G remote control system

£ Technical characteristic

l Adopted highly integrated industrial 32-bit ARM MCU

l Inside cellular module, support sms communication

l Reliable performance with built-in double watchdog, 24×7 operation

l Can set parameters for every channel to signal collection, alarm

l Multiple signal filtering mechanisms to ensure immediacy and reliability of the system

l Network-reconnect and retransmission to ensure sms and data accurately transmit

l Update RTC automatically or manually, clock source support Sms, NTP, CwtIO Server

l Can set multiple timers(second, minute, day, week, month) to execute actions, e.g. output, upload data, change setting

l Event-based linkage programming, e.g. alarm linkage output

l Inside temperature optional, can set high or low to alarm

l Optional inside battery that life is 8-20 hours, cellular module sleep when power lost, support power lost alarm and recover sms

£ Device Specifications

CWT5011 Cellular wireless RTU, gsm sms 3G data acquisition system, 4-20ma controller, gsm 3G 4G remote control system

£ Size diagram

CWT5011 Cellular wireless RTU, gsm sms 3G data acquisition system, 4-20ma controller, gsm 3G 4G remote control system

£ Package list

RTU×1, antenna×1,Standard adapter: DC 12V/1.5A×1,serial cable×1

£ Free Configure Software

l No programming! set parameter by visual interface

l Can save config file, one click finish config

l Over 100 parameters can be set, flexible! Meeting various industrial requirements

CWT5011 Cellular wireless RTU, gsm sms 3G data acquisition system, 4-20ma controller, gsm 3G 4G remote control system£ CWT5000 series cellular RTU list

model IO interface communication interface Modbus SMS TCP/IP Over cellular More detail
CWT5005A 2DI+2DO 1 RS232 × √ × view»
CWT5005B 2DI+1DO(relay) 1 RS232 × √ × view»
CWT5010 4DI+4DO 1 RS232 × √ × view»
CWT5011 8DI+8DO+4AI 1 RS232 × √ × view»
CWT5110 4DI+4DO 1 RS232 × √ √ view»
CWT5111 8DI+8DO+4AI 1 RS232 × √ √ view»
CWT5015 2DI+3DO(relay)+1AI 1 RS232 × √ √ view»
CWT5016 4DI+4DO+4TI+4AI 1 RS232 × √ √ view»
CWT5002 4DI+4DO 1 RS232(RS485 optional) √ √ √ view»
CWT5018 4DI+2DO(relay)+8AI 1 RS232+1RS485+1Ethernet √ √ √ view»
Cellular module default is 2G module, option: 3G/4G module

£ Free CWT Cloud

CWT5011 Cellular wireless RTU, gsm sms 3G data acquisition system, 4-20ma controller, gsm 3G 4G remote control system

>>>>>>>>View CWT Cloud details

£ Application case

CWT5011 Cellular wireless RTU, gsm sms 3G data acquisition system, 4-20ma controller, gsm 3G 4G remote control system

£ Application

CWT5011 Cellular wireless RTU, gsm sms 3G data acquisition system, 4-20ma controller, gsm 3G 4G remote control system

>>>>>>>>View more M2M solutions

£ Certificates

CWT5011 Cellular wireless RTU, gsm sms 3G data acquisition system, 4-20ma controller, gsm 3G 4G remote control system
