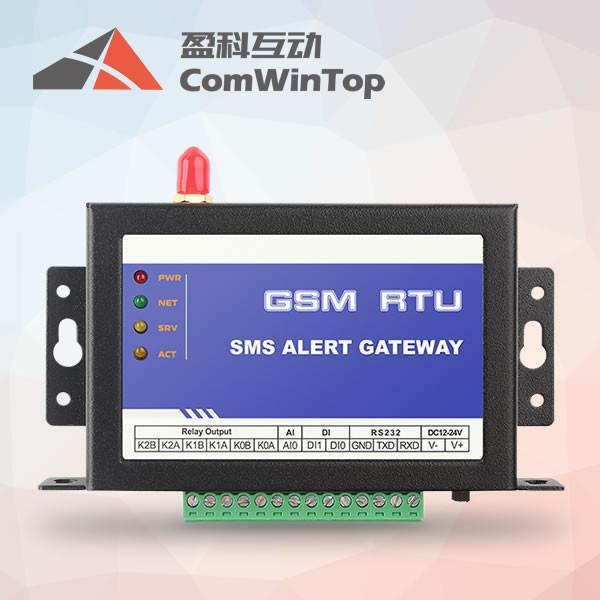

CWT5015 m2m controller, gsm sms remote controller system

Support 3G/4G version (Skype: lisali1220 WhatsApp: 0086 13652426178)

CWT GSM m2m RTU List:

CWT5005 has 2 digital inputs and 2 digital outputs

CWT5010 has 4 digital inputs and 4 digital outputs

CWT5010 has 12 digital inputs and 8 digital outputs

CWT5015 has 1 digital inputs and 2 relay outputs and 1 analogue input

CWT5011 has 8 digital inputs and 8 digital outputs and 4 analogue inputs

3 relay outputs features:

l Configurable automation modes

l Remote On/Off/Pulse relay

l Configurable pulse time

l Remote query outputs status

l Relay can be activated by alarm

l Relay can be activated by call

l Relay can be activated on schedule

1 AD inputs features: ( 4-20mA or 0-5V analogue input)

l Preset high and low level to alarm

l Remote query analog via sms

l Configurable the alarm and recover sms text

l Configurable alarm ensure time

l Configurable alarm delay time

l Configurable offset and gain

l Send current value on schedule

2 digital inputs features:

l Accept NO or NC contact

l Configurable alarm and recover sms

l Configurable alarm ensure time

l Configurable alarm delay time

l Can set receivers for every inputs

l Remote enable or disable any input

l Remote query inputs status

Advance features:

l Configurable alarm and recover sms

l Automatically report the status of itself on schedule

l Support remote setup via sms commands

l Preset 10 phone numbers(can be distributed authority)

l Remote add/edit/delete phone group

l Support custom sms commands

l Automatically update internal clock via sms

l Time stamped in alarm or recover messages

l Support ring call when alarm

l Temperature sensor (optional)

l Internal battery and providing power cut off alarm

l Easy used GUI configure software

l Adopted highly integrated industrial CPU

l Reliable performance with built-in double watchdog

l Can execute preset tasks by re-defined conditions

l Low maintenance, 24×7 operation

Specifications

l DC Power supply:12-24V DC (Standard adapter: DC 12V/1.5A)

l Power consumption: Quad-frequency 900/1800/850/1900MHz

l SIM Card: Supporting 3V&1.8V SIM Card

l Antenna connector: 50 Ω SMA connector.

l Communication interface: RS-232

l Working temperature: -30°C ~ +70°C

l Working humidity: Relative humidity 95%

l Digital input: 2 Digital inputs (dry contact)

l Output: 3 Relay outputs (3A, 220Vac)

l Analog input:1 Analog input (4~20mA or 0~5V)

l Exterior dimension: 95×63×25mm

l Weight: 256G

How to setup:

l Can be setup by free PC software via serial port

l Can be remote setup via sms commands

When does GSM RTU send sms:

l Digital inputs are triggered

l AD inputs out of preset range

l Send command via serial port

l Manual request by sms command

l External DC power off or recover

l On schedule, such as daily report, etc.
