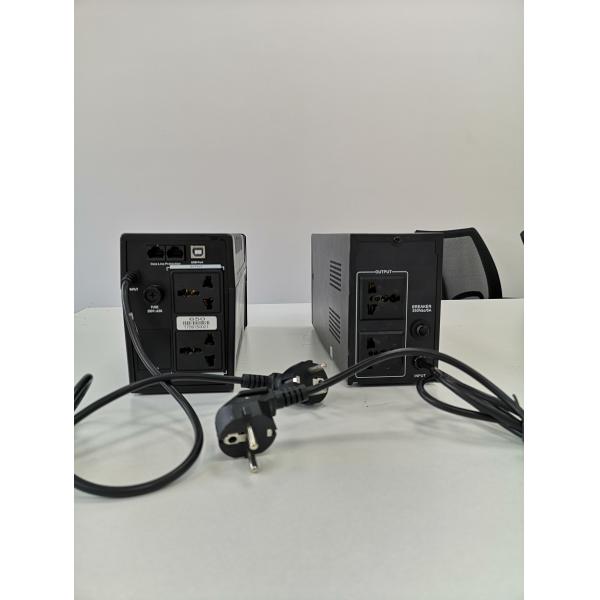

Single Phase 220V 100W PWM UPS
Single Phase 220V 100W PWM UPS
Single Phase 220V 100W PWM UPS
Single Phase 220V 100W PWM UPS
Specifications
Brand Name :
G-Tech
Model Number :
V-
Certification :
CE ROHS
Place of Origin :
Guangdong,China
MOQ :
500pcs
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
1000000pcs
Delivery Time :
7-25workdays
Packaging Details :
Carton packing
Price :
Negotiation
Protection :
Overvoltage
Application :
Computer
Capacity :
60% of rated power
Input voltage :
110v/220v
charge period :
8 hours to be full
Phase :
Single Phase
Display :
LED/LCD optional
Description

Single Phase 220V 100W PWM UPS

UPS 100W 500W 1000W 1500W Offline UPS 220V LED Display Power Supply

This series of UPS appllies CPU integrated technology,which allows UPS to response promptly and accurately when power outage,high or low voltage,surge,transient or spike occurs while its surge protection port provides protection for special external devices,such as printers and so on.It posses automatic startup function,automatic voltage regulation function and a wide range of input voltage,so it is applicable to all kinds of electric power enviroment. In addition,its design is humanized and elegant with LED of LCD display,those are two alternatives.

Specification

MODEL V-525 V-625
Capacity 500VA/300W 600VA/360W
INPUT
Input Voltage 110/120Vac or 220/230/240Vac
Intput Voltage Range 90~132Vac/175~265Vac 85~150Vac/145~290Vac
Frequency Range 45~65Hz
OUTPUT
Output Voltage 110/120Vac or 220/230/240Vac
Output Voltage Range 90~132Vac/175~265Vac 102-132Vac/200~255Vac
Output Frequency 60±0.5Hz or 50±0.5Hz(Batt.Mode)
Output Wave Form PWM(Batt.Mode)
Transfer Time Typical(2-6ms),10ms max
BATTETRY
Qty.& Capacity of Battery 12V/4AH*1pc 12V/7AH*1pc
Charging Period 4-6hours recover to 90% capacity
PROTECTION
Full Protection Low Voltage &overload&short circuit protection
PHYSICAL
Net Weight(kg) 4.4 5
Unit Dimensions(mm) 255*98*140 300*95*140
ENVIRONMENT
Environment of Performance Tempreture 0℃-40℃,Humidity 20%-90%
Noise level ≤40dB(1m)
MANAGEMENT
LCD or LED,RJ45/11&USB Optional

Filed of application

Suitable for the PC,router,POS machine communication processor,industrial products which for the enterprise,goverment,scientific research ,traffic,national defense,information and aducation industries

Feature

Auto re-starts when AC recovers

Slience steup

Automatic charging(offline charging)

Battery low voltage protection

Overload & short circuit protection

CPU controlled

Optional RJ 45/11 & USB port

Wide input voltage range

Single Phase 220V 100W PWM UPSSingle Phase 220V 100W PWM UPSSingle Phase 220V 100W PWM UPS
