Specifications
Built-in ADC :
12-bit resolution
Multi-channel operational amplifier and PGA :
Enhanced analog signal processing
N+N drive :
Increased motor drive capability
Simplified peripheral circuit :
Streamlined external circuitry requirements
Optimized sensorless startup algorithm :
100% startup success rate
Motor position tracking algorithm :
Precise tracking of motor position
Position speed curve algorithm :
Smooth and comfortable operation
Description

Electric Scissors Solution

Description

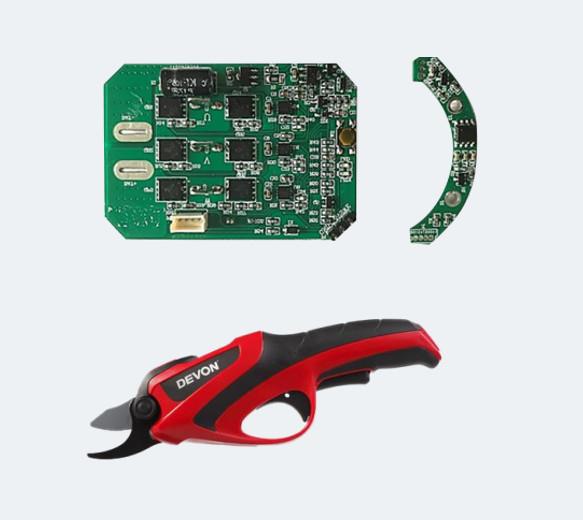

Electric scissors are widely used in gardening, fruit forest pruning, cutting, picking and other occasions. Golden Triangle Group has launched a cost-effective electric scissors main control board and blade position detection board with few peripheral components to provide a complete solution.

Electric scissors program performance characteristics:

> Built-in 12-bit ADC, multi-channel operational amplifier, PGA, N+N drive, simplifying the peripheral circuit

> Optimized sensorless startup algorithm, 100% startup success

> Motor position tracking algorithm, position speed curve algorithm, comfortable hand feeling, position torque following

> The algorithm realizes that the opening or closing position can be set at any position, without relying on the hall position

> Double-click the trigger to turn on, fast switching of openings, locked-rotor rebound, zero-current sleep

> With opening fast switching, power display, automatic standby and hibernation, anti-cutting hands

> With input over-voltage and under-voltage protection, over-current protection, over-temperature protection, phase-to-phase short-circuit protection, phase loss protection, locked-rotor protection and other protection functions

Attribute Attribute Value
Built-in ADC 12-bit resolution
Multi-channel operational amplifier and PGA Enhanced analog signal processing
N+N drive Increased motor drive capability
Simplified peripheral circuit Streamlined external circuitry requirements
Optimized sensorless startup algorithm 100% startup success rate
Motor position tracking algorithm Precise tracking of motor position
Position speed curve algorithm Smooth and comfortable operation
Position torque following Responsive torque control based on position
Independent position setting Opening or closing position can be set at any position
Double-click trigger activation Fast and convenient switching
Locked-rotor rebound Automatic recovery from locked-rotor situations
Zero-current sleep Low-power sleep mode when not in use

System diagram
