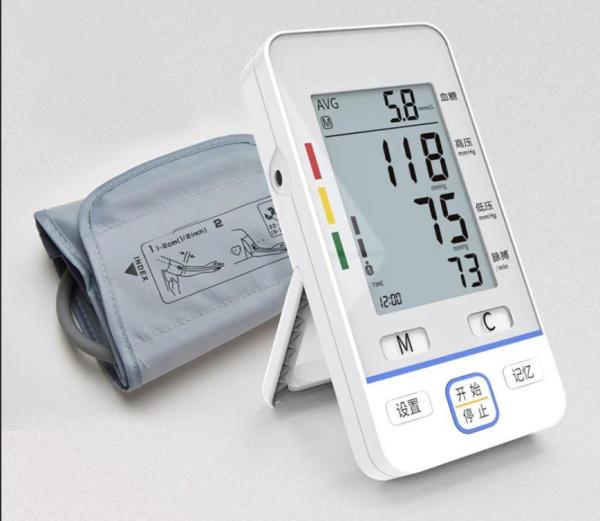

TFT Color Screen Sphygmomanometer Solution Personal Healthcare Best PCB Manufacturers
TFT Color Screen Sphygmomanometer Solution Personal Healthcare Best PCB Manufacturers
Specifications
Main control chip :
CMS32H3201 with Cortex M0+ ultra-low power core
Power consumption (deep sleep) :
0.7uA
Main frequency :
Up to 64MHz
Built-in features :
24-bit high-precision ADC, I/O matrix, QSPI, USB, LCDB, 32KB SRAM, 256KB Flash
Software :
UCOSII&QP
Display :
2.8 inch color LCD monitor
Measurement method :
Oscillation method working mode
Description

TFT color screen sphygmomanometer solution

Description

An electronic sphygmomanometer is a medical device that uses modern electronic technology and the principle of indirect blood pressure measurement to measure blood pressure. Golden Triangle Group has developed an extremely cost-effective complete solution based on the high-performance and low-power CMS32H3201 series of MCUs.

Sphygmomanometer program performance characteristics:

> The main control chip CMS32H3201 uses Cortex M0+ ultra-low power core (0.7uA for deep sleep), clocked at up to 64MHz, built-in 24-bit high-precision ADC, with I/O matrix, QSPI, USB, LCDB 32KB SRAM and 256KB large capacity Flash etc.

> Software: UCOSII&QP

> Voice broadcast function

> Display mode: 2.8 inch color LCD monitor

> Measurement method: Oscillation method working mode

> Pulse range: 40-240bpm

> Pressure range: 0-290mmHg

> Pressure resolution: 1mmHg

> Power supply: four AA alkaline batteries or 6V power adapter

Attribute Attribute Value
Main control chip CMS32H3201 with Cortex M0+ ultra-low power core
Power consumption (deep sleep) 0.7uA
Main frequency Up to 64MHz
Built-in features 24-bit high-precision ADC, I/O matrix, QSPI, USB, LCDB, 32KB SRAM, 256KB Flash
Software UCOSII&QP
Voice broadcast Voice broadcast function
Display 2.8 inch color LCD monitor
Measurement method Oscillation method working mode
Pulse range 40-240bpm
Pressure range 0-290mmHg
Pressure resolution 1mmHg
Power supply Four AA alkaline batteries or 6V power adapter

System diagram
