400W GT SONIC Cleaner
Parts Ultrasonic Cleaners GT SONIC Cleaner Stainless Steel Cleaning Machine Degas ROHS 20L
General Description of GT Sonic Ultrasonic Cleaner:
GT SONIC-D series Ultrasonic cleaners are the improved version of the QTD series with dual power and degas function.40kHz frequency make it suitable for general cleaning applications.D series comprises 8 machine sizes from 2 liters to 27 liters.

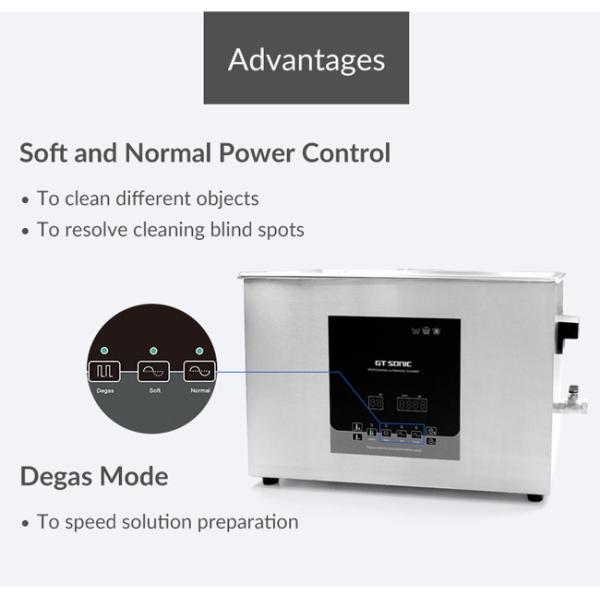

GT SONIC D-series features:
1. Normal and soft power control to resolve the cleaning blind spot.
2. DEGAS function for improve the cleaning effect.
3. User-friendly and clear panel.
4. Memory function.
5. LED display for temperature and timer.
6. High-performance transducer.
7. Patent products.
GT Sonic Ultrasonic Cleaner Specifications:
Model | Tank Size | Unit Size | Volume | Ultrasonic Power | Ultrasonic Frequency | Heating Power | Timer | Heating Temperature |
L x W x H (mm) | L x W x H (mm) | (L) | (W) | (KHz) | (W) | (MIN) | (℃) | |
GT SONIC-D2 | 150x140x100 | 190x170x220 | 2 | 50 | 40kHz | 100 | 1-99 | 0-80 |
GT SONIC-D3 | 240x140x100 | 270x170x240 | 3 | 100 | 100 | 1-99 | 0-80 | |
GT SONIC-D6 | 300x155x150 | 330x180x310 | 6 | 150 | 300 | 1-99 | 0-80 | |
GT SONIC-D9 | 300x240x150 | 330x270x310 | 9 | 200 | 300 | 1-99 | 0-80 | |
GT SONIC-D13 | 330x300x150 | 360x330x310 | 13 | 300 | 400 | 1-99 | 0-80 | |
GT SONIC-D20 | 500x300x150 | 550x330x310 | 20 | 400 | 500 | 1-99 | 0-80 | |
GT SONIC-D27 | 500x300x200 | 550×330×360 | 27 | 500 | 500 | 1-99 | 0-80 |
FAQ:
1. What's the best cleaning temperature?
To get the best cleaning result, the solution’s temperature we suggest is 40-60℃. Warm water and dish washing liquid can soften grease and improve cleaning result.It's important however to make sure these temperatures are safe for your parts before cleaning.
2. What is Ultrasonic?
Ultrasonic is sound generated beyond human audible level. In real life, high pitch sound is created by high frequency, and alternatively, the low and base tone is created by low frequency. Frequencies above 16 kHz in general are being considered as Ultrasonic. Typical Ultrasonic frequencies used for cleaning purpose are from 20 kHz to 80 kHz.
3. What can I not clean?
There is very little, but if you have any doubt we strongly recommend you contact manufacturer of the item you want to clean first. However we do know that we would not recommend the following without getting approval from the manufacturer first: Some precious stones eg, emeralds Some plastics some plastics are porous and the Ultrasonic cleaning can cause some whitening.
4. What can I clean using Ultrasonic technology?
This list is almost endless. Provided the product is non porous and can normally be immersed in water almost anything can be thoroughly cleaned.
Here are some examples:
Jewellery especially gold, silver & platinum
Watchstraps & Waterproof Watches
Coins and other collectibles
Glasses & Sunglasses
PCB Boards etc
Engine/Model parts
Toothbrushes & Dentures
CD & DVD's
5.Which industry is Ultrasonic cleaning suitable for?
Optical and glass industry
Electronic industry
Chemical industry
Galvanic industry
Fine mechanical industry
Power stations (Engine components)
Metal industry
Automobile industry
Gun
Jewelry and jewelry tools scope
6.What are the advantages of Ultrasonic cleaning?
Easy handling
Efficient
Eco-Friendly
Versatile Contaminant Removal
Cost-effective
Sonic Ultrasonic Cleaner details:
