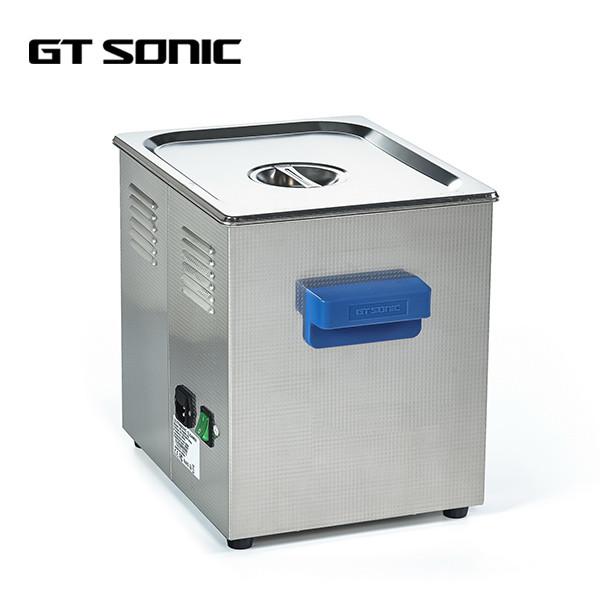

GT SONIC-P series Ultrasonic cleaners are the improved version of the QT series, with new design panel and adjustable power from 30% to 100%. It has been popular in the market since it was launched. Optimized power regulation for special cleaning. P series comprises 8 machine sizes from 2 liters to 27 liters. It is for professional use in dental, medical, laboratory and chemical industry.
Features
1. Power adjustable from 30% to 100%, suitable for different cleaning.(from 3L and above)
2. With mechanical control timer and heater.
3. All machines with stainless steel materials.
4. Stamping tank without welding gap for better waterproof.
5. Powerful Ultrasonic transducer for efficiency and cleaning effect.
6. Ceramic heaters for better heating effect.
7. Drainage and cool fan are available for 6L and above volume models, convenient to use.
8. Special cooling system, components working more steady .
9. Moisture-proofed and anti-corrosion PCB, capable for different working environments .
Specifications
Model | Tank size | Unit size | Volume | Ultrasonic power | Ultrasonic frequency | Heating power | Timer | Heating temperature |
L×W×H(mm) | L×W×H(mm) | (L) | (W) | (kHz) | (W) | (MIN) | (℃) | |
GT SONIC-P2 | 150×140×100 | 190×170×220 | 2 | 50 | 40 | 100 | 0-30 | 20-80 |
GT SONIC-P3 | 240×140×100 | 270×170×240 | 3 | 30-100 | 100 | 0-30 | 20-80 | |
GT SONIC-P6 | 300×155×150 | 330×180×310 | 6 | 45-150 | 300 | 0-30 | 20-80 | |
GT SONIC-P9 | 300×240×150 | 330×270×310 | 9 | 60-200 | 300 | 0-30 | 20-80 | |
GT SONIC-P10 | 505×135×150 | 530×165×310 | 10 | 60-200 | 400 | 0-30 | 20-80 | |
GT SONIC-P13 | 330×300×150 | 360×330×310 | 13 | 90-300 | 400 | 0-30 | 20-80 | |
GT SONIC-P20 | 500×300×150 | 550×330×310 | 20 | 120-400 | 500 | 0-30 | 20-80 | |
GT SONIC-P27 | 500×300×200 | 550×330×360 | 27 | 150-500 | 500 | 0-30 | 20-80 |
Applications
Electronics, hardware, medical, tattoo, jewelry store, glasses store, chemical industry, gun parts, bullets, academy, laboratory ,aerospace, automotive, circuit board. Use for cleaning, degas, disinfection, mix, etc.
Product Details
1.What's the best cleaning temperature?
To get the best cleaning result, the solution’s temperature we suggest is 40-60℃. Warm water and dish washing liquid can soften grease and improve cleaning result.It's important however to make sure these temperatures are safe for your parts before cleaning.
2.What is ultrasonic?
Ultrasonic is sound generated beyond human audible level. In real life, high pitch sound is created by high frequency, and alternatively, the low and base tone is created by low frequency. Frequencies above 16 kHz in general are being considered as ultrasonic. Typical ultrasonic frequencies used for cleaning purpose are from 20 kHz to 80 kHz.
3.What can I not clean?
There is very little, but if you have any doubt we strongly recommend you contact manufacturer of the item you want to clean first. However we do know that we would not recommend the following without getting approval from the manufacturer first: Some precious stones eg, emeralds Some plastics some plastics are porous and the ultrasonic cleaning can cause some whitening.
4.What can I clean using ultrasonic technology?
This list is almost endless. Provided the product is non porous and can normally be immersed in water almost anything can be thoroughly cleaned.
Here are some examples:
Jewellery especially gold, silver & platinum
Watchstraps & Waterproof Watches
Coins and other collectibles
Glasses & Sunglasses
PCB Boards etc
Engine/Model parts
Toothbrushes & Dentures
CD & DVD's (Household series VGT-1000)
5.Which industry is ultrasonic cleaning suitable for?
Optical and glass industry
Electronic industry
Chemical industry
Galvanic industry
Fine mechanical industry
Power stations (Engine components)
Metal industry
Automobile industry
Gun
Jewelry and jewelry tools scope
