Specifications
Brand Name :
Guangda
Certification :
DNV, BV, Rina, ISO, GL, ABS, LR ,CCS ,PED
Place of Origin :
Jiangsu China
Payment Terms :
D/P, L/C, D/A, T/T
Delivery Time :
15-45 work days
Material :
18CrNiMo7-6,17CrNiMo6,18CrNiMo7 etc
Type :
Forging
Diameter :
max 5000mm
gear module :
5-40
Supply condition :
rough material ,semi-finished ,finished machining
Origin :
Jiangsu China
Description

OEM Gears Alloy Gears Gears Suppliers Steel Gear Manufacturer

Hardening steels are used when great strength, high endurance limit, toughness, and resistance to shock are required. These qualities are governed by the kind of steel and treatment used. Fairly high surface hardnesses are obtainable in this group, though not so high as those of the casehardening steels. For that reason, the resistance to wear is not so great as might be obtained, but when wear resistance combined with great strength and toughness is required, this type of steel is superior to the others. Thru-hardening steels become distorted to some extent when hardened, the amount depending upon the steel and quenching medium used. For that reason, thru-hardening steels are not suitable for high-speed gearing where noise is a factor, or for gearing where accuracy is of paramount importance, except, of course, in cases where grinding of the teeth is practicable. The medium and high-carbon percentages require an oil quench, but a water quench may be necessary for the lower carbon contents, in order to obtain the highest physical properties and hardness. The distortion, however, will be greater with the water quench.

When the grinding of gear teeth is not practicable and a high degree of accuracy is required, hardened steels may be drawn or tempered to a hardness that will permit the cutting of the teeth. This treatment gives a highly refined structure, great toughness, and, in spite of the low hardness, excellent wearing qualities. The lower strength is somewhat compensated for by the elimination of the increment loads due to the impacts which are caused by inaccuracies. When steels that have a low degree of hardness penetration from surface to core are treated in this manner, the design cannot be based on the physical properties corresponding to the hardness at the surface. Since the physical properties are determined by the hardness, the drop in hardness from surface to core will give lower physical properties at the root of the tooth, where the stress is greatest. The quenching medium may be either oil, water, or brine, depending on the steel used and hardness penetration desired. The amount of distortion, of course, is immaterial, because the machining is done after heat-treating.

Wind gears Specification

Max diameter 5000mm
Gear module 5-40
Material 18CrNiMo7-6, 30CrNiMo8,17CrNiMo6,34CrNiMo6,
18CrNiMo7,42CrMo4 etc
Process capacity Turning, milling, boring ,gringding, completed machining, gear Gear Shaping ,Gear Hobbing, Gear Grinding capability.
Heat treatment Quenching and tempering, gear teeth induction quenching, nitriding, carburization
Annular Capacity 30000pcs

Precision gears specification

External Gears and external splines
  Milling Hobbing Shaping Tooth grinding
Max O.D 5000mm 1200mm 2000mm 5000mm
Max face width 2200mm 1600mm 1100mm 2200mm
Max module M35 M35 M24 M40
AGMA leval/DIN leval

DIN3962

CLASS 7

DIN3962

CLASS 7

DIN3962

CLASS 8

DIN3962

CLASS 3

Tooth surface finishing Ra3.2 Ra3.2 Ra3.2 Ra0.4
Max helix angle +30°/-45° ±45° ±45°

Precision Gears we could provide

OEM Alloy Gears Suppliers Steel Gear Manufacturer Planetary Gear
Planetary gears, also called epicyclic gear trains, are used in complex applications that require smooth torque transmission, such as drivetrains and automotive transmissions. The spur gear used by planetary gears is called a “sun spur,” which is surrounded by three-plus exterior gears called planet gears
  OEM Alloy Gears Suppliers Steel Gear Manufacturer Internal Gear
Planetary gears, also called epicyclic gear trains, are used in complex applications that require smooth torque transmission, such as drivetrains and automotive transmissions. The spur gear used by planetary gears is called a “sun spur,” which is surrounded by three-plus exterior gears called planet gears
  OEM Alloy Gears Suppliers Steel Gear Manufacturer Spur Gear
The spur gear, also called a straight-cut gear, is the simplest type of gear available. Straight-sided along the gear wheel’s axis, with straight teeth in line with the axis. Other types of spur gears transmit motion and torque laterally through compatibility with other parallel aligned gears. Such gears are main components in planetary gears.
  OEM Alloy Gears Suppliers Steel Gear Manufacturer Spline Gear
Spline gears are either cylindrical or rod-shaped with straight teeth that allow them to transmit motion laterally by fitting inside internal devices or gears.
  OEM Alloy Gears Suppliers Steel Gear Manufacturer Helical Gear
Helical gears are fast rotating gears capable of supporting heavy loads efficiently and smoothly. They feature teeth inclined towards the axis of the shaft and positioned like a helix, thus the name. Quieter than many other gears, including spur gears, helical gears are popular with applications that feature both radial loads and thrust loads.
  OEM Alloy Gears Suppliers Steel Gear Manufacturer Double helical gear
Double helical gears are a type of helical gear that has two helical faces next to each other with a gap between them. The helix angles on each face are identical but opposing. The use of a twin helical gear set lowers thrust loads and allows for even more tooth overlap and smoother operation.

Precision gears application

Rail Vehicles Oil and gas
Mining machinery Cement mixer
Power Generation Turbo
Hydro power Wind turbine
Metallurgy machinery Sugar machinery
Marine and shipbuiding Machine tools
Recycling and processing plants Rubber and plastics
Locomotive Feeding machinery

About Guangda for the gears manufacturing

1. Professional manufactuer for the gears with efficient technical team with an emphasis on cost effective production.


2. Guangda has material line and machining line could provide gear blanks and finished gears .

3. Customerized and one-stop to meet customer's requirements, provide the overall solution to customers .

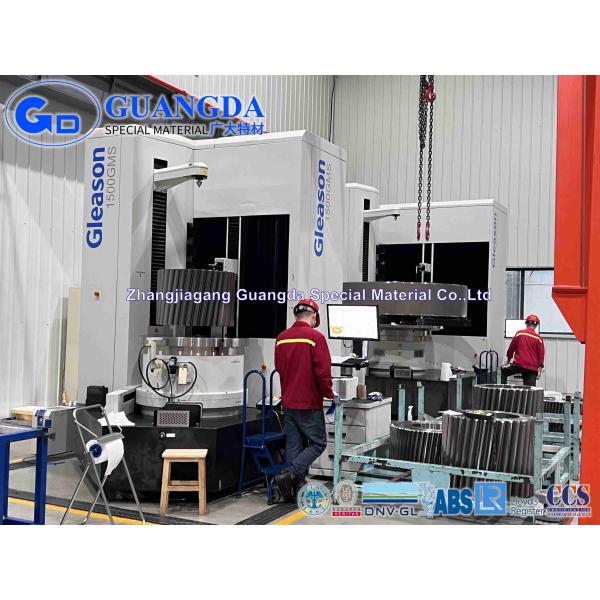

4. More than 100 sets of professional gear machining equipment including PAMA,Gleason,Danobat,Kehren,Nicolas,Pierto carnaghi of the most advanced equipment in the world.

5. More than 70 sets of the gear heat treatment equioments including the nitriding ,tempering and carbonization for the gears .


6. Guangda is the largest supplier to the world's top three customers NGC,ZF and Siemens for the gear box parts.


7. In Chinese market, Guangda wind turbine gear steel ranks first in China for the capacity, quality and market share.

Guangda is a leading manufacturer of gear box parts of the manufacturing specializing in gear box parts forging and precision machined and custom solutions in a variety of sizes and types. We provide different kind of products for the gear box parts including planet shaft ,sun shaft ,planet gear, internal ring gear, planet carrier ,head cover ,turque arm etc.

Completed supply chain--Guanda has the ability from Material of smelting ,forging ,heat treatment to the precision machining and the final surface treatment.

Comparing with companies who only make the material , we directly face the end customers and better understand customer's demand. Compared with comapanies who only do the processing, we can accurately control the quality of materials to meet the technical requirements of customers. In this way we could provide a holistic solution and control the cost of the whole process, meet the delivery time, and resist market risks.

Guangda pursues excellence & innovation with tight quality control & the most advanced technology in the industry.

All products are manufactured with the most advanced and modern equipment of PAMA,Gleason,Danobat,

Kehren,Nicolas,Pierto carnaghi and efficient technical team with an emphasis on cost effective production.

Guangda has deep and long cooperation with NGC ,Voith ,Flender and ZF for supplying the gear box parts . In Chinese market, Guangda wind turbine gear steel ranks first in China for the capacity, quality and market share .And Guangda is the largest supplier to the world's top three customers NGC,ZF and Siemens for the gear box parts.
