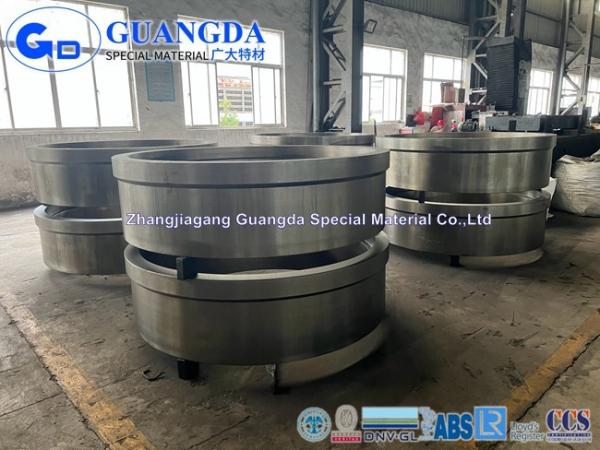

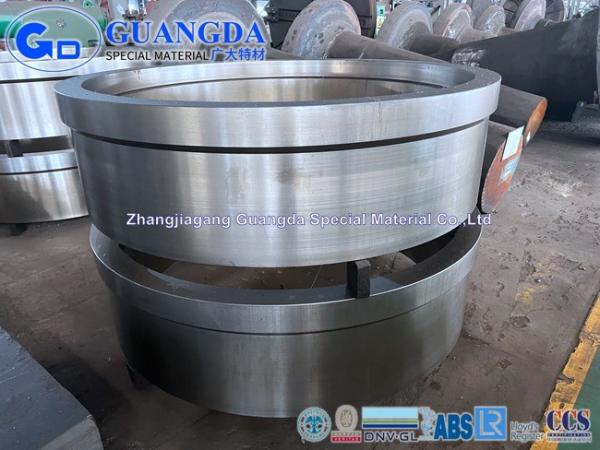

Large Ring Gear Blank Heavy Steel Forgings 42CrMo4 Diameter Max 6300mm
Large Ring Gear Blank Heavy Steel Forgings 42CrMo4 Diameter Max 6300mm
Large Ring Gear Blank Heavy Steel Forgings 42CrMo4 Diameter Max 6300mm
Large Ring Gear Blank Heavy Steel Forgings 42CrMo4 Diameter Max 6300mm
Large Ring Gear Blank Heavy Steel Forgings 42CrMo4 Diameter Max 6300mm
Large Ring Gear Blank Heavy Steel Forgings 42CrMo4 Diameter Max 6300mm
Specifications
Brand Name :
Guangda
Certification :
DNV, BV, Rina, ISO, GL, ABS, LR ,CCS ,PED
Place of Origin :
Jiangsu China
Payment Terms :
D/P, L/C, D/A, T/T
Delivery Time :
15-45 work days
Product name :
Large Ring Gear Blank
Material :
18CrNiMo7-6,17CrNiMo6,18CrNiMo7 etc
Type :
Forging
Diameter :
max 6300mm
Supply condition :
Rough material ,semi-finished ,finished machining
Heat treatment :
Normalizing, QT, annealing, carburizing, nitriding
Description

Large Ring Gear Blank Gear Blank Forgings 42CrMo4


Guangda supply high quality large forged ring blank or semi-finished or finished parts for shaft manufacture. Heat treatment and rough machining are available from our company. We can offer forged rings that can be customized according to your shape, size, and material.

Ring gear blank Heavy Steel Forgings Specification

Application Crusher shaft blank
Diameter φ150mm-63000mm
Smelting EAF+LF+VD
UT SEP1921,EN10228-3 C/c D/d
Heat treatment Normalized , queching and tempering ,stress relief (if needed )+others
Delivery condition Rough ,Semi-finished ,finished
Standard EN10250,EN10083,SEW550 etc.
Equiment 5000T pressing machine

Ring gear blank Heavy Steel Forgings Material we could provide

Type Material
Carbon steel C15,C22,C25,C30,C35,C40,C45,C50,C55,C60,S355J2G3 etc.
Alloy steel

25CrMo4,42CrMo(S)4,AISI4130,AISI4140,AISI4150,34CrNiMo6,30CrNiMo8,31CrMoV9,

18CrNiMo7-6,16MnCr(S)5,20MnCr(S)5,51CrV4,20MnCr5,20CrMnMoH etc.
Stainless steel 630 17-4PH,630 17-7PH, 632 15-7MoPH,XM12 15-5PH,2205,2507,F55,2205 etc.
Tool and die steel H11-1.2343,H13-1.2344, 1.2738,1.2718 ,1.2343, 1.2312 ,XPM , NAK80, DVA etc.
Special steel GH2132, GH3030, GH3128, GH4145 ,GH4169 ,GH4080 ,Inconel600 ,
Inconel601 ,Inconel625 ,Inconel718 N07718 / GH4169, Inconlex - 750, Incoloy800H,Incoloy825,Incoloy901,Incoloy925,Incoloy926 etc.

Ring gear blank Heavy Steel Forgings Forgings Test

  • Chemical composition
  • Hardenability
  • Reduction ratio
  • Heat treatment process
  • Grain size and microstructure
  • Cleanliness
  • Hardness test
  • Mechanical test
  • UT

About Guangda

Guangda is a specialized in forging research and development, production, sales, service as one of the comprehensive company. We could provide rough blank or semi-finishing or finishing parts focuses on large forging equipment.We have formed a whole industrial chain of smelting, casting, machining and surface treatment, and our technology and cost control are leading in the world.
