High Strength Carburized Carbon Round Bar 18Cr2Ni4WA Die Steel
High Strength Carburized Carbon Round Bar 18Cr2Ni4WA Die Steel
High Strength Carburized Carbon Round Bar 18Cr2Ni4WA Die Steel
High Strength Carburized Carbon Round Bar 18Cr2Ni4WA Die Steel
High Strength Carburized Carbon Round Bar 18Cr2Ni4WA Die Steel
High Strength Carburized Carbon Round Bar 18Cr2Ni4WA Die Steel
Specifications
Brand Name :
Guangda
Certification :
DNV, BV, Rina, ISO, GL, ABS, LR ,CCS ,PED
Place of Origin :
Jiangsu China
Payment Terms :
L/C, D/A, D/P, T/T
Supply Ability :
500000 ton/year
Delivery Time :
15-45 work days
Material :
AISI5140 40Cr DIN1.7035 1.7045 41Gr4 42Gr4
Heat treatment :
Annealing,Normalizing,Tempering ,QT etc .
Standard :
EN10250,EN10083,SEW550 etc
Shape :
Round, flat, hexagonal, block, etc
Surface :
Black, turned , rough turnned ,premachined,polish
Length :
Max 10000mm (10m)
Diameter :
φ150-1500mm
Trade Mark :
GD
Description

18Cr2Ni4WA Round Steel Die Steel High Strength Carburized Steel Carbon Steel Bar

18Cr2Ni4W is a high strength medium alloy carburizing steel. To make the C compound and austenite content does not exceed the standard can be used after carburizing high temperature tempering 900~920℃ carburizing, 600~650 tempering, cryotreatment, oil quenching hardness is about 48, want to achieve HRC58-63, must be surface carburizing.


Forged round bar 18Cr2Ni4WA Product features

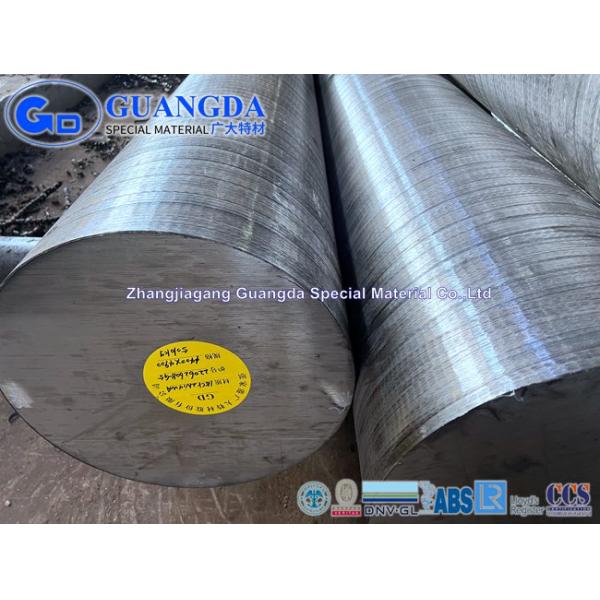

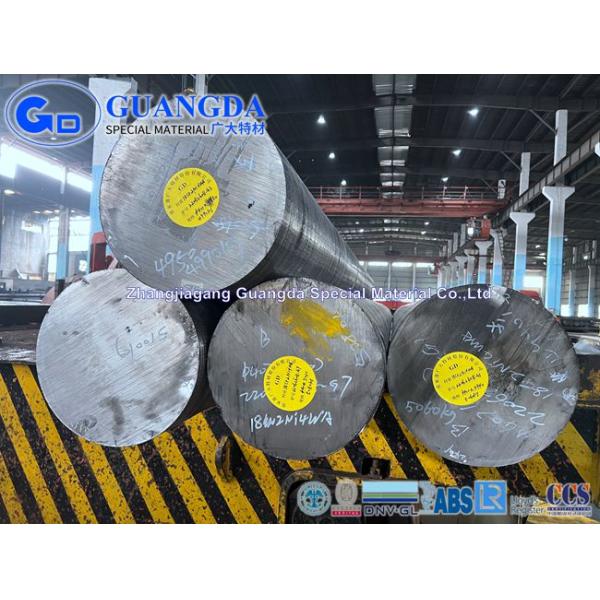

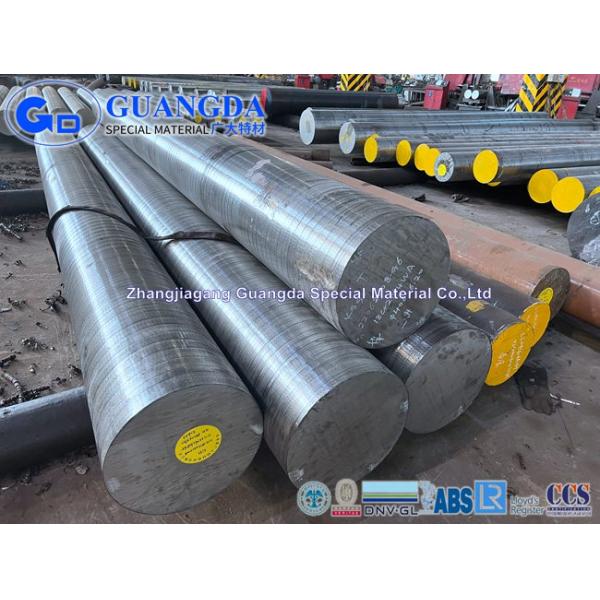

Material: 18Cr2Ni4WA round bar steel hot forged , forged steel bar
Diameter: φ150-1500mm
Length: Max 10000mm (10m)
Process: EAF + LF + VD + Forged + Heat Treatment (optional)
Delivery condition: Hot forged ,Rough machined (black surface after Q/T), Turned ,peeled, polishing, bright, sand blast
Delivery Time: 15-45 days
Heat treatment: Normalized / Annealed / Quenched / tempered
Technical Data: According to the customer's requirement of Chemical Composition, Physical Properties and Mechanical Testing
Grain size

≥5
Application: Gear and shaft, worm, spindle, connecting rod bolts


Forged round bar 18Cr2Ni4WA Chemical Compostion for reference

Material C Si Mn Cr Mo Ni W B Al
18Cr2Ni4W 0.13-0.19 0.17-0.37 0.30-0.60 1.35-1.65 - 4.00-4.50 0.80-1.20 - -

Forged round bar 18Cr2Ni4WA Application


Used for making important parts under high load, can also be used as carburizing surface quenching material; It can also be used to make cold drawn seamless steel pipe or extruded seamless steel pipe. After quenching and tempering, the steel has higher fatigue limit and multiple impact resistance, and good machinability. Poor weldability (preheat before welding). Cracks are easy to form during heat treatment. It is mainly used to manufacture various transmission parts and various structural parts with large cross section in heavy duty machinery under large stress and impact. Such as gear and shaft, worm, spindle, connecting rod bolts etc.

About Guangda For forged round bar

  1. Directly manufactuer -- One stop for quality forged round bars
  2. Sold more than 100k tons for the round bars per year for overseas market.
  3. Register the exclusive trademark of GD in Europe.
  4. Experience for more than 10 years with quick delivery time and fast service.
  5. Listed company. Strong scientific research ability , Strength for Market experience and customer service .
  6. Certificate PED,DNV, BV, Rina, ISO, GL, ABS, LR etc.
