Forged Rolls Large Shaft Machining Heavy Duty Shaft factory
Forged Rolls Large Shaft Machining Heavy Duty Shaft factory
Specifications
Brand Name :
Guangda
Certification :
DNV, BV, Rina, ISO, GL, ABS, LR
Place of Origin :
Jiangsu China
Payment Terms :
T/T, L/C, D/P, , D/A
Supply Ability :
5000pcs/year
Delivery Time :
30-60days
Packaging Details :
Standard sea freight delivery packing
Material :
Carbon Steel, Alloy Steel, Stainless Steel
Type :
Forging
Transport Package :
Wooden or Steel Frame Crate Packing
Production Capacity :
300000ton/year
Diameter :
Max 1500mm
Heat treatment :
Normalizing, QT, annealing, carburizing, nitriding
Description

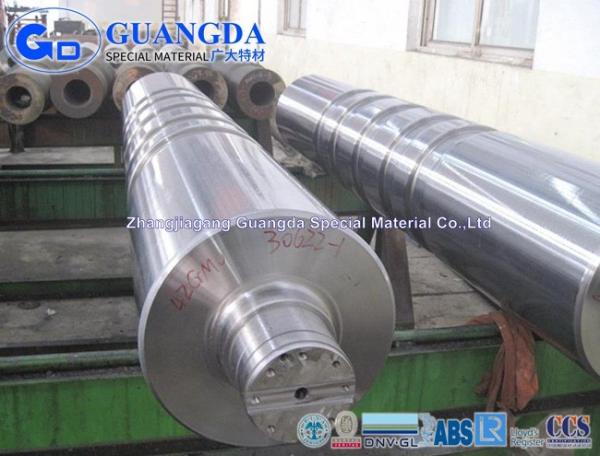

Forged Rolls Large Shaft Machining Heavy Duty Shaft Factory

Guangda provides comprehensive shaft manufacturing with our team overseeing the process from start to finish, ensuring precision and quality of results and customer satisfaction. No matter the complexity or exacting the requirements, Guangda can manufacture custom shafts that meet OEM standards, tight tolerances, and fast turnaround time. With in-house engineering team, experienced machinists, and transportation services, we can provide cost effective and fast shaft manufacturing that can return your critical shaft back in operation within your project timeline.




Forged shaft large shaft machining products features

Application Large Motors and Generators
Smelting EAF+LF+VD
UT SEP1921,EN10228-3 C/c D/d
Heat treatment Normalized , queching and tempering ,stress relief (if needed )+others
Delivery condition Rough ,Semi-finished ,finished
Standard EN10250,EN10083,SEW550 etc.
Equiment 5000T pressing machine

Forged shaft large shaft machining Material

Type Material
Carbon steel C15,C22,C25,C30,C35,C40,C45,C50,C55,C60,S355J2G3 etc.
Alloy steel

25CrMo4,42CrMo(S)4,AISI4130,AISI4140,AISI4150,34CrNiMo6,30CrNiMo8,31CrMoV9,
18CrNiMo7-6,16MnCr(S)5,20MnCr(S)5,51CrV4,20MnCr5,20CrMnMoH etc.
Stainless steel 630 17-4PH,630 17-7PH, 632 15-7MoPH,XM12 15-5PH,2205,2507,F55,2205 etc.
Tool and die steel H11-1.2343,H13-1.2344, 1.2738,1.2718 ,1.2343, 1.2312 ,XPM , NAK80, DVA etc.
Special steel GH2132, GH3030, GH3128, GH4145 ,GH4169 ,GH4080 ,Inconel600 ,
Inconel601 ,Inconel625 ,Inconel718 N07718 / GH4169, Inconlex - 750, Incoloy800H,Incoloy825,Incoloy901,Incoloy925,Incoloy926 etc.



Forged shaft large shaft machining Core advantage

Completed supply chain Guangda is an leading and integrated steel manufacturer from smelting, forging, heat treatment to precision smart manufacturing .
Quality control Guangda achieved completely whole process supply from raw materials to finished products for the wind turbine spindle.
Main products wind power, hydroelectric, thermal, nucler power), milling, oil and gas, shipping equipment, pressure machine, machinery, military, aerospace industries. etc.
Annual Capacity 5000pcs
Customer base Cooperate with the most of the 10 world top wind turbine manufacturers and other world's leading high-end wind turbine manufacturers to establish a good strategic cooperation.
Listed company Strong scientific research ability , Strength for Market experience and customer service .
Certificate PED,DNV, BV, Rina, ISO, GL, ABS, LR etc.



Forged shaft large shaft machining used for other industry

  • Main shaft for mine equipment
  • Crusher equipment shaft
  • Suger making equipment shaft
  • Wind power main shaft
  • Water turbine shaft
  • Roller shaft
  • Marine shaft
  • Gear shaft
  • Hydropress driving shaft
  • Transmission pinion shaft
  • Shaft coupling
  • Cement machinery shaft
  • Shafts according to customer's drawings
  • Motor and generator shaft
  • Different kinds of roller for equipment


Forged shaft large shaft machining About Guagnda

Zhangjiagang Guangda Special Material Co.,Ltd was established in 2003, is one of the forging manufacturer for research and development, production, sales, service as one of the comprehensive company. We located in Jiangsu Province besides Shanghai. We provide different forgings of shaft ,gear blank , ring rolling, rough machining, heat treatment and finish machining. Our annual production capacity is 500,000 tons for various of free-die forgings, ring rollings .

We are qualified by the classifications such as PED,DNV, BV, Rina, ISO, GL, ABS, LR .Act as the high-tech enterprises with high-quality special alloy materials as the core business belong to the "advanced iron and steel materials" industry under the strategic emerging industries supported by the state.

There are two major product systems of alloy materials and alloy products:The alloy materials include high quality gear steel, high quality die steel, special stainless steel, high temperature alloy, ultra-high strength steel and other new material products encouraged by the state; Alloy products mainly include wind power equipment, rail transit and various precision mechanical parts made of alloy materials.

Guangda forgings are widely used in high-end equipment manufacturing industries such as new energy wind power, rail transit, mechanical equipment, aerospace, new energy power, gas turbine, Marine petrochemical, semiconductor chip equipment and so on.


Smelting

Forged Rolls Large Shaft Machining Heavy Duty Shaft factory

Forging
Forged Rolls Large Shaft Machining Heavy Duty Shaft factory

Heat treatment
Forged Rolls Large Shaft Machining Heavy Duty Shaft factory

Machining
Forged Rolls Large Shaft Machining Heavy Duty Shaft factory

Forged Rolls

Large Shaft Machining

Heavy Duty Shaft
