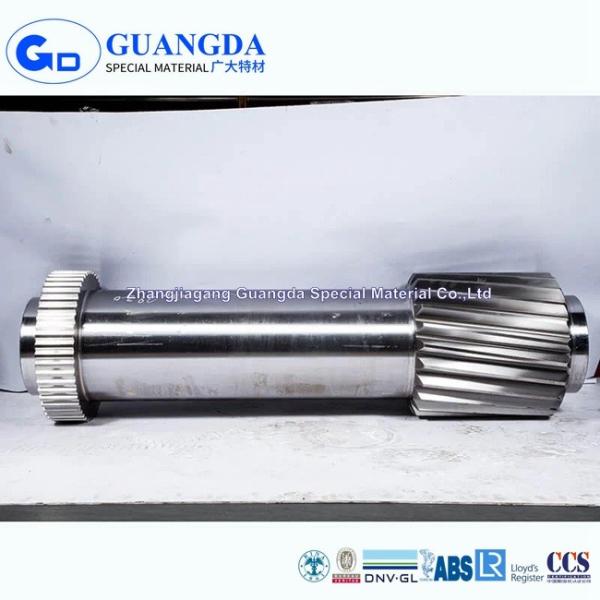

Sun Shaft Of Gear Box Precision Machining Parts Customized

In shaft drive gearboxes, the sun gear drives the surrounding planetary gears which are housed in a rotating carrier. The ring gear is held stationary with the rotating carrier delivering drive to the shaft. The housing of the gearbox is fixed directly to the machine with the output being a rotating shaft.


Gear Box Parts Sun shaft Specification

Power Transmission Gears Specification

External Gears and external splines
	Milling	Hobbing	Shaping	Tooth grinding
Max O.D	5000mm	1200mm	2000mm	5000mm
Max face width	2200mm	1600mm	1100mm	2200mm
Max module	M35	M35	M24	M40
AGMA leval/DIN leval	DIN3962 CLASS 7	DIN3962 CLASS 7	DIN3962 CLASS 8	DIN3962 CLASS 3
Tooth surface finishing	Ra3.2	Ra3.2	Ra3.2	Ra0.4
Max helix angle	+30°/-45°	±45°	0°	±45°

Internal gears and internal splines
	Milling	Shaping	Tooth grinding
Max O.D.	5000mm	2400mm	5000mm
Max Face Width	2200mm	1100mm	2200mm
Max module	M35	M24	M35
AGMA leval/DIN leval	DIN3962 CLASS 8	DIN3962 CLASS 8	DIN3962 CLASS 4
Tooth Surface finishing	Ra3.2	Ra3.2	Ra0.4
Max helix angle	+30°/-45°	0°	±45°

Power Transmission Gears we could provide

	Planetary Gear Planetary gears, also called epicyclic gear trains, are used in complex applications that require smooth torque transmission, such as drivetrains and automotive transmissions. The spur gear used by planetary gears is called a “sun spur,” which is surrounded by three-plus exterior gears called planet gears
	Internal Gear Planetary gears, also called epicyclic gear trains, are used in complex applications that require smooth torque transmission, such as drivetrains and automotive transmissions. The spur gear used by planetary gears is called a “sun spur,” which is surrounded by three-plus exterior gears called planet gears
	Spur Gear The spur gear, also called a straight-cut gear, is the simplest type of gear available. Straight-sided along the gear wheel’s axis, with straight teeth in line with the axis. Other types of spur gears transmit motion and torque laterally through compatibility with other parallel aligned gears. Such gears are main components in planetary gears.
	Spline Gear Spline gears are either cylindrical or rod-shaped with straight teeth that allow them to transmit motion laterally by fitting inside internal devices or gears.
	Helical Gear Helical gears are fast rotating gears capable of supporting heavy loads efficiently and smoothly. They feature teeth inclined towards the axis of the shaft and positioned like a helix, thus the name. Quieter than many other gears, including spur gears, helical gears are popular with applications that feature both radial loads and thrust loads.
	Double helical gear Double helical gears are a type of helical gear that has two helical faces next to each other with a gap between them. The helix angles on each face are identical but opposing. The use of a twin helical gear set lowers thrust loads and allows for even more tooth overlap and smoother operation.

Gear Box Parts Sun shaft Specification Application

Gear Box Parts Sun shaft Specification Test

• Chemical composition
• Hardenability
• Reduction ratio
• Heat treatment process
• Grain size and microstructure
• Cleanliness
• Hardness test
• Mechanical test
• UT

About Guangda

Guangda is a leading manufacturer of gear box parts of the manufacturing specializing in gear box parts forging and precision machined and custom solutions in a variety of sizes and types. We provide different kind of products for the gear box parts including planet shaft ,sun shaft ,planet gear, internal ring gear, planet carrier ,head cover ,turque arm etc.

Guangda pursues excellence & innovation with tight quality control & the most advanced technology in the industry.

All products are manufactured with the most advanced and modern equipment of PAMA,Gleason,Danobat,Kehren,

Nicolas,Pierto carnaghi and efficient technical team with an emphasis on cost effective production.

Guangda has deep and long cooperation with NGC ,Voith ,Flender and ZF for supplying the gear box parts . In Chinese market, Guangda wind turbine gear steel ranks first in China for the capacity, quality and market share .And Guangda is the largest supplier to the world's top three customers NGC,ZF and Siemens for the gear box parts.
