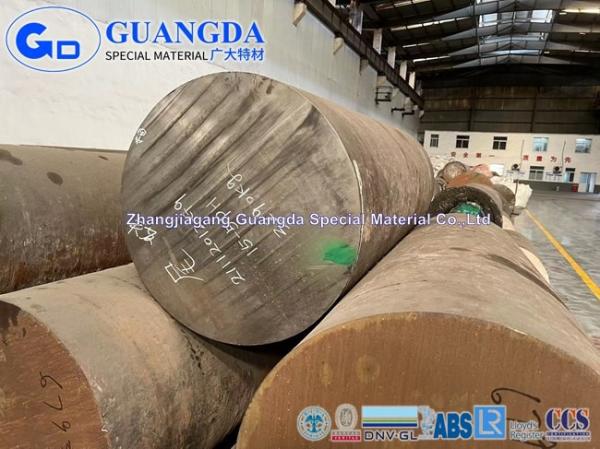

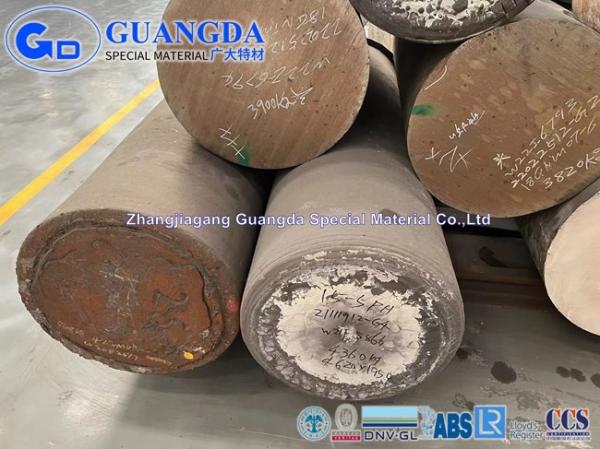

15-5PH 1.4545 Stainless Steel Forging Ingot 15-5PH Block 15-5PH Stainless Bar ESR
15-5PH 1.4545 Stainless Steel Forging Ingot 15-5PH Block 15-5PH Stainless Bar ESR
15-5PH 1.4545 Stainless Steel Forging Ingot 15-5PH Block 15-5PH Stainless Bar ESR
15-5PH 1.4545 Stainless Steel Forging Ingot 15-5PH Block 15-5PH Stainless Bar ESR
15-5PH 1.4545 Stainless Steel Forging Ingot 15-5PH Block 15-5PH Stainless Bar ESR
15-5PH 1.4545 Stainless Steel Forging Ingot 15-5PH Block 15-5PH Stainless Bar ESR
15-5PH 1.4545 Stainless Steel Forging Ingot 15-5PH Block 15-5PH Stainless Bar ESR
15-5PH 1.4545 Stainless Steel Forging Ingot 15-5PH Block 15-5PH Stainless Bar ESR
Specifications
Brand Name :
Guangda
Certification :
DNV, BV, Rina, ISO, GL, ABS, LR ,CCS ,PED
Place of Origin :
Jiangsu China
Payment Terms :
L/C, D/A, D/P, T/T
Supply Ability :
500000 ton/year
Delivery Time :
15-45 work days
Material :
15-5PH stainless steel
Heat treatment :
Annealing,Normalizing,Tempering ,QT etc .
Standard :
EN10250,EN10083,SEW550 etc
Shape :
Round, flat, hexagonal, block, etc
Surface :
Black, turned , rough turnned ,premachined,polish
Length :
Max 10000mm (10m)
Diameter :
φ150-1500mm
Description

15-5PH 1.4545 Stainless Steel Ingot , 15-5PH Block , 15-5PH Stainless Bar ESR

15-5PH grade is a martensitic precipitation and age hardening stainless steel with high strength and hardness together with excellent corrosion resistance. The chemical analysis is balanced to give a minimum of delta ferrite, thus allowing superior transverse toughness and ductility, plus good forgeability. The fabrication characteristics of 15 – 5 PH are similar to those of other precipitation hardening grades; they can be age hardened by a single step, low temperature treatment.

15-5PH stainless steel Product features

Material 15-5PH stainless steel
Type Forged bar ,round ,square, flat, block, shaft etc.
Diameter φ150-1500mm
Length Max 10000mm (10m)
Surface Black, peeled, polishing, bright, sand blast, hair line, etc.
Application valve parts, fittings and fasteners, forged shafts and gears, engine parts, chemical process equipment, paper mill equipment, and components for aircraft and nuclear reactors.
Tensile strength test DIN EN ISO 6892-1
Impact test DIN EN ISO 148-1
UT DIN EN10228 Quality-Class 3 C/c or D/d
Grain size ASTM E112 / EN ISO 643
Applicable standard EN10250,EN10083,SEW550 etc
Certificate EN 10204 / 3.1 3.2


15-5PH stainless steel Chemical Compostion

Grade Fe Cr Ni Cu Mn Si Nb C Mo
15-5PH Balance 14.00-15.50 3.50-5.50 2.50-4.50 max 1.00 max 1.00 max0.45 max0.07 max0.05

15-5PH stainless steel Application:

15-5PH stainless steel could be used for valve parts, fittings and fasteners, forged shafts and gears, engine parts, chemical process equipment, paper mill equipment, and components for aircraft and nuclear reactors.

  • Fasteners
  • Oil & Gas applications
  • Power generation
  • Valves, gears and pumps
  • Food processing
  • Surgical instruments and tools
  • Valves and fittings
  • Pumps and impellers
  • Manifolds
  • Industrial and chemical
  • Tooling

About Guangda Stainless Steel forgings

Zhangjiagang Guangda Special Material Co.,Ltd was established in 2003, is one of the forging manufacturer for research and development, production, sales, service as one of the comprehensive company. We located in Jiangsu Province besides Shanghai. We provide different forgings of shaft ,gear blank , ring rolling, rough machining, heat treatment and finish machining. Our annual production capacity is 500,000 tons for various of free-die forgings, ring rollings .

We are qualified by the classifications such as PED,DNV, BV, Rina, ISO, GL, ABS, LR .Act as the high-tech enterprises with high-quality special alloy materials as the core business belong to the "advanced iron and steel materials" industry under the strategic emerging industries supported by the state.

Guangda is a specialized in forging research and development, production, sales, service as one of the comprehensive company. We could provide rough blank or semi-finishing or finishing parts focuses on large forging equipment. We have formed a whole industrial chain of smelting, casting, machining and surface treatment, and our technology and cost control are leading in the world.

Stainless Steel forgings of the mamufacture line

Company type Science and Technology innovation board listed company.
Stock code :688186
Completed supply chain Guangda is an leading and integrated steel manufacturer from smelting, forging, heat treatment to precision smart manufacturing .
Shape Ring, Shaft, disc, round plate, Dysplasia forgings etc.
Smelting Smelting capacity 500,000.00 ton/year . With own smeliting line of carbon steel,stainless steel, alloy steel and special steel .
Annual capacity for the forgings Forging capacity 300,000.00 ton/year . With own professinal forging press machines 5000ton,4500ton,4000ton,3600ton,2000ton,1000ton and ring rolling mill machines and could manufacture the forging blank ourselves.
Max length/Diameter 12m
Max weight 60T
Machining Turning, milling, boring ,grinding, finished machining, gear shaping ,gear hobbing, gear grinding capability.
Heat treatment Normalizing, QT, Soft annealed, Stress relieved, annealing, carburizing, Isothermally annealed, nitriding with complete heat treatment capacity
Surface treatment High-pressure cleaning, sand blasting and thermal spraying. Complete surface treatment capability.
QC Certificate PED,DNV, BV, Rina, ISO, GL, ABS, LR etc.
