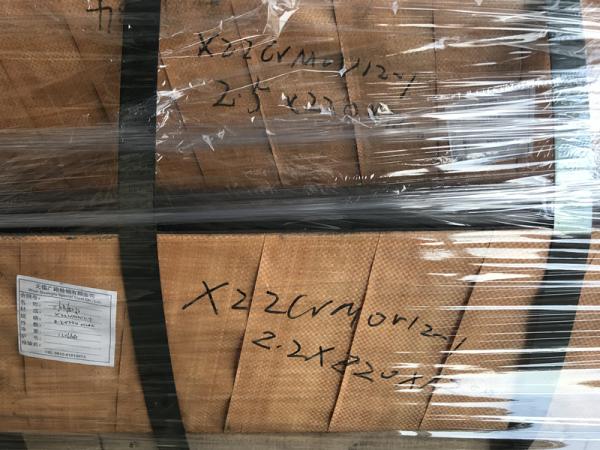

Material 1.4923 Strip X22CrMoV12-1 Stainless Steel Sheet ( Plate )
Material 1.4923 Strip X22CrMoV12-1 Stainless Steel Sheet ( Plate )
Material 1.4923 Strip X22CrMoV12-1 Stainless Steel Sheet ( Plate )
Material 1.4923 Strip X22CrMoV12-1 Stainless Steel Sheet ( Plate )
Material 1.4923 Strip X22CrMoV12-1 Stainless Steel Sheet ( Plate )
Material 1.4923 Strip X22CrMoV12-1 Stainless Steel Sheet ( Plate )
Specifications
Brand Name :
Daway
Model Number :
1.4923, X22CrMoV12-1
Certification :
SGS
Place of Origin :
China
MOQ :
1 tons
Price :
negotiable
Payment Terms :
L/C, T/T
Supply Ability :
200 tons per month
Delivery Time :
15 days after receipt 30% of value
Packaging Details :
seaworthy
Martensitic grade :
EN 1.4923 DIN X22CrMoV12-1 stainless
Product :
Material 1.4923 Strip X22CrMoV12-1 Stainless Steel Sheet ( Plate )
Size :
0.3~20.0X300mm
Delivery state :
annealed
Description

Material 1.4923 Strip X22CrMoV12-1 Stainless Steel Sheet ( Plate )

X22CrMoV12-1 (1.4923)

This chromium-molybdenum-vanadium steel according to DIN EN 10269 that can be

quenched and tempered has proved very well for the use of heat-resistant disc springs.

EN 10302: 2008 Creep resisting steel, hardened and tempered.

Usual upper temperature limit for continuous operating 580°C.

Components featuring elevated high-temperature strength for use in thermal engines and power plants,

such as turbine blades, turbine discs, screws, bolts, pins and shafts.

EN / DIN BS AFNOR SIS

1.4926, X21CrMoV12-1

1.4923, X22CrMoV12-1

1.4922, X20CrMoV12-1, X20CrMoV11-1

~ 1.4934 LW

 762 Z21CDV12 2317

Chemical composition %, average

C Si Mn Cr Mo Ni V
0.22 0.25 0.70 11.40 0.95 0.70 0.30

Applications

Components featuring elevated high temperature strength for use in thermal engines and power plants, such as

turbine blades, turbine discs, screws, bolts, pins and shafts.

Heat treatment

Annealing

730 - 780°c / cooling in furnace

Stress relieving

600 - 680°c / cooling in furnace

Hardening

1020 - 1060°c / Oil, air

Tempering

I ... 700 - 780°c / Air

II ... 670 - 750°c / Air

For Details, please Contact

WUXI GUANGLU Special Steel Co., Ltd.

Stainless martensitic • precipitation hardening steel • stainless ferritic — Our answer to your needs

Tel: +86 510 81812873

Email: export@guanglusteel.com

Material 1.4923 Strip X22CrMoV12-1 Stainless Steel Sheet ( Plate )
