Specifications
Brand Name :
GX
Model Number :
GXWWM-farm fence
Certification :
ISO9001
Place of Origin :
Hebei, China
MOQ :
10 rolls
Payment Terms :
L/C, T/T, Western Union, D/A, D/P
Supply Ability :
1000 Roll/Rolls per Week
Delivery Time :
15-25 days
Packaging Details :

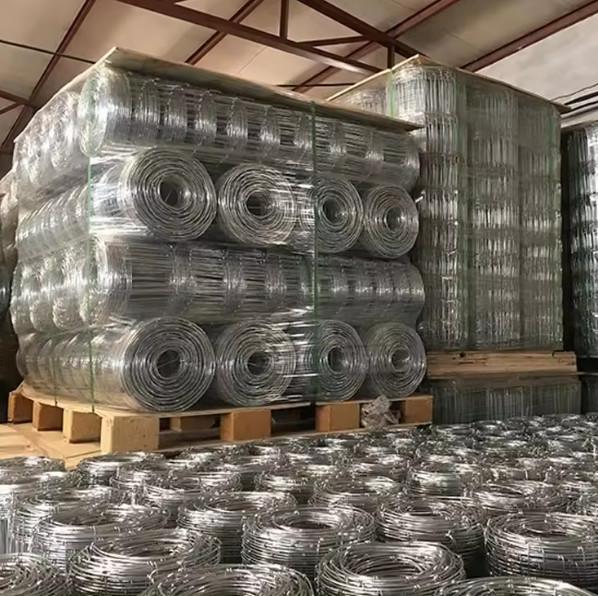

plastic film, wooden pallet,bulk
Description

Filed fence also can be called the cattle fence, grassland fence, sheep fence, farm fence,etc. It is with the great toughness, prevent slippery, compressive strength, corrosion resistance, windproof, rainproof regardless of how bad the natural conditions. Besides, it can ensure the service life up to decades years.

Brief Introduction
Name
field fence,cattle fence, grassland fence, sheep fence, farm fence
Material
Electro galvanized iron wire, Hot dipped galvanized iron wire, High tensile steel wire
Surface Treatment
hot-galvanized,cold-galvanized
Application
Field fence is a kind of mesh used in cattle, goat, deer, and pig. It is used for grassland, pastures,protection of ecological projects, protecting grassland, forestry, highway, etc.
Features
Simple in structure, Easy maintenance, Short installation period, Less weight, Easy for transport,and Good ventilation.
Zinc coating
normally 60-100g per square meter, max 230-240g per square coating
Diameter
1.8-2.5mm(, inner wire ) 1.8-3.5mm( outer wire)
Height
0.8m, 0.9m, 1.0m, 1.1m, 1.2m, 1.5m,1.8m,2m,2.4m
Length
25m-200m
Specification for Field Fence
No.
Specifications and Hole Sizes
Gross Weight (kg)
Top and Bottom Wire Dia.(mm)
Inner Wire Dia.(mm)
Type
Specifications(the incremental vertical hole sizes)
1
7/150/813/50
102+114+127+140+152+178
19.3
2.5
2
2
8/150/813/50
89(75)+89+102+114+127+140+152
20.8
2.5
2
3
8/150/902/50
89+102+114+127+140+152+178
21.6
2.5
2
4
8/150/1016/50
102+114+127+140+152+178+203
22.6
2.5
2
5
8/150/1143/50
114+127+140+152+178+203+229
23.6
2.5
2
6
9/150/991/50
89(75)+89+102+114+127+140+152+178
23.9
2.5
2
7
9/150/1245/50
102+114+127+140+152+178+203+229
26
2.5
2
8
10/150/1194/50
89(75)+89+102+114+127+140+152+178+203
27.3
2.5
2
9
10/150/1334/50
89+102+114+127+140+152+178+203+229
28.4
2.5
2
10
11/150/1422/50
89(75)+89+102+114+127+140+152+178+203+229
30.8
2.5
2

Reminder:

1:the first data in type is the NO. of line wire;the second data is horizontal hole size(mm);the thrid data is the height of the fence(mm);the fourth data is the total length of each roll(mm)

2:Height of fence is from 0.8m up to 2.0m, length is 50m 100m or 200m per roll.

3:Surface treatment can be made with electro galvanized or hot-dip galvanized, hot-dip galvanized cheap horse fence panels is much more durable.

4:Special size can be customized.

Hog wire farm fencing, horse fencing,Factory Direct china rural farm fencing
Reminder: pefore quotation, we need to confrim the wire diameter,weaving width,length,weft opening,line opening data first.
Application&Feature

Application

1.Livestock fencing and confinement

2.Crop protection.
3.Erosion control silt fence backing

4.Garden fencing.
5.Land fencing and side line dividers.

Hog wire farm fencing, horse fencing,Factory Direct china rural farm fencing
