98% Efficiency High Classification Air Classifier for Barite Powder 2750 KG Capacity
98% Efficiency High Classification Air Classifier for Barite Powder 2750 KG Capacity
98% Efficiency High Classification Air Classifier for Barite Powder 2750 KG Capacity
98% Efficiency High Classification Air Classifier for Barite Powder 2750 KG Capacity
98% Efficiency High Classification Air Classifier for Barite Powder 2750 KG Capacity
98% Efficiency High Classification Air Classifier for Barite Powder 2750 KG Capacity
98% Efficiency High Classification Air Classifier for Barite Powder 2750 KG Capacity
98% Efficiency High Classification Air Classifier for Barite Powder 2750 KG Capacity
98% Efficiency High Classification Air Classifier for Barite Powder 2750 KG Capacity
98% Efficiency High Classification Air Classifier for Barite Powder 2750 KG Capacity
98% Efficiency High Classification Air Classifier for Barite Powder 2750 KG Capacity
98% Efficiency High Classification Air Classifier for Barite Powder 2750 KG Capacity
Specifications
Applicable Industries :
Energy & Mining
Showroom Location :
None
Condition :
New
Type :
Magnetic Separator
Production Capacity :
98%
Place of Origin :
shandong
Brand Name :
Guote
Voltage :
220V/380V
Dimension(L*W*H) :
7000*2000*3000 Mm
Weight :
2750 KG
Warranty :
1 Year
Marketing Type :
Ordinary Product
Machinery Test Report :
Provided
Video outgoing-inspection :
Provided
Warranty of core components :
1 Year
Core Components :
Motor
Key Selling Points :
Easy to Operate, Long Service Life
Width :
500-2000mm
Keywords :
Air Classifier
Material :
Steel
Application :
Ore
Capacity :
10-20000t/h
Certification :
ISO:9001
Power :
Power: 15 - 380 kW
Product Fineness :
d97: 3 - 150 micron
Installation :
Engineer instruction and supervision on site
Packaging Details :
Containers or according to customer requirements
Supply Ability :
100 Set/Sets per Month
Price :
$38,800.00/sets 1-4 sets
MOQ :
1 set
Description
Product Description
98% Efficiency High Classification Air Classifier for Barite Powder 2750 KG Capacity

Industrial Collector Fine Powder Cyclone Air Classifier Separator Machine, Classifier Powder Separator Equipment

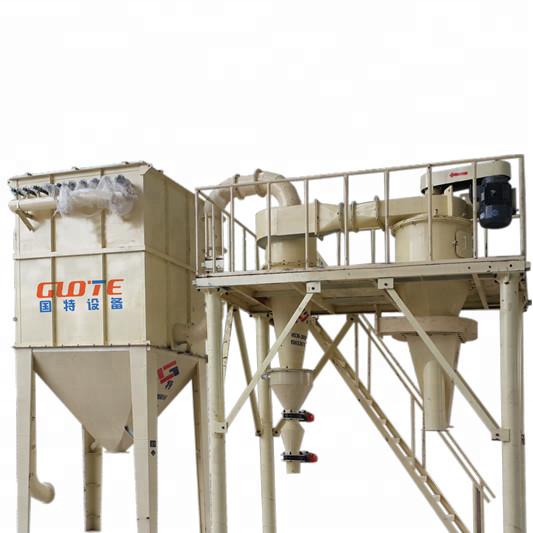

The classifying device is composed of pneumatic classifier, cyclone, collector, induced draft fan, control cabinet and so on.
Equipped with second air inlet and vertical impeller rotor, the materials are fed in visa the bottom roller under the force
generated from the induced draft fan and then mixed with first input air to disperse particle and then brought to classifying
zone. Owing to the high rotary speed of classifying rotor, the particles are under the centrifugal force produced by the
classifying rotor and centripetal force generated from induced draft fan. When the centrifugal force is stronger than the
centripetal force, the coarse particles fall down along inside roller. The second air is induced to sieve the coarse material and separate the fine powder that stick on or mixed with the coarse. After the coarse material is discharged from classifier, the over-milled powder are collected by the cyclone and pulse collector.
98% Efficiency High Classification Air Classifier for Barite Powder 2750 KG Capacity
Product advantages:
1.With special design for classifying structure and its high classifying precision, it can block big granular strictly.
2.To get the required product, you can adjust the rotary speed of classifying wheel and air inlet volume.
3.Single vertical rotor with low speed, steady flow field, high efficiency and robust performance.
4.With multi-series structure, it can get products with different size to meet requirement
98% Efficiency High Classification Air Classifier for Barite Powder 2750 KG Capacity
98% Efficiency High Classification Air Classifier for Barite Powder 2750 KG Capacity
98% Efficiency High Classification Air Classifier for Barite Powder 2750 KG Capacity
98% Efficiency High Classification Air Classifier for Barite Powder 2750 KG Capacity
98% Efficiency High Classification Air Classifier for Barite Powder 2750 KG Capacity
98% Efficiency High Classification Air Classifier for Barite Powder 2750 KG Capacity
Industrial Collector Fine Powder Cyclone Air Classifier Separator Machine, Classifier Powder Separator Equipment the classifying device is composed of pneumatic classifier, cyclone, collector, induced draft fan, control cabinet and so on.
Specification
Model
Capacity(kg/h)
Efficiency of classification
Product Particle Size(um)
Power(kw)
GF010
10-50
70-90%
D97=3-50
7
GF020
50-350
15-19
GF050
100-800
25-30
GF100
300-1500
41-48
GF200
500-4000
63-73
GF400
2000-5000
97-120
GF500
3000-6000
110-130
GF600
4000-8000
140-169
GF800
6000-12000
170-210
GF1200
8000-20000
230-380
Packing & Delivery
98% Efficiency High Classification Air Classifier for Barite Powder 2750 KG Capacity
98% Efficiency High Classification Air Classifier for Barite Powder 2750 KG Capacity
FAQ
Q: Why we believe in Weifang GuoteMining Equipment Company?
A: 1. More than 10 years experience.

Q. We are the leading professional supplier of mining equipments and service for quartz mining equipment industry.
A. All products achieved ISO9001:2000 quality management certificate and EU CE certificate.

Q: Delivery time
A: The lead time is 10-30 days, delivery time will vary depending on the type of the machine, shipping method selected and part
availability.

Q: Payment terms
A: Accepted Payment Type: T/T, L/C, Western Union, Cash.
After sign the contract, pay the 30% deposit of total purchase price and pay the full payment before delivery.

Q: What will you do if the machine is broken down?
A: The Products warranty is one year. We will provide the technical advice and find the solution immediately for you when the
machine is in trouble. For those wear parts, we guarantee the high quality parts for long-term supply.

Q: What should I do if I want to get a best quotation?
A: If you want a suitable type for you, please let us know your material and capacity.
