Specifications
Applicable Industries :
Energy & Mining
Showroom Location :
None
Condition :
New
Type :
Magnetic Separator
Production Capacity :
98%
Place of Origin :
Shandong, China
Brand Name :
Guote
Voltage :
220V/380V
Dimension(L*W*H) :
Diffrent Model
Weight :
1800 KG
Warranty :
1 Year
Marketing Type :
Ordinary Product
Machinery Test Report :
Provided
Video outgoing-inspection :
Provided
Warranty of core components :
1 Year
Core Components :
Motor
Key Selling Points :
Automatic
Capacity :
8t/h
Magnetic Field Intensity :
≥15000GS
Concentration of the Slurry :
10-30%
Belt speed :
2-8r/min
Keywords :
magnetic separator
Feeding size :
0-1.2mm
Price :
$10,000.00/sets >=1 sets
Color :
Customers' Requirements
Feature :
High magnetic field
Certification :
ISO9001:2008
MOQ :
1 set
Description
GTGB Series 4,500-15,000GS Wet Type Permanent Magnetic Seprator
Motor-driven High Separation Neodymium Magnet Separator for Wide Feed Particle Size Range
Products Description
GTGB series permanent high filed strength magnetic flat type magnetic separator is our latest research and development of high gradient and high intensity magnetic separator equipment.

It is mainly used to 1.2 mm fine non-metallic minerals, such as quartz, feldspar and nepheline. Kaolin iron impurities removing purification, can also be used in red iron ore (hematite, limonite and siderite, etc.), manganese ore, ilmenite, wolframite variety of weak magnetic ore wet separation and black and white tungsten separation, black tungsten and tin separation.
Motor-driven High Separation Neodymium Magnet Separator for Wide Feed Particle Size Range

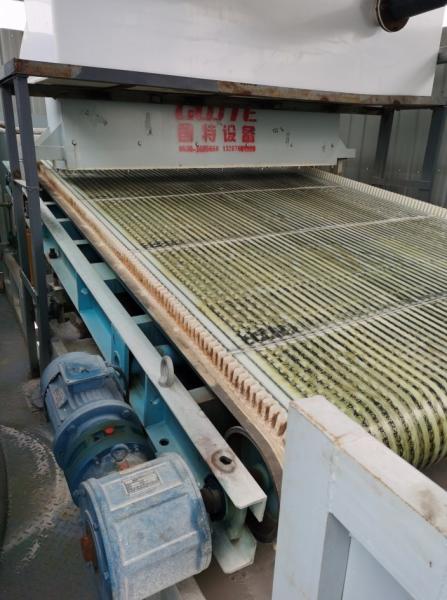

Details Images
Motor-driven High Separation Neodymium Magnet Separator for Wide Feed Particle Size Range
Product Paramenters
Model
Capacity
(t/h)
Magnetic field Intensity
Concentration of the Slurry
Belt Speed
Power
(kw）
Machine Size
GTGB815
8-10
15,000GS

10-30%
2-8
(r/min)
1.1
2500X1500X1400
GTGB1020
10-15
1.5
3000X1600X1400
GTGB1520
15-20
2.2
3000X2000X1500
GTGB2025
20-25
3
4200X2600X1700
GTGB2030
25-30
4
4600X2600X1700
GTGB2030
30-35
4
4900X2600X1900

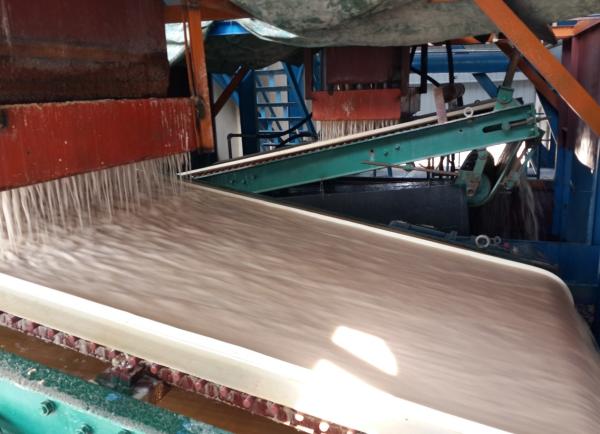

Working principle
Motor-driven High Separation Neodymium Magnet Separator for Wide Feed Particle Size Range
The slurry enters the distribution device of the magnetic separator through the feeding pipe, and after fully dispersed, it is evenly sprinkled on the belt of iron removing which on the upper part of the magnetic plate.
Under the action of gravity, the slurry flows downward along the inclined direction of the magnetic plate.
The ferromagnetic material contained in the slurry is firmly adsorbed on the iron-removing belt under the strong magnetic field provided by the magnetic plate,the motor drive the
belt to move upward along the direction of the magnetic plate, and at the same time, the adsorbed ferromagnetic material is brought into the iron removing area. Washed by the flushing water and get into the tailing hopper for concentrated collection and the non-magnetic slurry continues to flow down the magnetic plate, and the inflow into the concentrate bucket for collection.
Manufacturing Technique
Motor-driven High Separation Neodymium Magnet Separator for Wide Feed Particle Size Range
Outstanding Advantages
1.Selection of high performance NdFeB magnetic materials , the magnetic circuit design is unique, the magnetic filed intensity , the surface magnetic field strength can reach15000Gs.
2.Compared to the other permanent separation of the magnetic field , Large scavenging area of magnetic field , the magnetic separation effect is better.
3.Variable frequency adjustable belt speed , Power saving and energy conservation

4. Automatic cleaning of adsorbed magnetic materials

5.Compared to other high gradient magnetic separator energy saving,power saving
Motor-driven High Separation Neodymium Magnet Separator for Wide Feed Particle Size Range

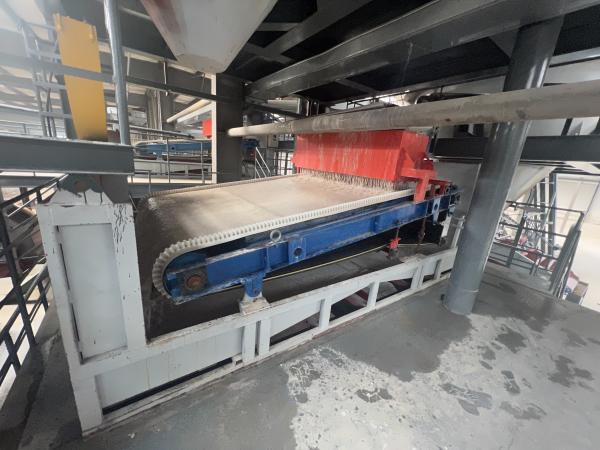

Site Picture 1
Motor-driven High Separation Neodymium Magnet Separator for Wide Feed Particle Size Range
Site Picture 2
Company Profile
Motor-driven High Separation Neodymium Magnet Separator for Wide Feed Particle Size Range
Basic Company Introduction
Weifang guote mining equipment Co.,Ltd. is located in Qingzhou Economic Development Zone, Weifang City, Shandong Province. It covers an area of 40000 square meters. It is a high-tech enterprise in Shandong Province. The company has passed ISO9001 quality system certification, environmental system certification, safety management system certification, EU CE certification and more than ten useful national invention patents.
Motor-driven High Separation Neodymium Magnet Separator for Wide Feed Particle Size Range
About GUOTE
Guote Mining equipment has long been committed to the production of quartz sand, silicon powder, feldspar and oil field fracturing sand special equipment, and provide non-metallic ore production line experiment, design, consulting and the whole line equipment supply;such as：quartz sand making processing line equipment;glass sand making processing line equipment ;quartz powder making machine;sand washing system;drum dryer machine;dewatering screen equipment;vibration screen;scrubber attrition machine;magnetic separator machine...etc...
Motor-driven High Separation Neodymium Magnet Separator for Wide Feed Particle Size Range
Motor-driven High Separation Neodymium Magnet Separator for Wide Feed Particle Size Range
Motor-driven High Separation Neodymium Magnet Separator for Wide Feed Particle Size Range
Motor-driven High Separation Neodymium Magnet Separator for Wide Feed Particle Size Range
Motor-driven High Separation Neodymium Magnet Separator for Wide Feed Particle Size Range
Motor-driven High Separation Neodymium Magnet Separator for Wide Feed Particle Size Range
Certifications
Motor-driven High Separation Neodymium Magnet Separator for Wide Feed Particle Size Range
Motor-driven High Separation Neodymium Magnet Separator for Wide Feed Particle Size Range
Motor-driven High Separation Neodymium Magnet Separator for Wide Feed Particle Size Range
Customer Photos
Motor-driven High Separation Neodymium Magnet Separator for Wide Feed Particle Size Range

About customers：

Our products are very popular at home and abroad, exported to Japan, South Korea,Thailand, Pakistan, Bangladesh, South Africa, India, Indonesia, Brazil, Vietnam, Malaysia and more than a dozen other countries and regions.
