Introduction

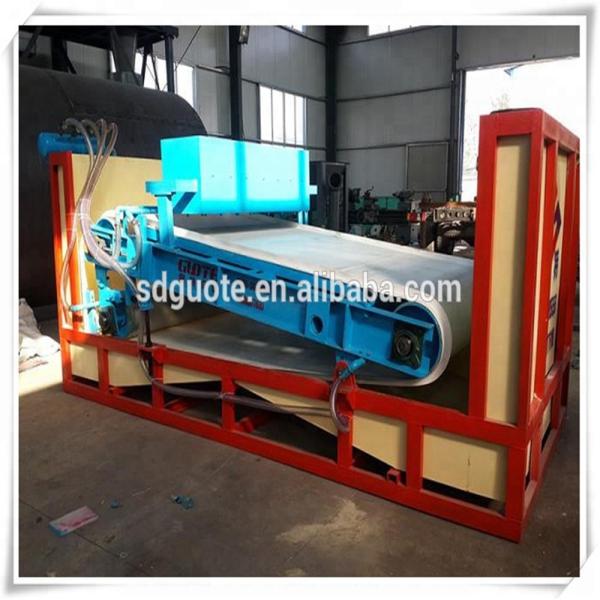

It is independently developed by our company,high gradient and high field intensity magnetic separator.The magnetic system of magnetic separator is made of high quality rare earth magnetic steel.The equipment has a high magnetic field strength,He set up physical mechanics,fluid mechanics,Magnetic mechanics in one.
Some weak magnetic minerals are selected according to the different magnetic properties of ores.

Outstanding Advantages

1. High-performance iron and boron as magnets, the magnetic circuit design is unique, the magnetic field intensity is high, the surface magnetic field strength can reach 15000GS,Enough to compare favourably with high gradient electromagnetic separator.
2. Compared to the other permanent magnetic separation of the magnetic field. Large scavenging area of magnetic field,the magnetic separation effect is better.
3. An adjustable panel slope.adjust the slope according to the material condition,achieve the best iron removal effect.
4. Adjustable belt speed frequency conversion,adjust the belt speed according to the material condition,achieve the best iron removal effect.
5. The conveyor belt is made of wear resistant canvas,the service life of the conveyor belt has greatly increased.
6. compared to other high gradient magnetic separator energy saving, power saving.
7. The equipment is equipped with a uniform feeding device;have magnetic device for automatic cleaning and adsorption of tailings.

Technical Principle

The slurry enters the distribution device of the magnetic separator through the feeding pipe, and after fully dispersed, it is evenly sprinkled on the belt of iron removing which on the upper part of the magnetic plate.
Under the action of gravity, the slurry flows downward along the inclined direction of the magnetic plate. The ferromagnetic material contained in the slurry is firmly adsorbed on the iron-removing belt under the strong magnetic field provided by the magnetic plate, the motor drive the belt to move upward along the direction of the magnetic plate, and at the same time, the adsorbed ferromagnetic material is brought into the iron removing area.
Washed by the flushing water and get into the tailing hopper for concentrated collection and the non-magnetic slurry continues to flow down the magnetic plate, and the inflow into the concentrate bucket for collection.

lntroduction of Working Principle

1 Packaging: Specially made wooden boxes and containers.

2 Shipping: 5-45 days after receiving initial payment.

Pre-sales Service:

Based on customers’ request, the technicians will design drawing and final solution. Mostly, Welcome to visit tour factory, tickets, hotels, food and local tour are provided for every visiting customer.

After-sales Service:

One or more engineers will be sent to the quarry site for installment and training. If any problem happen during use technicians guidance is available by internet or phone.

Weifang GUOTE Mine Equipment co.ltd. Is one professional mineral equipment manufacturer for offering different machines and techinical proposals for quartz & calcium carbonate & feldspar deep processing including crushing,magenetic separation and air-classfier processing. The scope of services related to mining, metallurgy, electric power, coal, glass, paper, chemical building materials, refractory materials, tiles,food, cement ,etc.Our product sell well in more than thirty provinces.

Our main products are : GMF ball mill and air classifier production line,quartz sand making machine, dust collector, water classifier,electromagnetic and permanent magnetic separator,dry wet magenetic separator,washing machine, flotation machine,metal detector, screw conveyor, timing quantitative feeding,weigher and centralized control system, etc.
