Specifications
Brand Name :
Solarsonc
Model Number :
CESS-GXY215
Place of Origin :
JIANGSU
Certification :
CE TUV
MOQ :
1SET
Price :
USD38000-50000/SET
Packaging Details :
wooden box
Delivery Time :
45 days
Payment Terms :
TT
Supply Ability :
10 SET/month
Battery Capacity :
280Ah
Rated power :
100kw
Rated current :
140A
AC power :
100KW
Rated voltage :
380V
Color :
WHITE OR BLACK Or Customized
Max efficiency :
98%
Remote Monitoring :
Real-time Monitoring And Control Capabilities
Description

Product Description:

The Commercial Energy Storage Systems allow users to store excess solar energy generated during the day for use at night or during cloudy days. According to a report by Grand View Research, the global solar battery energy storage market size was valued at USD 6.7 billion in 2020 and is expected to grow at a CAGR of 41.3% from 2021 to 2028.

Energy storage system is an important component and a critical supporting technology for smart grid, renewable energy (wind and solar) power stations and “Internet+” smart energy. It can provide various services for power grid such as peak shaving, frequency regulation, backup, black start and demand response, etc. It is a key method to enhance the flexibility, economy and safety of a traditional power system, and to significantly improve the accommodation for renewable energy such as wind power and solar power.

With an input voltage range of 200-850V and 1 MPPT channel, this energy storage system is capable of handling various types of input sources. The system has a maximum current of 200A and a rated current of 140A, ensuring efficient energy transfer without risking system overload.

The system is rated for a voltage of 380V, making it ideal for industrial and commercial settings. It is designed to provide a consistent and stable power source for applications ranging from factories and warehouses to shopping malls and office buildings.

In conclusion, our Containerized Energy Storage System is a versatile and reliable solution for industrial and commercial energy storage

needs.

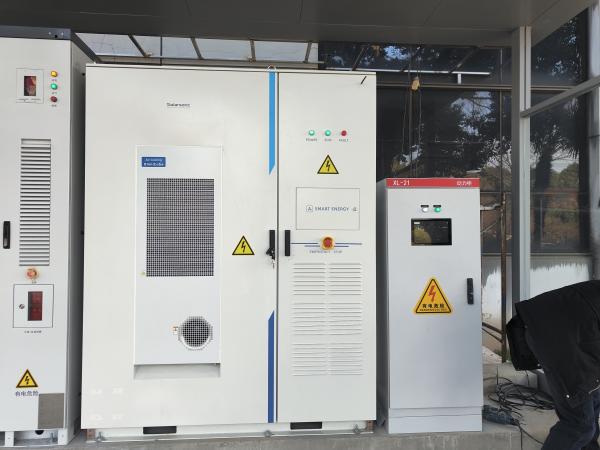

Power 100kW 380V Industrial Energy Storage Solution with 280Ah Battery CapacityPower 100kW 380V Industrial Energy Storage Solution with 280Ah Battery CapacityPower 100kW 380V Industrial Energy Storage Solution with 280Ah Battery CapacityPower 100kW 380V Industrial Energy Storage Solution with 280Ah Battery Capacity

Features:

  • Product Name: commercial and industrial energy storage
  • Backup Power: Provides Backup Power During Outages
  • Battery Capacity: 280Ah
  • Battery efficiency: 95%
  • Max efficiency: 98%
  • Cool Type: Liquid Cooled Or Air Conditional Cooled
  • Energy Storage System Container: Yes
  • All In One Energy Storage System: Yes

Technical Parameters:

Model CESS-GXY215 CESS-GXY200
System Data
Dimensions(W*D*H) 1750*1215*2340 1600*1100*2450
Weight 3 tons 2.5 tons
Operating Temperature -20℃~55℃ -20℃~55℃
Protection Class IP54 IP54
Altitude ≤3000m ≤3000m
Humidity 0~95% 0~95%
System energy efficiency ≥90% ≥90%
Fire Extinguishing Perfluoro Hexanone全氟 Perfluoro Hexanone全氟
Cooling Type Air Cooling Aie Cooling
Anti-Corrosion C3 C3
Certificates CE/TUV/UN38.3 CE/TUV/UN38.3
Communication TCP/IP TCP/IP
Noise Level ≤75dB ≤75dB
Battery Data
Battery Type LFP 280Ah LFP 280Ah
Rated Voltage 768V 716.8V
DC Scale 600~864V 560~806.4V
Rated Capacity 215KWh 200KWh
Rated Power 100KW 100KW
Rated Current 140A 140A
Cycle Life ≥6000 (@25℃,0.5C/0.5C,90%DOD,70%EOL) ≥6000 (@25℃,0.5C/0.5C,90%DOD,70%EOL)
Battery Efficiency 95% 95%
AC Data
AC mode 4P/N/PE 3P/PE
AC Power 100KW 100KW
AC Current 150A 150A
Power Factor -1~+1 -1~+1
Rated Voltage 380V 380V
Harmonic Distortion ≤3% ≤3%
Rated grid frequency 50/60Hz 50/60Hz
PV Data
Rated Power 50KW NC
Input Voltage 200~850V NC
MPPT channels 1 NC
Max. Current 200A NC
Max. Efficiency 98% NC

Applications:

The Solarsonc CESS-GXY200 is an ideal solution for businesses looking to reduce their energy costs and improve energy efficiency. It is perfect for use in industries such as manufacturing, data centers, healthcare, and hospitality. Its compact design allows for easy installation and maintenance, and it comes in either a white or black color, or can be customized to match any branding or aesthetic needs.

In conclusion, the Solarsonc CESS-GXY200 is an excellent choice for businesses looking for a reliable, cost-effective, and energy-efficient industrial and commercial energy storage system.

Its all-in-one design, compact size, and high-quality materials make it an ideal solution for a wide range of applications. Whether you need backup power during outages or want to reduce your energy costs and improve efficiency, the Solarsonc CESS-GXY200 is an excellent choice.

Support and Services:

Our commercial and industrial energy storage product comes with comprehensive technical support and services to ensure optimal performance and efficiency. Our team of experts is available to assist with installation, commissioning, and ongoing maintenance.

We offer training programs for end-users and maintenance personnel to ensure that your team is equipped with the knowledge and skills to operate and maintain the system. Additionally, our product comes with a warranty to provide you with peace of mind.

If any issues arise, our technical support team is available to troubleshoot and provide timely resolutions to minimize downtime. We also offer remote monitoring services to identify and address any potential issues before they become major problems.

Our goal is to provide our customers with a reliable and efficient energy storage solution that meets their specific needs. Contact us to learn more about our technical support and services.
