Specifications
Brand Name :
Solarsonc
Model Number :
GXY-B-L3.7-1500
Certification :
CE/TUV/UN38.3
Place of Origin :
China
MOQ :
1 set
Delivery Time :
45 working days
Packaging Details :
Steel Container
Cell type :
LFP
Nominal voltage :
1331.2V
Charge and discharge ratio :
0.5P/1P
Communication mode :
Ethernet/RS485/CAN
Communication protocol :
Modbus TCP / Modbus RTU / CAN 2.0
Operating ambient temperature :
-20℃ to 55℃(-4°to 131°F)
Thermal management :
Liquid cooling + air cooling
Size (length * width * height) :
6058*2700*3100mm
Description

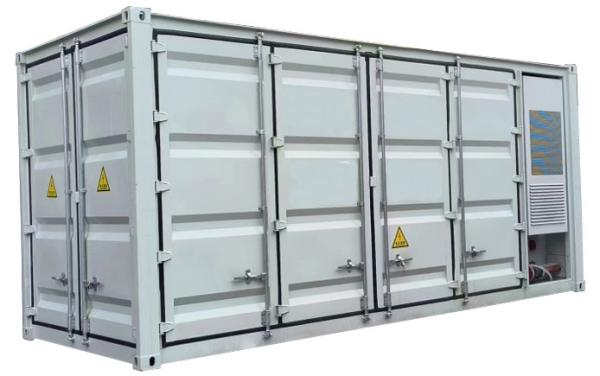

3.7MWH Liquid Cooled Container Energy Storage System For Commercial And Industry

3.7MWH Liquid Cooled Container Energy Storage System For Commercial And Industry

Solarsonc liquid cooling Battery Energy Storage Systems(BESS) offer world-leading clean technology to improve power quality,
energy efficiency and environmental performance.

The BESS systems can be placed at various electrical systems to increase
operational performance and reliability. It provides a cost-effective way to store excess energy generated by renewable sources
like wind and solar farms.

Solarsonc BESS can provide backup power during outages or extreme weather events, reducing the need for
costly distribution upgrades or emergency generators.Not only do they enable smoother integration of renewable energy
sources, but they also help balance electricity supply and demand.

3.7MWH Liquid Cooled Container Energy Storage System For Commercial And Industry

3.7MWH Liquid Cooled Container Energy Storage System For Commercial And Industry

3.7MWH Liquid Cooled Container Energy Storage System For Commercial And Industry

Safe and Reliable
Advanced LiFePO4 technology
Pre-assembled and debugged in factory,shorter constructing
time, less constructing cost

Liquid cooling,reducing 20% system energy consumption and
having
longer battery cycle life
Premium Quality Assurance
Integration with ISO 26262 & IATF 16949 certificates
Quality assurance and control is involved at all stages to
ensure that our products are of the highest quality and are
safe & reliable

Intelligent BMS
Integrated intelligent battery management system and
optional cloud EMS

Fast state monitoring and faults record enables pre-alarm and
faults location

Comprehensive Service
10 years global limitted warranties
One stop service with local suport capabilities

3.7MWH Liquid Cooled Container Energy Storage System For Commercial And Industry

No. Item Parameter
1 Energy density 252.36kWh/m²
2 Cell type LFP
3 PACK configuration 1P52S
4 Configuration(RACK) 1P416S(8PACK)
5 RACK quantity 10
6 Nominal voltage 1331.2V
7 Voltage range 1123.2V~1518.4V(individual voltage:2.7V~3.65V)
8 Charge discharge ratio 0.5P/1P*
9 Rated capacity 3727kWh
10 Short circuit current 45KA
11 Communication interface Ethernet/RS485/CAN
12 Communication protocol Modbus TCP / Modbus RTU / CAN 2.0
13 Auxiliary power supply AC480V/60Hz,3P5W
14 Design standards GB/ITEC3662267169-2 ,0N18FP, UAL6199, 7N3F,PUAL7905,4N0F, PUAL895554,0NAF,PUAN6388.3,
15 Auxiliary backup power Online(30min,adjustable)
16 Working environment temperature -20℃ to 55℃(-4°to 131°F)
17 Altitude <2000m ( 2000m~4000m,rediced power operation)
18 Thermal management Liquid cooling+ air conditioning
19 Size(L*W*H) 6058*2438*2896mm
2
0
Weight 37ton
21 Ingress Protection IP55
2
2
Color RAL9010
23 Seismic Zone 4
24 Noise ≤75 dB @1m(3.28ft)
25 Fire fighting fm200 extinguishing system
26 Emergency stop on spot Yes
27 Emergency stop remotely Yes
28 Fire detection PACK+Container
29 Thermal diffusion technology Yes
30 Whole container delivery (internal battery) Yes
31 Battery Ingress Protection IP65
32 Full power running range SOC5%~100%@25oC
33 Maximum cycle times per day 4 times

3.7MWH Liquid Cooled Container Energy Storage System For Commercial And Industry

These energy storage systems are made in JIANGSU and have a minimum order quantity of 1 set. The price range for these systems is USD38000-50000/set. The packaging details include a wooden box and the delivery time for the system is 45 days. The payment terms are TT and the supply ability is 10 sets/month.

Our commercial and industrial energy storage product comes with comprehensive technical support and services to ensure optimal performance and efficiency. Our team of highly trained technicians and engineers are available to provide assistance with installation, commissioning, and ongoing maintenance. We offer remote monitoring services to detect and resolve any issues that may arise, as well as regular performance evaluations to ensure that the system is operating at peak performance. In addition, we offer training programs for operators and maintenance staff to ensure that they are equipped with the knowledge and skills necessary to operate and maintain the system effectively.
