M8 ELEVATOR SAFETY GEAR PROGRESSIVE SAFETY GEAR RATED SPEED 2.5M/S GX-210B
M8 ELEVATOR SAFETY GEAR PROGRESSIVE SAFETY GEAR RATED SPEED 2.5M/S GX-210B
M8 ELEVATOR SAFETY GEAR PROGRESSIVE SAFETY GEAR RATED SPEED 2.5M/S GX-210B
M8 ELEVATOR SAFETY GEAR PROGRESSIVE SAFETY GEAR RATED SPEED 2.5M/S GX-210B
Specifications
Brand Name :
GYG
Model Number :
GX-210B
Certification :
EAC/CE
Place of Origin :
China
MOQ :
1SET
Payment Terms :
Western Union, MoneyGram, T/T
Delivery Time :
5-10 working days
Packaging Details :
Standard Packing,Packed in carton or as per client's request
Rated speed :
≤2.5m/s
Total permit system quality :
600-2800kg
Matching guide rail :
≤16mm(guideway width)
Structure form :
Cup spring,single moving wedge
Pulling form :
single pulling(M8)
Performance standard :
GB7588-2003,EN81-1:1998
Shipping :
Air/Sea/Dhl/Fedex
Description

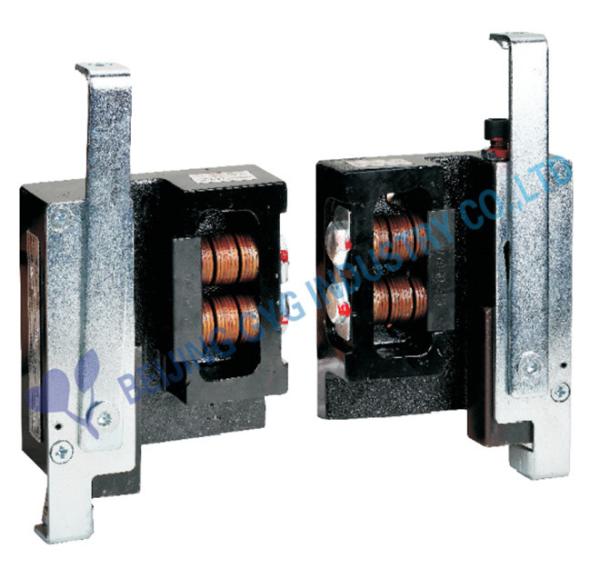

ELEVATOR SAFETY GEAR GX-210B , PROGRESSIVE SAFETY GEAR , ELEVATOR SAFETY PARTS
RATED SPEED 2.5M/S


The elevator safety gear is a device under the control of speed governor, when the elevator over speed its rated speed or in the case of suspension rope breakage or slack, the car stop in emergency and clamp on the guide rail. It provides effective protection to the safe operation of the elevator and generally installed in the car frame or counterweight frame. Safety gear device is composed of two parts: operating mechanism (safety gear linkage mechanism) and braking mechanism (safety clamp).


PERFORMANCE PARAMETER:

Rated speed ≤2.5m/s
Total permit system quality 600-2800kg
Matching guide rail ≤16mm(guideway width)
Structure form Cup spring,single moving wedge
Pulling form single pulling(M8)
Installation position car side , counterweight side


M8 ELEVATOR SAFETY GEAR PROGRESSIVE SAFETY GEAR RATED SPEED 2.5M/S GX-210B

M8 ELEVATOR SAFETY GEAR PROGRESSIVE SAFETY GEAR RATED SPEED 2.5M/S GX-210B

DIFFERENT MODELS:

M8 ELEVATOR SAFETY GEAR PROGRESSIVE SAFETY GEAR RATED SPEED 2.5M/S GX-210BM8 ELEVATOR SAFETY GEAR PROGRESSIVE SAFETY GEAR RATED SPEED 2.5M/S GX-210BM8 ELEVATOR SAFETY GEAR PROGRESSIVE SAFETY GEAR RATED SPEED 2.5M/S GX-210B
M8 ELEVATOR SAFETY GEAR PROGRESSIVE SAFETY GEAR RATED SPEED 2.5M/S GX-210BM8 ELEVATOR SAFETY GEAR PROGRESSIVE SAFETY GEAR RATED SPEED 2.5M/S GX-210BM8 ELEVATOR SAFETY GEAR PROGRESSIVE SAFETY GEAR RATED SPEED 2.5M/S GX-210B
M8 ELEVATOR SAFETY GEAR PROGRESSIVE SAFETY GEAR RATED SPEED 2.5M/S GX-210BM8 ELEVATOR SAFETY GEAR PROGRESSIVE SAFETY GEAR RATED SPEED 2.5M/S GX-210BM8 ELEVATOR SAFETY GEAR PROGRESSIVE SAFETY GEAR RATED SPEED 2.5M/S GX-210B

PAYMENT&SHIPPING:

M8 ELEVATOR SAFETY GEAR PROGRESSIVE SAFETY GEAR RATED SPEED 2.5M/S GX-210B

CERTIFICATIONS:

M8 ELEVATOR SAFETY GEAR PROGRESSIVE SAFETY GEAR RATED SPEED 2.5M/S GX-210B
EXHIBITION SHOW:

M8 ELEVATOR SAFETY GEAR PROGRESSIVE SAFETY GEAR RATED SPEED 2.5M/S GX-210B
