Hydraulic Buffer GH-80H GH-175H GH-210H , pre filling type,Elevator Safety Parts , HL 46 hydraulic oil
Hydraulic Buffer GH-80H GH-175H GH-210H , pre filling type,Elevator Safety Parts , HL 46 hydraulic oil
Hydraulic Buffer GH-80H GH-175H GH-210H , pre filling type,Elevator Safety Parts , HL 46 hydraulic oil
Hydraulic Buffer GH-80H GH-175H GH-210H , pre filling type,Elevator Safety Parts , HL 46 hydraulic oil
Specifications
Brand Name :
GYG
Model Number :
GH-80H GH-175H GH-210H
Certification :
EAC/CE
Place of Origin :
China
MOQ :
1PC
Price :
USD50-200/PC
Payment Terms :
Western Union, MoneyGram, T/T
Supply Ability :
10000 pcs/Year
Delivery Time :
5-10 working days
Packaging Details :
Standard Packing,Packed in carton or as per client's request
Product Name :
HYDRAULIC BUFFER
The oil specification :
HL 46 hydraulic oil
Product type :
Energy consuming (pre filling type)
Compression Stroke :
80/175/210mm
Free state height :
300/505/595mm
Shipping :
Sea/Air/DHL/Fedex
Description

Hydraulic Buffer GH-80H GH-175H GH-210H , pre filling type,Elevator Safety Parts ,

HL 46 hydraulic oil

Buffer is device to provide a final elevator safety protection generally installed in the elevator shaft bottom pit, located right under the car and counterweight. When the elevator runs upward or downward, it may overrun terminal floor bottom or top because of accidental ineffective braking. Buffer provides absorption to avoid elevator car or counterweight from hitting bottom or top to protect safety for passengers and devices.

According to speed state, buffers can be divided into energy consuming buffer type (oil buffer as representative) and energy storing type (V≤1.0m/s, polyurethane buffer as representative)

NO TYPE MODEL RATED SPEED
(m/s)		 CAPACITY
(kgs)		 COMPRESSING DISTANCE
S(mm)		 FREE STATE HIGHT
H(mm)		 FIXING DIMENSION
(mm)		 OIL CAPACITY
(L)
1 Oil Buffer OH-65 ≤0.63 500~4600 65 355 100*150 0.45
2 OH-80A ≤1.0 1500~4600 80 405 90*150 0.52
3 OH-275 ≤2.0 800~3800 275 790 80*210 1.50
4 OH-425 ≤2.5 750~3600 425 1145 100*150 2.50
5 OH-80 ≤1.0 600~3000 80 315 90*150 0.40
6 OH-175 ≤1.6 600~3000 175 510 90*150 0.60
7 OH-210 ≤1.75 700~3600 210 610 90*150 0.80
8 OH-80E ≤1.0 600~3000 80 282 120*90 0.40
9 OH-175E ≤1.6 600~3000 175 510 120*90 0.60
10 OH-210E ≤1.75 600~3600 210 592 120*90 0.80

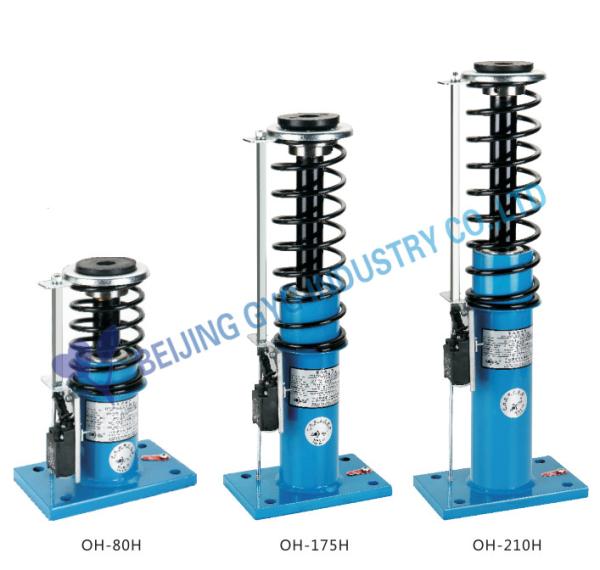

11 OH-80H ≤1.0 600~3600 80 300 90*150 0.40
12 OH-175H ≤1.6 600~3600 175 505 90*150 0.60
13 OH-210H ≤1.75 700~3600 210 595 90*150 0.80
14 OH-10 ≤1.0 300~2500 100 390 90*150 0.50
15 OH-16 ≤1.6 700~5300 175 625 100*210 1.70
16 OH-20 ≤2.0 1000~5300 290 915 100*210 2.60
17 OH-025 ≤0.4 500~1200 25 122 100*100 1.30
18 Polyurethane Buffer OH-J11 ≤0.63 500~1500 35~55 60 95*95 -
19 OH-J21 ≤1.0 600~4500 80~140 145 125*125 -

PERFORMANCE PARAMETERS:

The oil specification: HL 46 hydraulic oil

Product type: Energy consuming (pre filling type)

Compression Stroke: 80/175/210mm

Free state height: 300/505/595mm

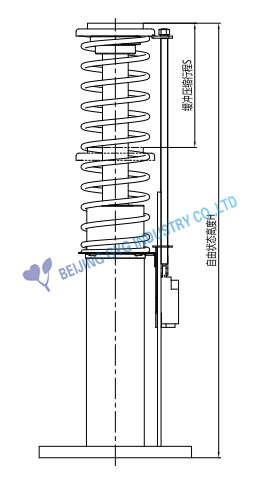

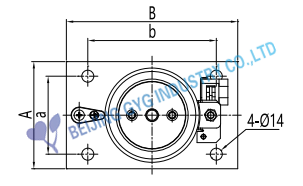

Type S(mm) H(mm) A*B(mm) a*b(mm)
GH-80H 80 300 125*200 90*150
GH-175H 175 505 125*200 90*150
GH-210H 210 595 125*200 90*150

Hydraulic Buffer GH-80H GH-175H GH-210H , pre filling type,Elevator Safety Parts , HL 46 hydraulic oilHydraulic Buffer GH-80H GH-175H GH-210H , pre filling type,Elevator Safety Parts , HL 46 hydraulic oil

DIFFERENT MODELS:

Hydraulic Buffer GH-80H GH-175H GH-210H , pre filling type,Elevator Safety Parts , HL 46 hydraulic oilHydraulic Buffer GH-80H GH-175H GH-210H , pre filling type,Elevator Safety Parts , HL 46 hydraulic oilHydraulic Buffer GH-80H GH-175H GH-210H , pre filling type,Elevator Safety Parts , HL 46 hydraulic oil

Hydraulic Buffer GH-80H GH-175H GH-210H , pre filling type,Elevator Safety Parts , HL 46 hydraulic oilHydraulic Buffer GH-80H GH-175H GH-210H , pre filling type,Elevator Safety Parts , HL 46 hydraulic oilHydraulic Buffer GH-80H GH-175H GH-210H , pre filling type,Elevator Safety Parts , HL 46 hydraulic oil

CERTIFICATION:

Hydraulic Buffer GH-80H GH-175H GH-210H , pre filling type,Elevator Safety Parts , HL 46 hydraulic oil

EXHIBITION SHOW:

Hydraulic Buffer GH-80H GH-175H GH-210H , pre filling type,Elevator Safety Parts , HL 46 hydraulic oil
