Description:

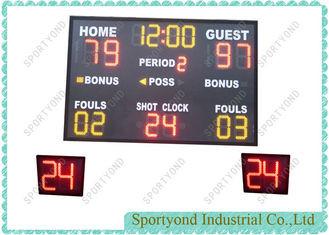

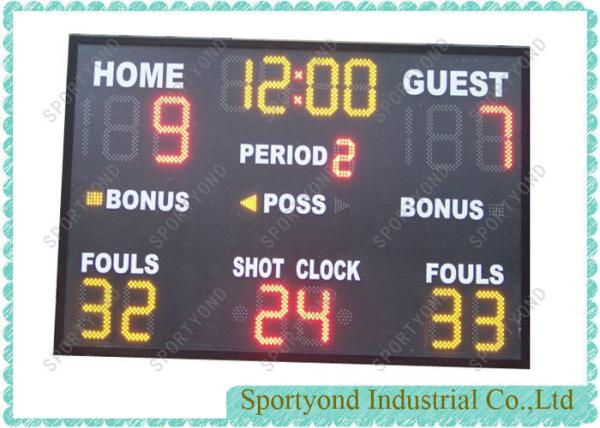

The scoreboard with shot clock displays Home and Guest scores to 199,Period to 9,Time to 99:59, Fouls to 99,shot clock counts down from 99 Max,and indicates possession and bonus.When period time
is less than one min,the scoreboard displays time to 1/10 of a second.
1) Score : 10" -- red
2) Time : 8" -- yellow
3) Period : 4" -- red
4) Fouls : 8" -- yellow
5) Built-in shot clock : 8" -- red
6) Independent shot clock : 10" -- red
7) LED : Super bright LED , >100000hours life
8) Input power: AC100V~240V , 50 / 60Hz
9) Power consumption : < 70W
10) Wireless RF console
11) Scoreboard Dimensions : 1800*1200*75mm
12) Independent shot clock : 480*380*75mm


Characteristics:

1. Adopt single-chip to control, software to set up time, it is with high degree of accuracy.
2. Easy to operate , in line with people's operating habits.
3. Adopt imported LED with high brightness as display unit, it can be viewed easily.


Quick Detail:
Name Application For Basketball Game
Color Red,Yellow Feature Ultra bright,low-energy,long life LED
Material Aluminum Housing Certificate CE,RoHS,FCC

Functions:

1. Wireless RF Controller for the electronic basketball scoreboard and shot clock.
2. The scoreboard and shot clock display Home Score, Guest Score,Game time, Poss,Fouls,Period,
Bonus and Shot clock.
3. With the function of exchange field and whistle sound after game time/shot clock runs out.


Specifications:

Model

SPY-B1218S

Scorer display

Digits

LED Colors

Red,Yellow

Viewing distance

100m

Usage environment

Indoor,outdoor

Control method

Wireless RF console

Wireless communication distance

>100m

Power consumption

< 70W

Input power

AC100V~240V,50/60Hz

Housing material

Aluminum

Advantages:

1. Beautiful style,simple operation
2. Wide input power range AC100-240V,50/60Hz,this scoreboard can be used in any country or region.
3. Superior design can be used for indoor or outdoor.


Maintenances:

1. Please connect the power cable according right way.
2. Turn off the power when you don't use.
3. Clean with soft cloth.
