Quick Detail:

Name

Portable Indoor scoreboard,

portable outdoor electronic led scoreboards,

digital scoring sign maker

Application

Digital scores display for basketball,

Football,Handball,etc

Color

red,yellow

Feature

Ultra bright,low-energy,long life LED

Material

Aluminum Housing

Certificate

CE,RoHS,FCC

Functions:

1.Controller is available in wireless IR modules for the scoreboard.

2.The scoreboard displays Local and visitor scores,period and possession.

3.With the function of exchange field.

Description:

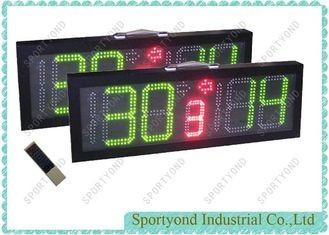

The scoreboard features basic game information for basketball,football, handball,etc.

The scoreboard displays Home and Guest scores to 199,Period to 9 and indicates poss.

1) Scores: 8" -- green

2) Period: 6" --yellow

3) Possession: red

4) LED:Super bright LED, >100000hours life

5) Input power: AC100V~240V,50/60Hz

6) Power consumption:< 35W

7) Wireless IR console

8) Product Dimensions:1000*300*75mm

9) Weight:7KG

Characteristics:

1.Adopt single-chip to control, software to set up digits, it is with high degree of accuracy.

2.Easy to operate , in line with people's operating habits.

3.Adopt imported LED with high brightness as display unit, it can be viewed easily.

Specifications:

Model

SPY-M103

Scorer display

Digits

LED Colors

Red,green

Viewing distance

80m

Usage environment

Indoor,outdoor

Control method

Wireless IR console

Wireless communication distance

15m

Power consumption

< 35W

Input power

AC100V~240V,50/60Hz

Housing material

Aluminum

Advantages:

1.Excellent style,portable model and simple operation
2.Superior design can be used for indoor or outdoor.
3.Wide input power range:AC100-240V,50/60Hz,this scoreboard can be used in any country or region.

Maintenances:

1.Turn off the power when you don't use.

2.Please connect the power cable according right way.

3.Clean with soft cloth.
