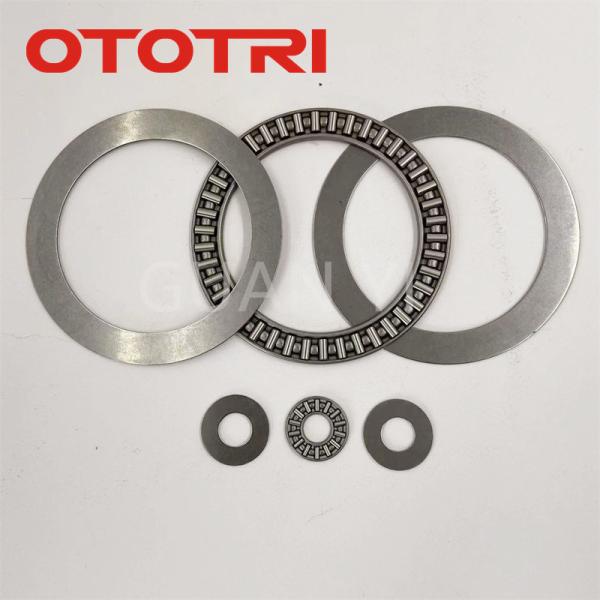

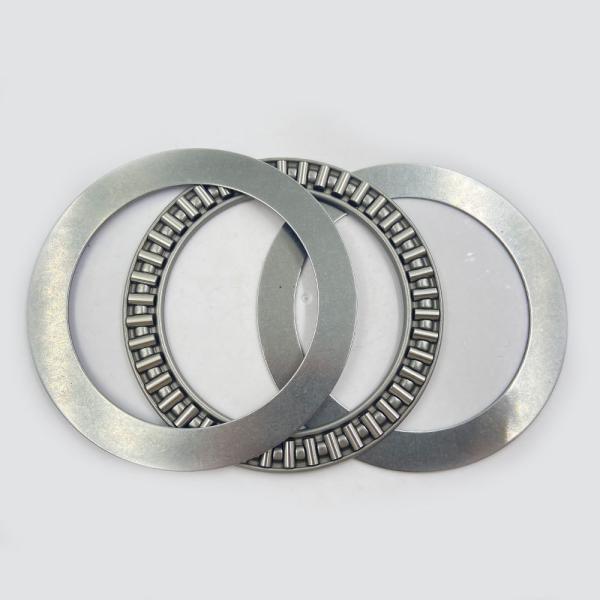

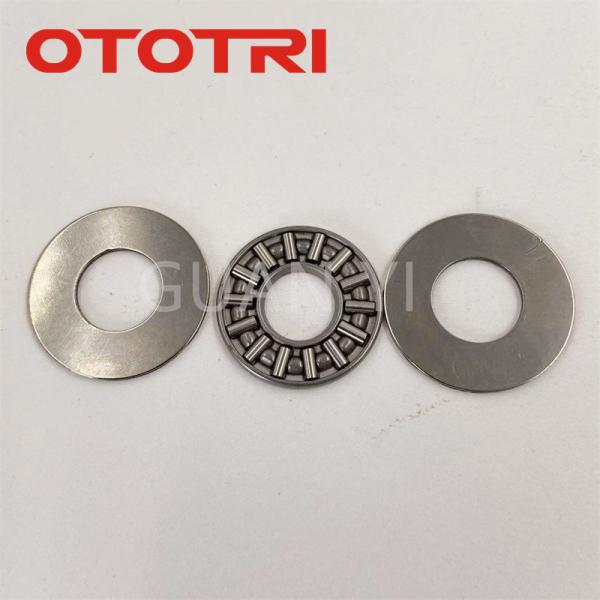

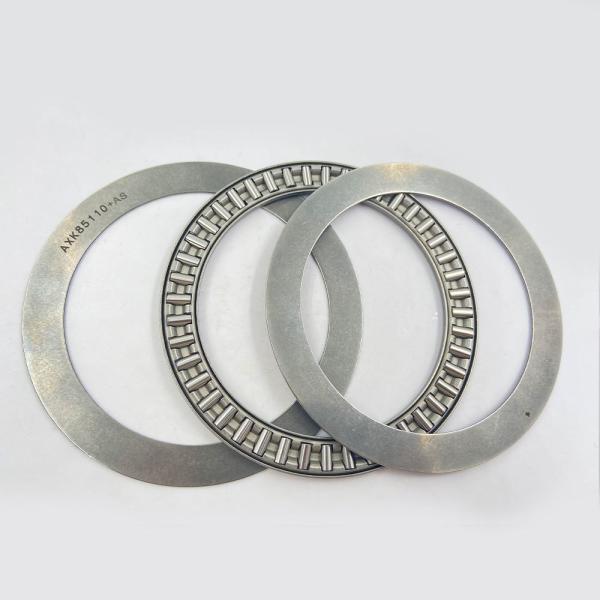

Single Row Thrust Planar Needle Roller Bearing AXK80105 80*105*4mm
Single Row Thrust Planar Needle Roller Bearing AXK80105 80*105*4mm
Single Row Thrust Planar Needle Roller Bearing AXK80105 80*105*4mm
Single Row Thrust Planar Needle Roller Bearing AXK80105 80*105*4mm
Single Row Thrust Planar Needle Roller Bearing AXK80105 80*105*4mm
Single Row Thrust Planar Needle Roller Bearing AXK80105 80*105*4mm
Single Row Thrust Planar Needle Roller Bearing AXK80105 80*105*4mm
Single Row Thrust Planar Needle Roller Bearing AXK80105 80*105*4mm
Single Row Thrust Planar Needle Roller Bearing AXK80105 80*105*4mm
Single Row Thrust Planar Needle Roller Bearing AXK80105 80*105*4mm
Single Row Thrust Planar Needle Roller Bearing AXK80105 80*105*4mm
Single Row Thrust Planar Needle Roller Bearing AXK80105 80*105*4mm
Single Row Thrust Planar Needle Roller Bearing AXK80105 80*105*4mm
Single Row Thrust Planar Needle Roller Bearing AXK80105 80*105*4mm
Single Row Thrust Planar Needle Roller Bearing AXK80105 80*105*4mm
Single Row Thrust Planar Needle Roller Bearing AXK80105 80*105*4mm
Single Row Thrust Planar Needle Roller Bearing AXK80105 80*105*4mm
Single Row Thrust Planar Needle Roller Bearing AXK80105 80*105*4mm
Specifications
Brand Name :
OTOTRI
Model Number :
AXK80105
Place of Origin :
Changzhou Jiangsu China
MOQ :
100pcs
Price :
0.1~100$/pcs
Delivery Time :
5-7 days after receiving your payment
Supply Ability :
10000pcs/week
Certification :
ISO
Packaging Details :
Plastic packaging + brand box + carton
Payment Terms :
L/C,T/T,Western Union,MoneyGram,Paypal
Type :
Roller
Structure :
Thrust
Precision Rating :
P6 P5 P4 P2 P0
Seals Type :
OPEN / RS /ZZ
Number of Row :
Single Row
Product name :
Thrust Roller Bearing AXK80105
Material :
GCR15
Feature :
Long Life
MAIN MARKET :
America Europe Asia Middle Africa
Application :
Auto Parts
Cage :
V1 V2 V3 V4
Model :
AXK80105
Size :
80*105*4mm
Package :
Original Package
Brand :
OTOTRI AXK80105
Product Name :
Needle Roller Bearing AXK80105
Precision Grade :
P5 P6
OEM/ODM :
Available
Cage Material :
Steel , Nylon
Clearance :
C0,C2,C3,C4,C5 is available
Description

OTOTRI Single Row Thrust Planar Needle Roller Bearing AXK80105 80*105*4mm for Industrial

AXK80105 Thrust Roller Needle Bearing Friction Bearing AXK 0105 80*105*4 Single Row Thrust Planar Needle Roller Bearing

Product Description

1.Bearing Specifications :
Needle roller bearings use long, thin cylindrical rollers to support radial loads. These needle rollers have a length that is
typically three to four times its diameter. Needle roller bearings have a thinner cross section than other roller bearings and are ideal for limited-space applications that require carrying heavy loads. Drawn cup needle roller bearings have a deeply drawn, thin-walled outer ring. Caged drawn cup units contain a one-piece cage to guide and retain the rollers. Full-complement drawn cup units include the maximum number of rollers that can be retained by the outer shell. The drawn design allows for cost-effective accommodation of heavy radial loads. Needle roller and cage assemblies do not contain inner or outer rings. Instead, the self-contained bearing components work with a shaft or housing bore used as a raceway.

2.Application of Bearing :
1.Needle roller bearing: used in automobile engine, transmission, crawler wheel of excavator, compressor, crane, etc.2.Combined needle roller bearing is widely used in machine tools, metallurgical machinery, textile machinery, printing machinery and other mechanical equipment, and can make the mechanical system design very compact and smart.


3.CROWNTRANS Bearing Features :
Lower cross-section height and higher load capacity than traditional ball bearings.
Small and compact for reduced overall machine size in light weighting efforts.
Widely used in automobiles, motorcycles, printing presses, industrial robots, construction equipment and other demanding
applications.
Many styles to choose from including: radial, thrust and combined models, cam followers and roller followers.

Product Description

P/N

OTOTRI Single Row Thrust Planar Needle Roller Bearing AXK80105 80*105*4mm for Industrial

Brand

OEM/OTOTRI

Dimension

AXK 90120

Precision

ABEC-1

Type

Needle Roller Bearings

Lubrication

Oil

Material

Chrome Steel

Package

Plastic Bag and Box

Payment Item

T/T ,Western Union , Paypal ,Credit card

Delivery time

3-10day

Single Row Thrust Planar Needle Roller Bearing AXK80105 80*105*4mm

Needle roller bearing

Single Row Thrust Planar Needle Roller Bearing AXK80105 80*105*4mm

Single Row Thrust Planar Needle Roller Bearing AXK80105 80*105*4mm

Single Row Thrust Planar Needle Roller Bearing AXK80105 80*105*4mm

Single Row Thrust Planar Needle Roller Bearing AXK80105 80*105*4mm

Size Information

Bearing Part No.

Dc1

Dc

Dw

AXK0414-TV

4

14

2

AXK0515-TV

5

15

2

AXK0619-TV

6

19

2

AXK0821-TV

8

21

2

AXK1024

10

24

2

AXK1226

12

26

2

AXK1528

15

28

2

AXK1730

17

30

2

AXK2035

20

35

2

AXK2542

25

42

2

AXK3047

30

47

2

AXK3552

35

52

2

AXK4060

40

60

3

AXK4565

45

65

3

AXK5070

50

70

3

AXK5578

55

78

3

AXK6085

60

85

3

AXK6590

65

90

3

AXK7095

70

95

4

AXK75100

75

100

4

AXK80105

80

105

4

AXK85110

85

110

4

AXK90120

90

120

4

AXK100135

100

135

4

AXK110145

110

145

4

AXK120155

120

155

4

AXK130170

130

170

5

AXK140180

140

180

5

AXK150190

150

190

5

AXK160200

160

200

5
