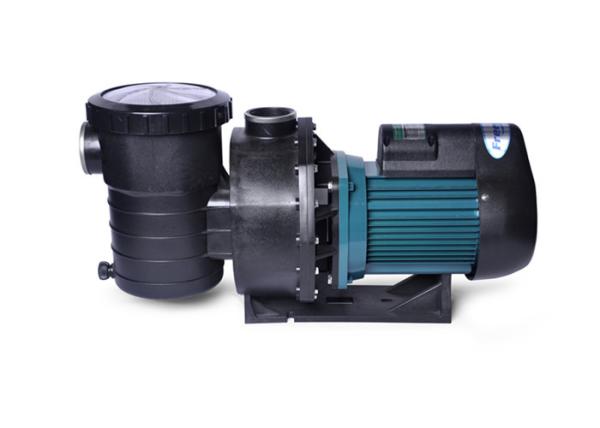

Sea Water Plastic Aquaculture Swimming Pool Water Pump Pool Single Phase

Features:

1. Low vibration

2. Class F

3. Excellent performance

4. Big flow design

5. Ingress Protection: IP55

6. Stainless steel 304/316 weld shaft

7. Overload protection

8. Thermal protection

9. Fresh water/Sea water

Description:

Release all air from fitter and piping system: see filter owner manual

In a flooded suction system (water source higher than pump),
pump will prime.
it self when suction and discharge valves are opened.
If pump is not in a flooded suction system, unscrew and remove cap
cover; fill cap and pump with water.
Clean and inspect Ring; re-install on trap cover.

Replace cap cover on cap turn clockwise to tighten cover.
PRIMING PUMP
NOTICE:
Tighten cap cover by hand only
Pump should prime now. Priming time will depend on vertical length of suction lift and horizontal
of suction piping.
ROUTINE MAINTENANCE
The only routine maintenance is inspection/cleaning basket. Debris or trash that collects in basket,
well choke off water flow through the pump. Follow instructions below to clean basket:
Stop pump, close gate valve in suction and discharge, and release all pressure from
system before proceeding.
1. Unscrew cap lid(turn counterclockwise).
2. Remove strainer basket and clean. Be sure all holes in basket are clear, flush basket with water.
If basket is replaced backwards, cover will not fit on pre-filter body.
3. Clean and inspect lid Ring: re-install on cap cover.
4. Clean Ring groove on pre-filter body and Replace lid. To help keep lid from sticking, tighten
hand tight only.
5. Prime pump (see priming instructions above)

A smart pump controller packed with great specifications and features that make it perfect. Everything is made easy where it automatically switches your pump on/off on open/closing of any tap. It comes with a LED screen showing the live RPM, current, voltage, etc. It provides stable performance, requires low maintenance and is long lasting; it is one of the few that will exceed your expectations. Buy one today and have the best and most reliable equipment at hand.

WITH A FULL RANGE OF SIZES, they are IDEAL FOR SMALL, MEDIUM and LARGE spas – Our pumps start from the 0.5 HP for circulation pumps up to the 3HP for spa jets and a full range of sizes in between. Connection fittings for standard PVC 2inch (48.5mm) pipe.

HOW TO USE – It is best to always replace your pump with a pump of similar size and power rating. Changing over and fitting of the pump can be done by the handy person but it is recommended to get it done by a professional. Suitable as a direct replacement OR upgrade to existing pump.
