Model | Voltage | HZ | Power(KW) | Power(HP) | Hmax(m) | Qmax(m³/h) | Port Size(inch/mm) |
FEL-180 | 220V-380V | 50/60 | 0.18 | 0.25 | 5 | 8.4 | 50 1.5” |
FEL-250 | 220V-380V | 50/60 | 0.25 | 0.35 | 8 | 9.6 | 50 1.5” |
FEL-370 | 220V-380V | 50/60 | 0.37 | 0.50 | 11 | 12.6 | 50 1.5” |
FEL-550 | 220V-380V | 50/60 | 0.55 | 0.75 | 10.5 | 14.4 | 50 1.5” |
FEL-750 | 220V-380V | 50/60 | 0.75 | 1.00 | 11 | 16.5 | 50 1.5” |
FEL-900 | 220V-380V | 50/60 | 0.90 | 1.2 | 22 | 18 | 50 1.5” |
Description

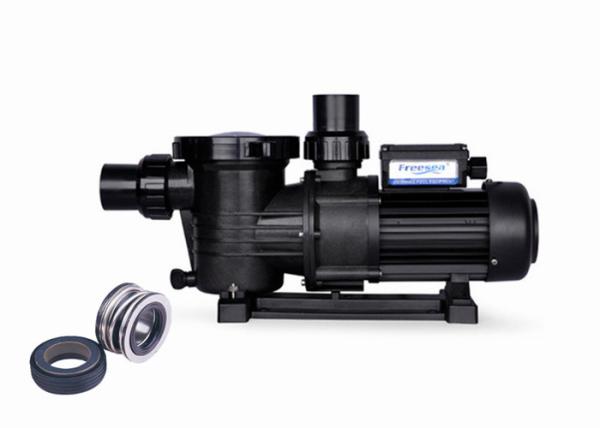

FEl swimming pool water pump is able to use in the salt water or chlorine filtered pools. Its built with a corrosion resistant marine grade cast iron motor housing and chemical resistant thermoplastic filter and engineer plastic pump body which allows the pump to be tough and durable. It provides high effective cleanin filtration basket which designed to capture and prevent fine debris from entering the pump,make the pump to supply a long time service.
Features :
1) Magnificent flow rate and lift, the core energy of water circulating, 2~3m suction lift
2) Engineering plastic body, pump can beeffectively protected under bad weather,long service life;
3) Seiko manufacturing, low noise duringthe pump working time;
4) Free-tool filter cover design, easy to maintenance;
5) IP55 protection level, with None-leakydesign;
6) German technology IBC bearing,100%copper wire motor, 24 hours running.
7) Anti rust cast-aluminum motor cover,fast heat dissipation;PPo plastic steel material impeller, resist high temperatureand corrosion
8) Silicone sealing ring, cover all wateringsection,enhance pump sealing system9) CE certificated, reliable and safety
Application:
During the use of the pool pump, the technical parameters used to measure the performance of the pool pump are flow, suction stroke, head, shaft power, water power, efficiency, etc.
1. Suction.
That is, the water absorption height of the swimming pool pump. Refers to the vertical distance from the center of the pump body to the horizontal level of the water source. When the water flow is pumped by the vacuum in the pump body, the allowable suction stroke is generally not more than 7.5 meters.
2. Lift.
That is, the lifting height of the swimming pool pump. Refers to the value of the energy increase per unit weight of water after passing through the pool pump. Generally, the height difference between the inlet and outlet water level of the pumping station is called the actual head; plus the head loss of the pumping station pipeline and its accessories (such as the bottom valve, elbow, gate valve, etc.) is called the total head. The lift on the swimming pool pump refers to the lift of the pool pump when the efficiency is high at a certain speed, which is the sum of the actual lift and the lost lift.
3. Traffic.
Refers to the amount of water that the swimming pool pump delivers per unit time, also known as the amount of water delivered. Commonly used flow units are liters per second, cubic meters per second, cubic meters per hour, kilograms per second, tons per hour, and the like.
4. Axis power.
Refers to the power delivered by the power machine to the swimming pool pump shaft, ie the input power of the swimming pool pump.
The reasonable matching of the swimming pool pump and the power is of great significance to ensure the normal operation of the swimming pool pump, and to obtain the rate and low energy consumption. The power of the supporting power machine is calculated according to the head h (meter) of the swimming pool pump and the flow rate q m 3 / sec: kW. The head h is composed of geometric head hj and pipe loss hs. It can be estimated by hs=(0.1~0.2)hj in the initial selection. After the pipeline is determined, it is calculated according to the type or size of the pipeline and joint by hydrodynamic method or by looking up the table. Where k is the power reserve coefficient, commonly used k = 1.05~1.3, when the power is large, take a small value; η1 is the transmission efficiency, when the power machine is directly connected with the swimming pool pump, η1=1; η2 is the swimming pool pump efficiency, according to the pump type and work The situation is determined.
