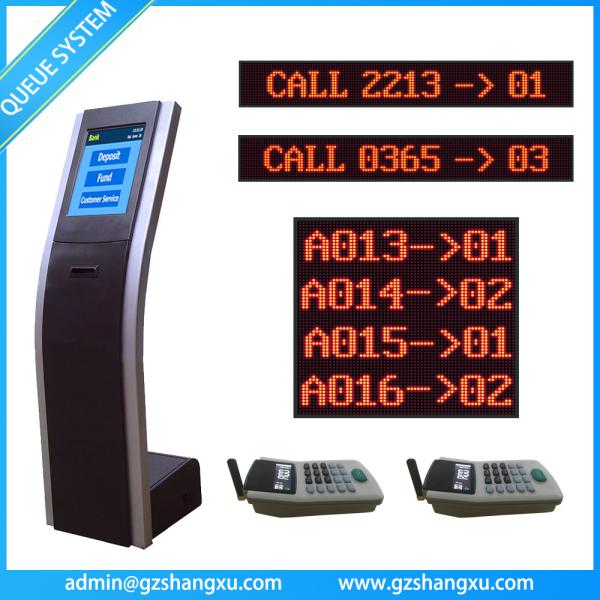

Queue Management System Component:

Hardware:

1.Touch screen Ticket Kiosk SX-Q171

Specifications:

*Free Standing modern cold steel cabinet

*17 inch SAMSUNG TFT LCD Display

*17" SAW touch screen

*EPSON 80 mm Thermal printer with auto cutter

*Embedded computer

Configuration

(Processor & hardware):

Intel Atom Dual Core 1.8GHZ processor

2G DDR2 Memory Card

32G SSD or 320G HDD(Optional)

*Support for 1-64 services, unlimited Counter Display, and unlimited Keypad by Multiple control system

*Interface and language and ticket format can be customized by customers

*Multilanguage Voice calling, and you can add logo or edit some other information on the ticket, like time, waiting people, and the Ticket number

2.Wireless Call pad SXC-W21

Specifications:

Liquid crystal display, which can display as 8-digit, five digit display for Ticket Number, three digit display for waiting person 5VDC power supply can be directly connected

3. With 21 Function Keys on the Panel, can realize the function of Call, Recall, Transfer Special Call Clear and etc.

3.LED counter Display

Specification:

*8 Digits Dot Matrix LED Display

*F3.75/F5.0

*Display: 2 digits for display counter number, 4digits for display ticket number

*Counter display screen for Queue System , calling after connected to the call pad and displaying ticket number

features

*Wall mounted, desk fixed orsuspended from the ceiling

*Displays the ticket number to be served

*Activated when the service representative hits the next button

*When the counter is inactive, CDU displays PAUSE or any other customiz message

Other Parts:

1.Wireless Module:Used for communication between systems

2.Communication controller:Communication controller Convert the Signal RS232←→RS485

Software:

*Queue Management System Software:Application:Queue Management, Statistical reports(Queue and Customner Feedback report), SQL database

*Unicode Multilanguage version software:Function:Can realize multilanguage calling and Multilanguage translation
