QUEUE MANAGEMENT SYSTEM PROCESS:

Ticket Printing-Waiting-Calling your number-Customer Service

Basic Component Of Queue Management System

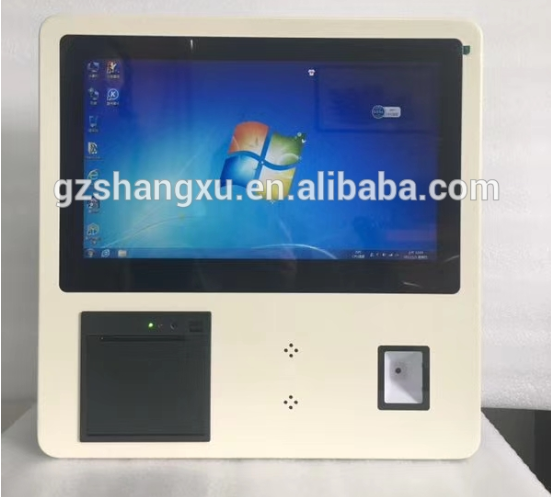

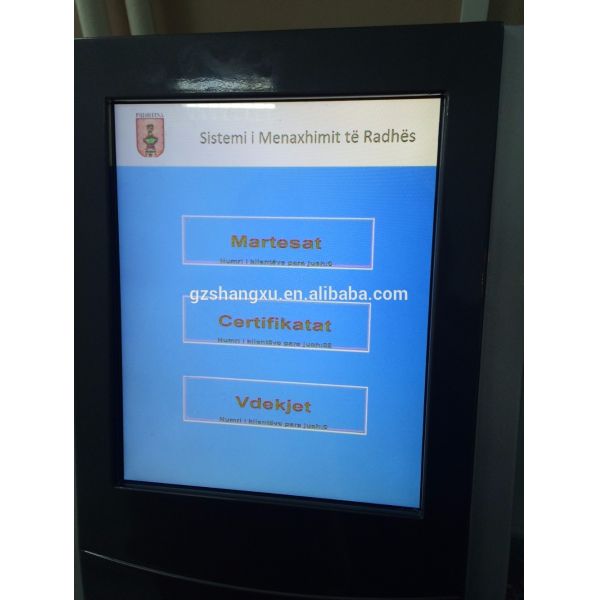

1. SX-Q178 Wall Mount Touch screen Ticket dispenser

-Display: 15.6" LCD display panel

-Touch screen: Multiple point Capatitive Touch Screen

-CPU: 2.4GHz

-2G DDR3 Memory or higher

-32G SSD or higher as you require

-Integrated sound card and graphic card

-Printer: with 80 mm Epson Auto Cutter thermal Printer

-Support for 1-64 services, unlimited Counter Display, and unlimited Keypad by Multiple control system
-Interface and language and ticket format can be customized by customers
-Multilanguage Voice calling, and you can add logo or edit some other information on the ticket, like time, waiting people, and the Ticket number
-Color and Design can be customize as you require
-OEM/ODM also available

2. 8 Digital LED counter display labeled with Counter Number

Model No:SX-QCD3705

F3.75 single color Dot Matrix LED Display;8 Digits can be displayed;

4 digits for display ticket number,2 digits for display the Counter number

The size and length can be customize as you require

Inbuilt Power,22V Power Supply

The new calling Ticket number can blinking on the display(Option function)

WIred and Wireless system solution both available

3.21 Keys Call pad

Model No:SX-QKP21

Size:140mm*81mm*26mm

21-key wireless multi-function keypad;

Equipped with Small LCD Display for showing message such as Calling Ticket Number and the number of customer waiting and other message.

Power supply: USB or USB micro adapter.

Wired and Wireless system solution available

Software counter call pad also available

Function: Can realize the function of login,call,recall,special call,transfer,Service Time Reminder and etc.Also can check the passed number which stored in the call pad and can call back.

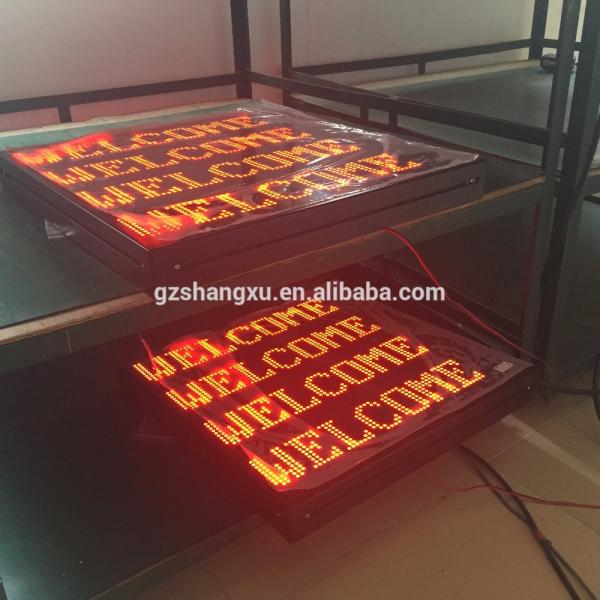

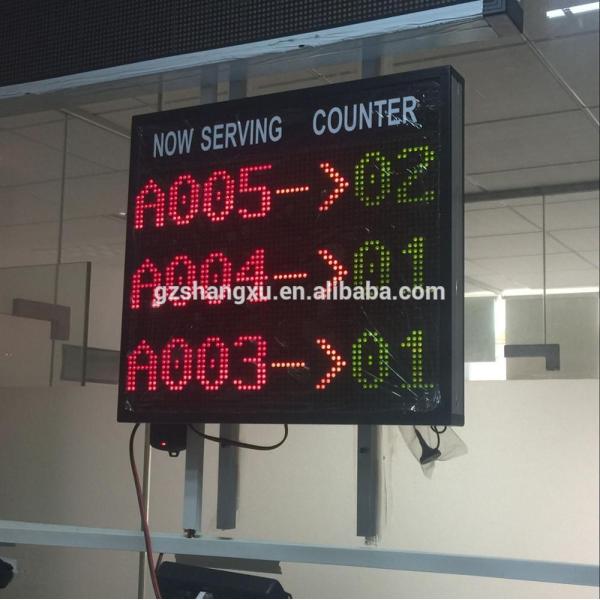

4.Waiting Area LED Main Display (Optional)

Model: SX-QMD0504

Size H*W*D(cm) :53*53*6

F5.0 RED color Dot Matrix LED Display;8 Digits in each line,total 4 rows;

4 digits for display ticket number,Counter number available

The new calling ticket number can blinking at the top of the display(Option Function)

220V Power Supply

Wireless and Wired can support

Can put on the Waiting Area for indicate and remind customer

The size of the Main Display can be customized as you required

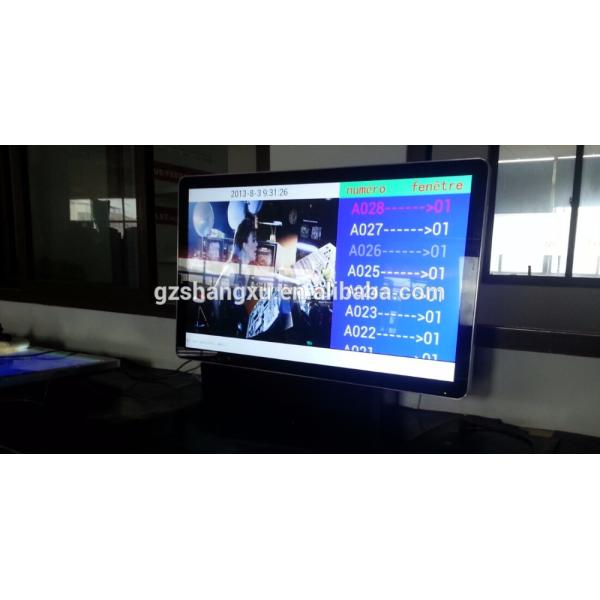

5.Multimedia and Information Player Box(Optional)

Model:SX-QMPB01

*Video output: at least can support the image with the resolution of 1024 × 768 / 75 Hz ;

*Inbuilt Software,and can split the screen to more than 5 zones to display different content

*Supported video formats: MPEG-1,MPEG-2 MP@HL,MPEG-4 ASP@L5,etc
*Image formats supported:JPG, BMP, static GIF, and provides a 10 / 100 M adaptive fast Ethernet interface

*storage media: standard 2G memory card;

6.Queue System Software Qversion SX2016

Queue Management System software: control and manage the queues, can realize the function of Multiple language calling and Multiple language translation, Arabic language, French, etc also supported,and can realize the report statistic function

Interface and language and ticket format can be customized, and you can add logo or some other information on the ticket, like time, waiting people, and etc
