E336GC Excavator Swing Gearbox Electric Motor Gear Reduction Box 536-7288
E336GC Excavator Swing Gearbox Electric Motor Gear Reduction Box 536-7288
E336GC Excavator Swing Gearbox Electric Motor Gear Reduction Box 536-7288
E336GC Excavator Swing Gearbox Electric Motor Gear Reduction Box 536-7288
E336GC Excavator Swing Gearbox Electric Motor Gear Reduction Box 536-7288
E336GC Excavator Swing Gearbox Electric Motor Gear Reduction Box 536-7288
E336GC Excavator Swing Gearbox Electric Motor Gear Reduction Box 536-7288
E336GC Excavator Swing Gearbox Electric Motor Gear Reduction Box 536-7288
Specifications
Brand Name :
TGFQ
Model Number :
E336GC 336GC
Place of Origin :
CHINA
MOQ :
1
Price :
200.00-800.00USD
Payment Terms :
L/C, T/T, D/P, D/A
Supply Ability :
500 pcs / month
Delivery Time :
2-3days
Packaging Details :
NNER PACKING: Wrap by plastic film, clear label for each item. OUTER PACKING: Carton or Plywood Case PACKING SIZE: Depend on packing type
Product Name :
Komatsu Swing Gearbox Assy
Part Number :
536-7288
Model :
E336GC 336GC
Outer Packing :
wooden case
Shaft :
12/240T
Port :
Huangpu,Guangzhou
Description

Factory E336GC Swing Gearbox Swing Reducer Excavator Swing Gear Electric Motor Gear Reduction Box

Product Parameter:

Product Name: Excavator Swing Reduction Gearbox

Place of Origin: China (Mainland)

Model: E336GC 336GC

Part Number: 536-7288

MOQ: 1 PCS

Payment term: L/C, T/T, D/P, D/A

Delivery time: Within 1-3 days after receiving the payment

Means of Transport: By Sea, By Air or By Express

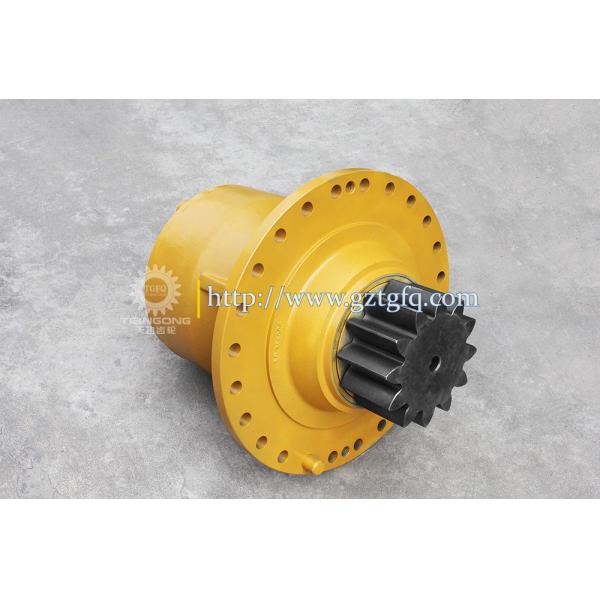

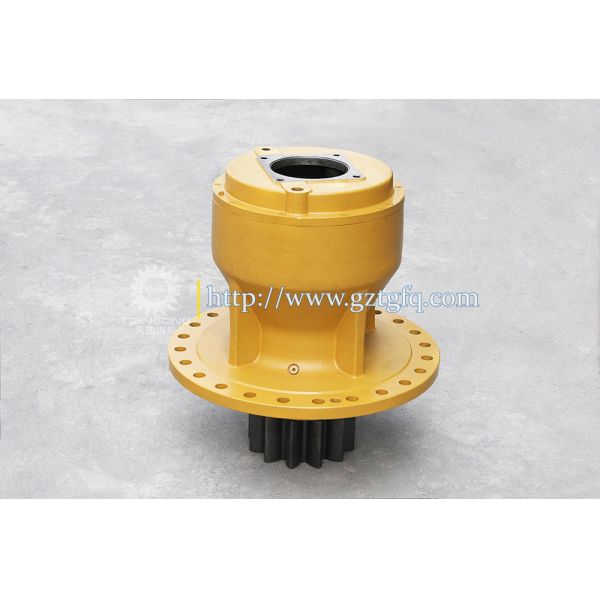

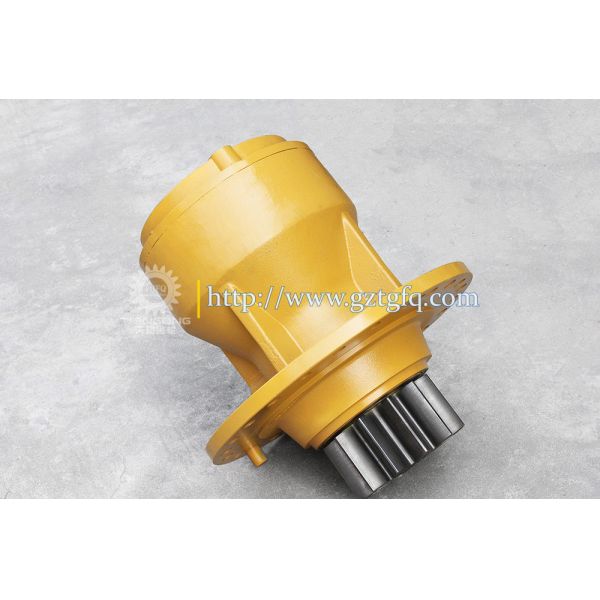

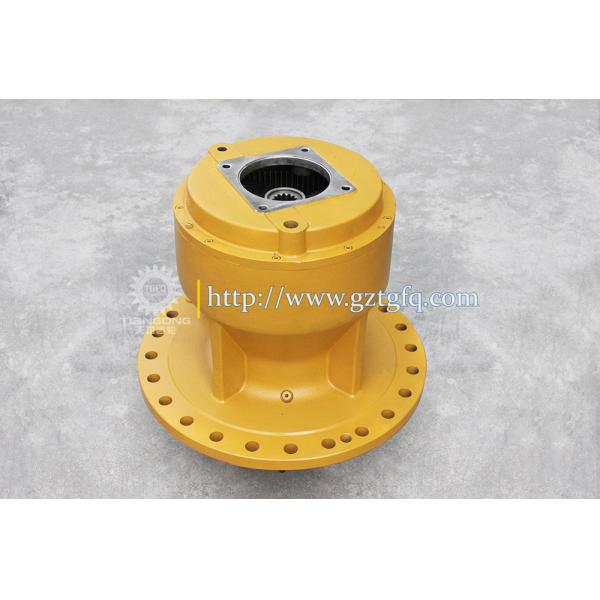

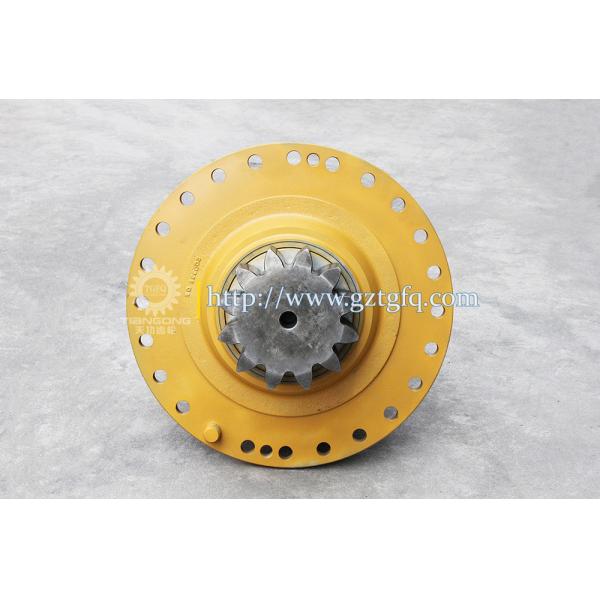

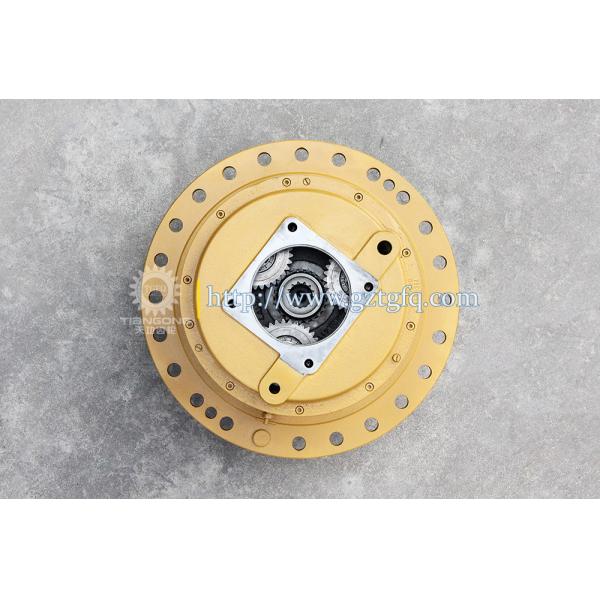

336GC Swing Gearbox Photo:

E336GC Excavator Swing Gearbox Electric Motor Gear Reduction Box 536-7288E336GC Excavator Swing Gearbox Electric Motor Gear Reduction Box 536-7288E336GC Excavator Swing Gearbox Electric Motor Gear Reduction Box 536-7288E336GC Excavator Swing Gearbox Electric Motor Gear Reduction Box 536-7288E336GC Excavator Swing Gearbox Electric Motor Gear Reduction Box 536-7288E336GC Excavator Swing Gearbox Electric Motor Gear Reduction Box 536-7288

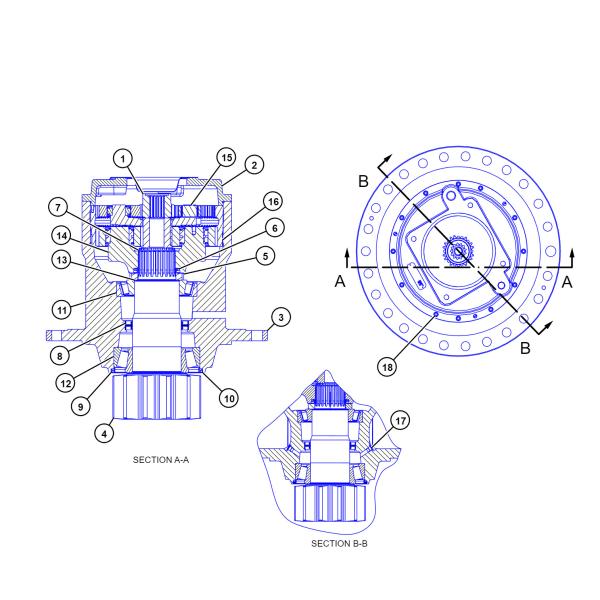

336GC Swing Gearbox Drawing:

E336GC Excavator Swing Gearbox Electric Motor Gear Reduction Box 536-7288

Part Number Part Name
1
570-5850
Gear-Sun
2
570-5851
Housing AS-Drive
4D-6695
Seal-O-Ring
3
570-5852
Housing-Output
4
570-5853
Shaft-Pinion
5

570-5854
Nut-Ring(M102X2-THD)
6
570-5855
Spacer
7
570-5856
Ring-Retaining
8
595-6572
Seal
9
570-5858
Seal
10
570-5860
Seal-Ring
11
570-5861
Bearing
12
570-5862
Bearing
13
570-5863
Shim-Pack(Includes 4-SHIMS)
14
570-5864
Planetary AS
15
570-5865
Planetary AS
16
569-4288
Gear-Ring(90-TEETH)
17
136-8074
Plug
18

311-0501
Bolt(M8X1.25X25-MM)

What is the function of swing motor on excavator?
Swing motors (sometimes called swing drives) provide the powerful turning force of excavator booms using hydraulic oil pressure and are finely engineered to ensure trouble-free operation and performance.

E336GC Excavator Swing Gearbox Electric Motor Gear Reduction Box 536-7288

OUR STOCK

We have more than 4000 square meters of three-dimensional warehouse and more than 2000 square meters of outdoor warehouse
It ensures that we have sufficient inventory and respond to customers' needs faster. Fast delivery is our advantage

E336GC Excavator Swing Gearbox Electric Motor Gear Reduction Box 536-7288

FAQ:
Q: Can I order one of our samples for testing first?
A: Of course!


Q: How do I order?
A: You need to tell us the model and quantity you are interested in, and then we will issue a proforma invoice for you. The goods will be prepared after receiving the payment. The preparation time depends on the content of the order.


Q: Do you have a factory?
A: Yes, we have our own factory and have 23 years of production experience in the excavated gear industry.
