Hyundai Swing Motor Assy For R300LC-9VS Excavator Hydraulic Parts
Hyundai Swing Motor Assy For R300LC-9VS Excavator Hydraulic Parts
Hyundai Swing Motor Assy For R300LC-9VS Excavator Hydraulic Parts
Hyundai Swing Motor Assy For R300LC-9VS Excavator Hydraulic Parts
Hyundai Swing Motor Assy For R300LC-9VS Excavator Hydraulic Parts
Hyundai Swing Motor Assy For R300LC-9VS Excavator Hydraulic Parts
Hyundai Swing Motor Assy For R300LC-9VS Excavator Hydraulic Parts
Hyundai Swing Motor Assy For R300LC-9VS Excavator Hydraulic Parts
Specifications
Brand Name :
TGFQ
Model Number :
R300LC-9VS / R290-9MH
Place of Origin :
CHINA
MOQ :
1
Price :
1000.00-5000.00usd
Payment Terms :
L/C, T/T, D/P, D/A
Supply Ability :
500 pcs / month
Delivery Time :
1-3days
Packaging Details :
NNER PACKING: Wrap by plastic film, clear label for each item. OUTER PACKING: Carton or Plywood Case PACKING SIZE: Depend on packing type
Applicable Industries :
Architectural Engineering
Product Name :
Swing Hydraulic Motor Assembly
Model :
R300LC-9VS / R290-9MH
Part Number :
38Q8-11101
Shaft :
17/22T
Brand :
TGFQ
Description

Hyundai Swing Motor Assy For R300LC-9VS New Type Excavator Hydraulic Parts

PRODUCT DESCRIPTION

Model: R300LC-9VS / R290-9MH

egory: Excavator Swing Motor

Brand: TGFQ

Part Number: 38Q8-11101

Outer Packing: Wooden case

Shaft: 17/22T

Delivery Time: 1-3 days (after receive the payment)

Means of Transport: By Sea, By Air or By Express

Guarantee: We will check the starter motor and send detail pictures to buyer to confirm before shipping.

What motors are used in excavators?
Hydraulic motors
Hydraulic motors are commonly seen in earthmoving equipment like excavators, backhoe loaders, skid-steer loaders, forklifts, heavy dump trucks, bulldozers etc where hydraulic cylinders extend and retract as vital operational parts while the machine performs various

How does excavator swing brake work?
The swing brake is a multi-disc and plate assembly loed in the first stage planetary gear assembly. It is spring applied and hydraulically released. The brake is designed as a parking brake only and is not intended to be used as a cyclic service brake. The discs and plates are lubried by the release signal oil.

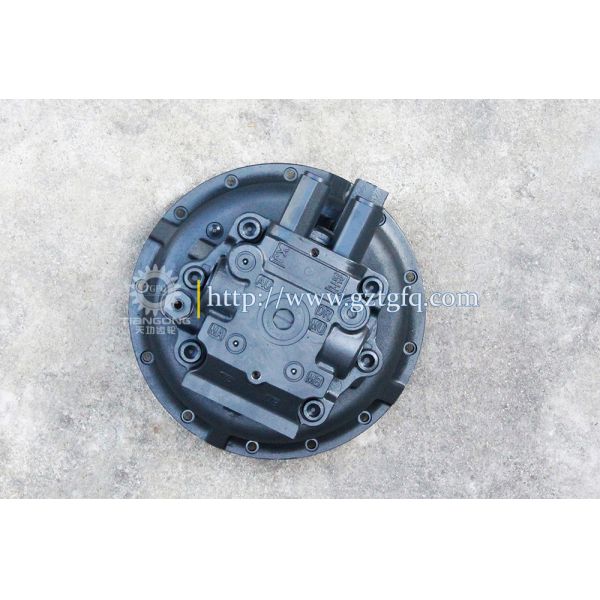

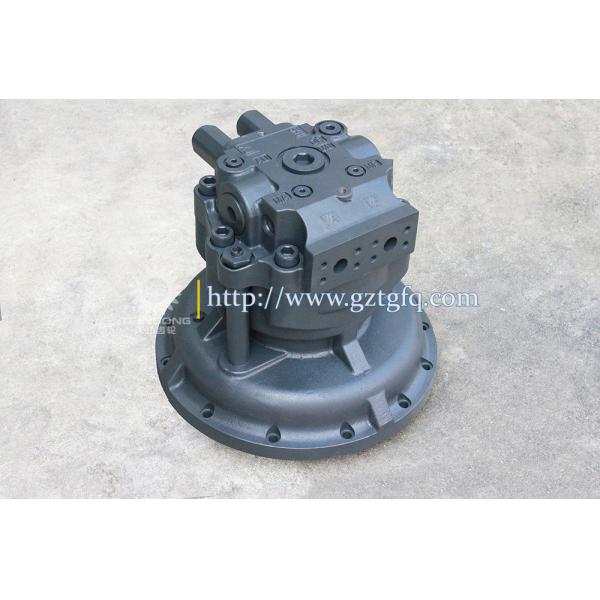

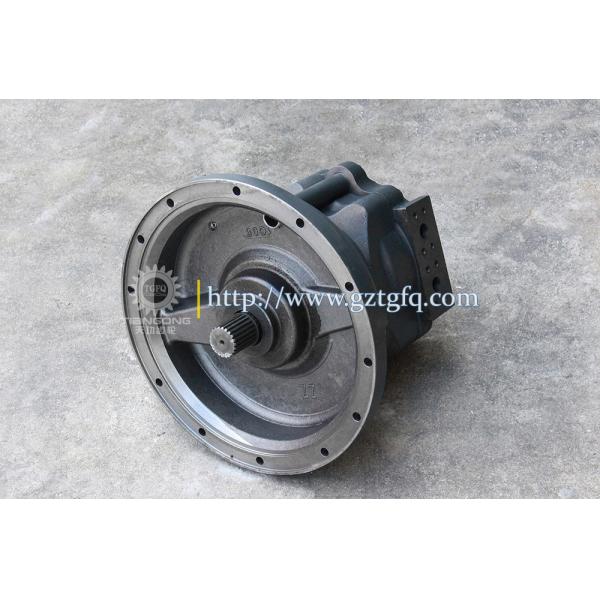

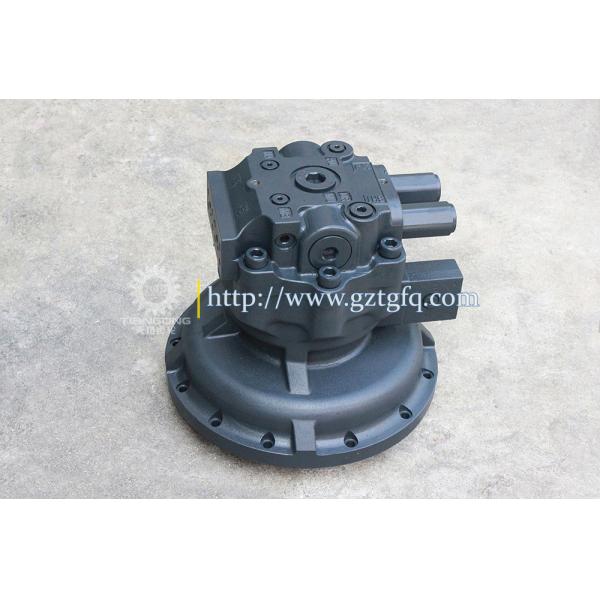

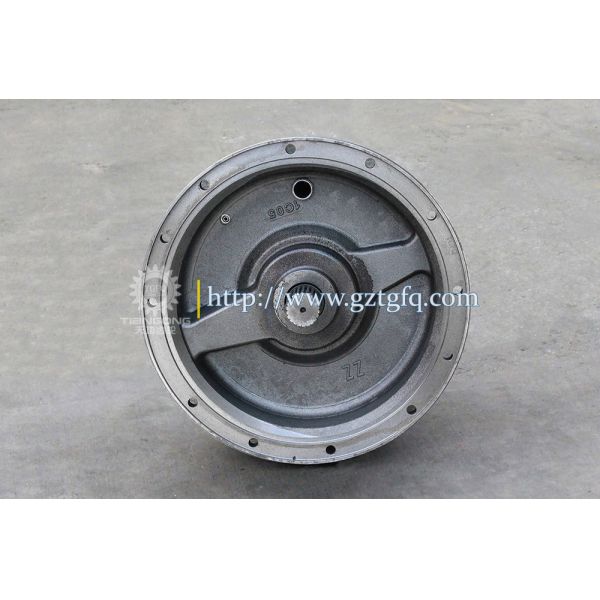

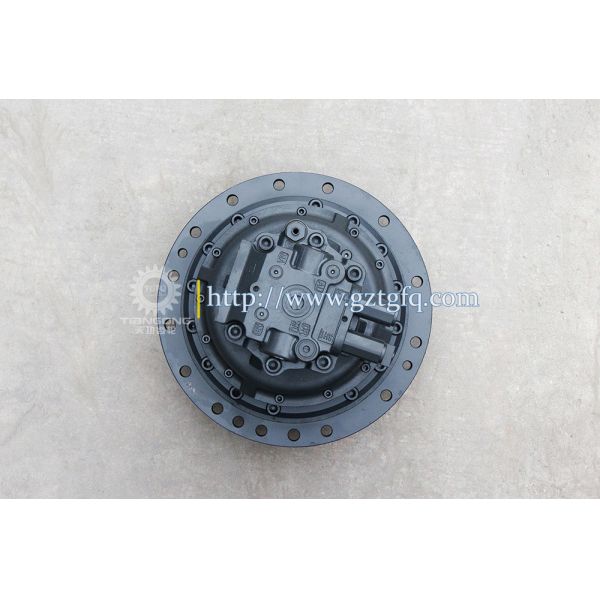

R300LC-9VS Picture Of Swing Motor:

Hyundai Swing Motor Assy For R300LC-9VS Excavator Hydraulic PartsHyundai Swing Motor Assy For R300LC-9VS Excavator Hydraulic PartsHyundai Swing Motor Assy For R300LC-9VS Excavator Hydraulic PartsHyundai Swing Motor Assy For R300LC-9VS Excavator Hydraulic Parts

Hyundai Swing Motor Assy For R300LC-9VS Excavator Hydraulic PartsHyundai Swing Motor Assy For R300LC-9VS Excavator Hydraulic PartsHyundai Swing Motor Assy For R300LC-9VS Excavator Hydraulic Parts

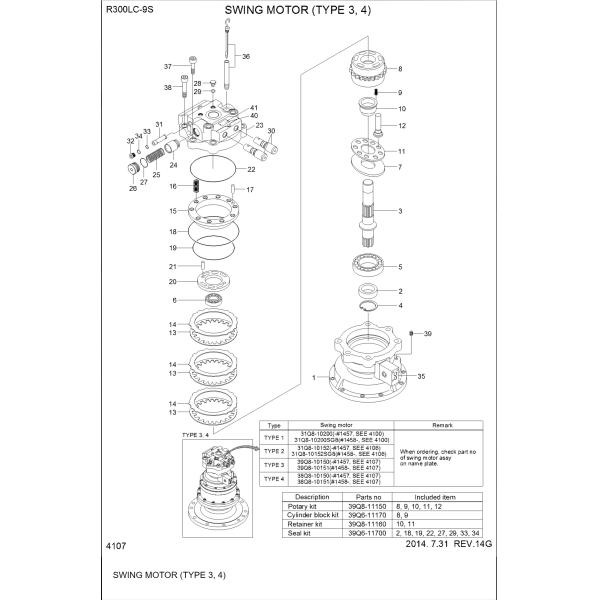

R300LC-9VS Drawing Of Swing Motor

Hyundai Swing Motor Assy For R300LC-9VS Excavator Hydraulic Parts

Pos. Part No Qty Parts name Comments
*. 39Q8-10150 [1] SWING MOTOR ASSY TYPE 3
*. 39Q8-10151 [1] SWING MOTOR ASSY TYPE 3
*. 38Q8-10150 [1] SWING MOTOR ASSY TYPE 4
*. 38Q8-10151 [1] SWING MOTOR ASSY TYPE 4
*-1. 39Q8-11100 [1] SWING MOTOR TYPE 3
*-1. 39Q8-11101 [1] SWING MOTOR TYPE 3
*-1. 38Q8-11100 [1] SWING MOTOR TYPE 4
*-1. 38Q8-11101 [1] SWING MOTOR TYPE 4
1 39Q8-11110 [1] CASING 　
K2. 39Q6-11660 [1] SEAL-OIL 　
3 39Q8-11120 [1] SHAFT 　
4 S601-040004 [1] RING-SNAP 　
5 39Q8-11130 [1] BEARING-ROLLER(R/GEAR) 　
6 39Q8-11140 [1] BEARING-ROLLER(COVER) 　
7 39Q6-11150 [1] PLATE-SWASH 　
K8. 39Q6-11180 [1] BLOCK-CYLINDER 　
K9. 39Q6-41290 [9] SPRING 　
K10. 39Q8-11170 [1] GUIDE-BALL 　
K11. 39Q6-11210 [1] PLATE-RETAINER 　
K12. 39Q6-11220 [9] PISTON ASSY 　
13 39Q6-41361 [5] PLATE-FRICTION 　
14 39Q6-41370 [5] PLATE-SEPERATED 　
15 39Q6-11250 [1] PISTON-PARKING 　
16 39Q8-11180 [26] SPRING 　
17 S471-800454 [1] PIN-SPRING 　
K18. Y172-043004 [1] O-RING 　
K19. Y172-041004 [1] O-RING 　
20 39QB-11270 [1] PLATE-VALVE 　
21 S471-800224 [2] PIN-SPRING 　
K22. Y172-042004 [1] O-RING 　
23 39Q6-11281 [1] CASING A-VALVE 　
24 39Q6-11290 [2] VALVE-CHECK 　
25 39Q6-11300 [2] SPRING-CHECK VALVE 　
26 39Q6-11671 [2] PLUG 　
K27. S631-040004 [2] O-RING 　
28 39Q6-41750 [3] PLUG 　
K29. S631-011004 [3] O-RING 　
30 39Q8-11190 [2] RELIEF VALVE ASSY 　
31 39Q8-11300 [2] ANTI ROTATING VLV ASSY 　
32 39Q6-11500 [2] PLUG 　
K33. S631-012004 [2] O-RING 　
K34. S631-018004 [2] O-RING 　
35 39Q6-11510 [1] VALVE ASSY-TIME DELAY 　
36 39Q6-11601 [1] GAUGE-LEVEL 　
37 S109-180456 [2] BOLT-SOCKET 　
38 S109-180556 [4] BOLT-SOCKET 　
39 P220-430202 [1] PLUG-HEX 　
40 39Q8-11320 [1] NAME PLATE TYPE 3
40 39Q8-11321 [1] NAME PLATE TYPE 3
40 38Q8-11321 [1] NAME PLATE TYPE 4
41 39Q6-41800 [2] RIVET 　
K. 39Q8-11150 [1] ROTARY KIT SEE ILLUST
K. 39Q6-11170 [1] BLOCK KIT-CYLINDER SEE ILLUST
K. 39Q8-11160 [1] RETAINER KIT SEE ILLUST
K. 39Q6-11700 [1] SEAL KIT SEE ILLUST
*-2. @ [1] SWING REDUCTION GEAR SEE 4117

Hyundai Swing Motor Assy For R300LC-9VS Excavator Hydraulic Parts

Hyundai Swing Motor Assy For R300LC-9VS Excavator Hydraulic Parts

Hyundai Swing Motor Assy For R300LC-9VS Excavator Hydraulic Parts

OUR STOCK

We have more than 4000 square meters of three-dimensional warehouse and more than 2000 square meters of outdoor warehouse
It ensures that we have sufficient inventory and respond to customers' needs faster. Fast delivery is our advantage.

Hyundai Swing Motor Assy For R300LC-9VS Excavator Hydraulic Parts

Hyundai Swing Motor Assy For R300LC-9VS Excavator Hydraulic Parts

FAQ:
Q: Can I order one of our samples for testing first?
A: Of course!


Q: How do I order?
A: You need to tell us the model and quantity you are interested in, and then we will issue a proforma invoice for you. The goods will be prepared after receiving the payment. The preparation time depends on the content of the order.


Q: Do you have a factory?
A: Yes, we have our own factory and have 23 years of production experience in the excavated gear industry.
