XKAY-01704 Hyundai Excavator Travel Gearbox R385-9 R360-9 R380-9
XKAY-01704 Hyundai Excavator Travel Gearbox R385-9 R360-9 R380-9
XKAY-01704 Hyundai Excavator Travel Gearbox R385-9 R360-9 R380-9
XKAY-01704 Hyundai Excavator Travel Gearbox R385-9 R360-9 R380-9
XKAY-01704 Hyundai Excavator Travel Gearbox R385-9 R360-9 R380-9
XKAY-01704 Hyundai Excavator Travel Gearbox R385-9 R360-9 R380-9
Specifications
Brand Name :
TGFQ
Model Number :
R375-7 R360-7 R380-9 R360-9
Place of Origin :
CHINA
MOQ :
1
Price :
500.00-1000.00USD
Payment Terms :
L/C, T/T, D/P, D/A
Supply Ability :
500 pcs / month
Delivery Time :
1-3days
Packaging Details :
NNER PACKING: Wrap by plastic film, clear label for each item. OUTER PACKING: Carton or Plywood Case PACKING SIZE: Depend on packing type
Product Name :
Excavator Travel Gearbox
Model :
R375-7 R360-7 R380-9 R360-9
Part Number :
XKAY-01704 / XKAY-02027 / XKAY-02147
Outer Packing :
Wooden Case
Port :
Huangpu or As Request
Description

TGFQ XKAY-01704 Hyundai Excavator R385-9 R360-9 R380-9 Travel Gearbox

Product Parameter:

Appliion: Crawler Excavator
Part name: Reduction Gearbox
Place of Origin: Guangzhou
Model: R375-7 R360-7 R380-9 R360-9
Part Number: XKAY-01704 / XKAY-02027 / XKAY-02147
Motor No. : 36TM1851140170
Size 26/24Holes
Condition: New

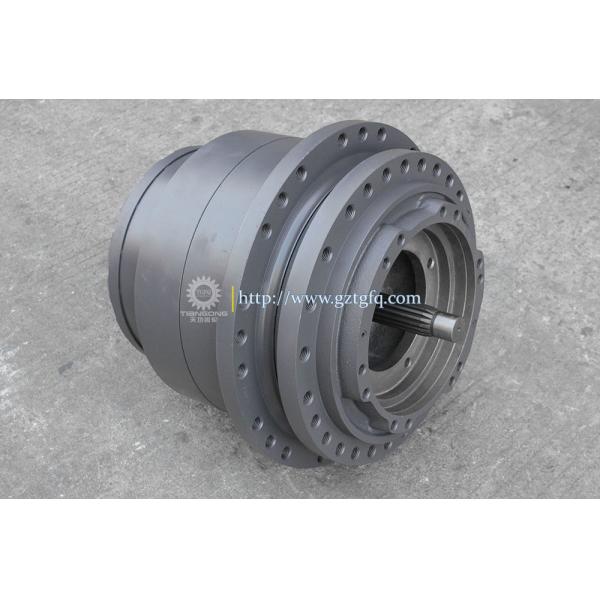

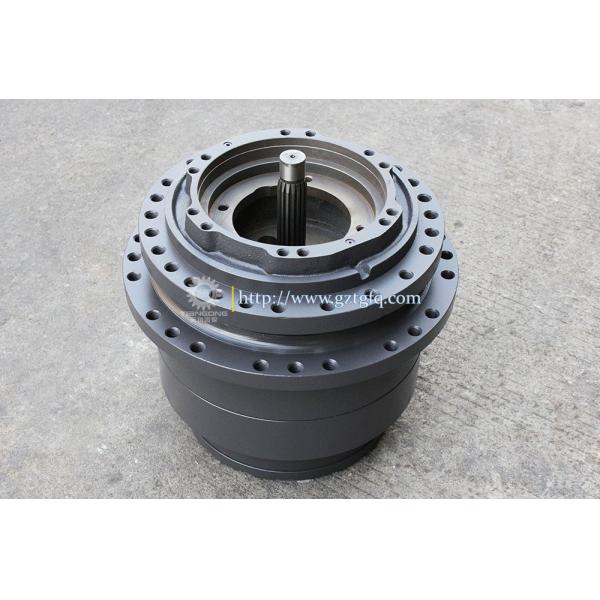

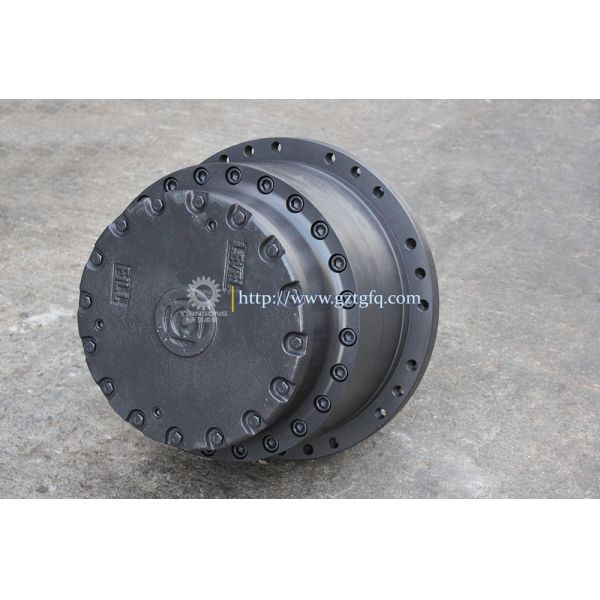

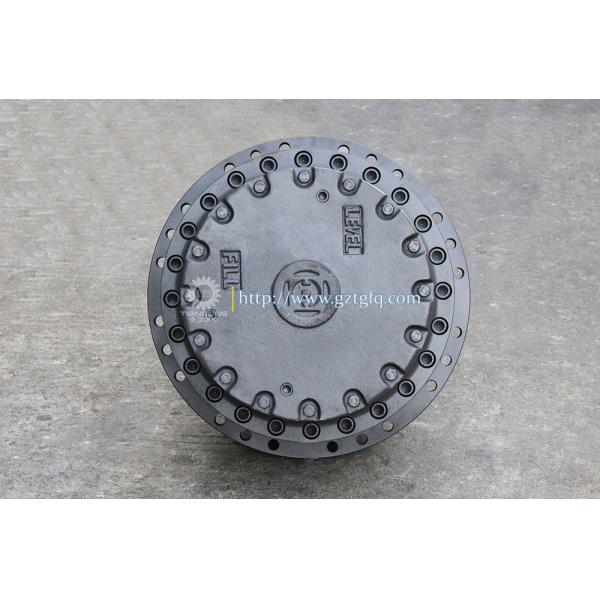

Product Photo:
XKAY-01704 Hyundai Excavator Travel Gearbox R385-9 R360-9 R380-9XKAY-01704 Hyundai Excavator Travel Gearbox R385-9 R360-9 R380-9XKAY-01704 Hyundai Excavator Travel Gearbox R385-9 R360-9 R380-9XKAY-01704 Hyundai Excavator Travel Gearbox R385-9 R360-9 R380-9

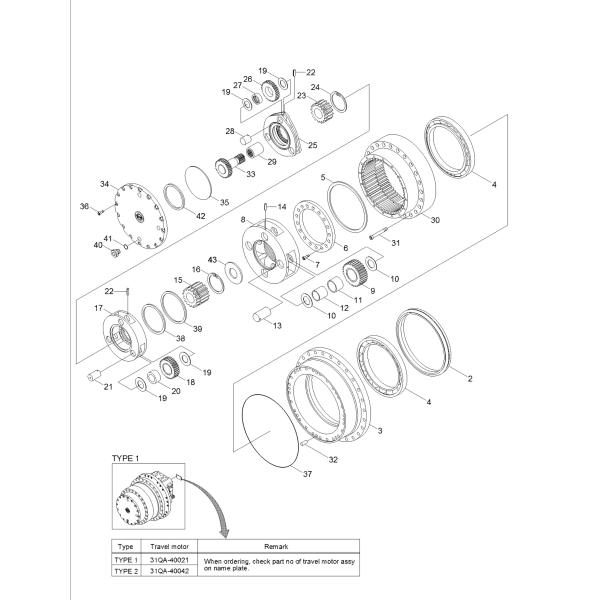

Part Drawing:
XKAY-01704 Hyundai Excavator Travel Gearbox R385-9 R360-9 R380-9
XKAY-01704 Hyundai Excavator Travel Gearbox R385-9 R360-9 R380-9

Parts on group TRAVEL REDUCTION GEAR :

Pos. Part No Qty Parts name
N*-2. XKAY-01704 [1] TRAVEL REDUCTION GEAR
*-2. XKAY-02027 [1] TRAVEL REDUCTION GEAR
*-2. XKAY-02147 [1] TRAVEL REDUCTION GEAR
2 XKAY-01624 [1] SEAL-FLOATING
3 XKAY-01625 [1] HUB
3 XKAY-02041 [1] HUB
4 XKAY-01185 [2] BEARING
5 XKAY-01186 [AR] SHIM
6 XKAY-01187 [1] GUIDE-BEARING
6 XKAY-02143 [1] GUIDE-BEARING
7 XKAY-01188 [18] BOLT-WRENCH
N8. XKAY-01626 [1] CARRIER(A)
N8. XKAY-01874 [1] CARRIER(A)
8 XKAY-02148 [1] CARRIER(A)
9 XKAY-01627 [4] GEAR-PLANETARY(A)
10 XKAY-01191 [8] PLATE(A)
11 XKAY-01192 [4] BEARING-NEEDLE
12 XKAY-01193 [4] BUSHING-BEARING
13 XKAY-01628 [4] PIN(A)
13 XKAY-01873 [4] PIN(A)
13 XKAY-02149 [4] PIN(A)
14 XKAY-01195 [4] PIN-SPRING
14 XKAY-01872 [4] PIN-SPRING
15 XKAY-01629 [1] GEAR-SUN(A)
16 XKAY-01198 [1] RING-SNAP
17 XKAY-01630 [1] CARRIER(B)
17 XKAY-01871 [1] CARRIER(B)
18 XKAY-01631 [3] GEAR-PLANETARY(B)
19 XKAY-01201 [12] PLATE(B.C)
20 XKAY-01202 [3] BEARING-NEEDLE
21 XKAY-01632 [3] PIN(B)
22 XKAY-01633 [6] PIN-SPRING
22 XKAY-01870 [6] PIN-SPRING
23 XKAY-01634 [1] GEAR-SUN(B)
24 XKAY-01206 [1] RING-SNAP
25 XKAY-01635 [1] CARRIER(C)
26 XKAY-01636 [3] GEAR-PLANETARY(C)
27 XKAY-01209 [3] BEARING-NEEDLE
28 XKAY-01637 [3] PIN(C)
29 XKAY-01211 [1] COUPLING
30 XKAY-01638 [1] GEAR-RING
31 XKAY-01213 [24] BOLT-WRENCH
32 XKAY-01214 [4] PIN-PARALLEL
33 XKAY-01215 [1] GEAR-DRAIVE
34 XKAY-01639 [1] COVER-END
35 XKAY-01640 [1] PLATE
36 XKAY-00901 [16] BOLT-WRENCH
37 XKAY-01220 [1] O-RING
38 XKAY-01641 [1] RING
39 XKAY-01642 [1] RING
40 XKAY-01643 [3] PLUG
41 XKAY-01703 [3] O-RING
42 XKAY-01217 [1] BUSHING
43 XKAY-01196 [1] PLATE-THRUST
*-1. @ [1] TRAVEL MOTOR ASSY


Description:

1. Quality Assurance and Direct Factory Price.
2. Durable ,Genuine new and Long Service Life.
3.Sufficient Supply and Timely Delivery after payment.
4.Excellent workmanship and 100% real product photography.
5.You can send a message directly to send the model you need, and I will give you a reasonable price.

XKAY-01704 Hyundai Excavator Travel Gearbox R385-9 R360-9 R380-9

XKAY-01704 Hyundai Excavator Travel Gearbox R385-9 R360-9 R380-9

XKAY-01704 Hyundai Excavator Travel Gearbox R385-9 R360-9 R380-9

OUR STOCK

We have more than 4000 square meters of three-dimensional warehouse and more than 2000 square meters of outdoor warehouse
It ensures that we have sufficient inventory and respond to customers' needs faster. Fast delivery is our advantage

XKAY-01704 Hyundai Excavator Travel Gearbox R385-9 R360-9 R380-9

XKAY-01704 Hyundai Excavator Travel Gearbox R385-9 R360-9 R380-9

FAQ:
common problem:
Q: What can you do
A: We can provide you with digging final drive and swing drive motors and reducer gearbox and their parts


Q: how long is the warranty period?
A: Within 6 months, we will provide you with maintenance spare parts within the warranty period free of charge.


Q: do you accept OEM or ODM?
A: Yes, you just need to provide your logo file or ideas.


Q: can I order one of our samples for testing first?
A: Of course!


Q: how do I order?
A: You need to tell us the model and quantity you are interested in, and then we will issue a proforma invoice for you. The goods will be prepared after receiving the payment. The preparation time depends on the content of the order


Q: do you have a factory?
A: Yes, we have our own factory and have 20 years of production experience in the excavated gear industry.
