9155748 Hitachi Excavator Final Drive Gearbox EX300-5 EX350-5
9155748 Hitachi Excavator Final Drive Gearbox EX300-5 EX350-5
9155748 Hitachi Excavator Final Drive Gearbox EX300-5 EX350-5
9155748 Hitachi Excavator Final Drive Gearbox EX300-5 EX350-5
Specifications
Brand Name :
TGFQ
Model Number :
EX300-5 EX350-5
Place of Origin :
CHINA
MOQ :
1
Price :
500.00-4000.00USD
Payment Terms :
L/C, T/T, D/P, D/A
Supply Ability :
50 pcs / month
Delivery Time :
1-3days
Packaging Details :
NNER PACKING: Wrap by plastic film, clear label for each item. OUTER PACKING: Carton or Plywood Case PACKING SIZE: Depend on packing type
Part Number :
9149237 / 9155748
Sprocket :
20 Holes
Product Name :
Excavator Final Drive Gearbox
Weight :
417KG
Packing :
63*63*79CM
Shaft :
16/24T
Description

9155748 Hitachi Excavator Final Drive Gearbox EX300-5 EX350-5

9149237 For Apply EX300-5 EX350-5 Hitachi Excavator Travel Gearbox

Product parameter:

Product name: Excavator Final Drive Gearbox
Place of Origin: China(Mainland)
Model: EX300-5 EX350-5
Part number: 9149237 / 9155748
Motor case: 20 Holes
MOQ: 1 PCS
Payment term: L/C, T/T, D/P, D/A
Delivery time: Within 1-3 days after receiving the payment
Means of Transport:
By Sea, By Air or By Express

9155748 Hitachi Excavator Final Drive Gearbox EX300-5 EX350-59155748 Hitachi Excavator Final Drive Gearbox EX300-5 EX350-59155748 Hitachi Excavator Final Drive Gearbox EX300-5 EX350-59155748 Hitachi Excavator Final Drive Gearbox EX300-5 EX350-5

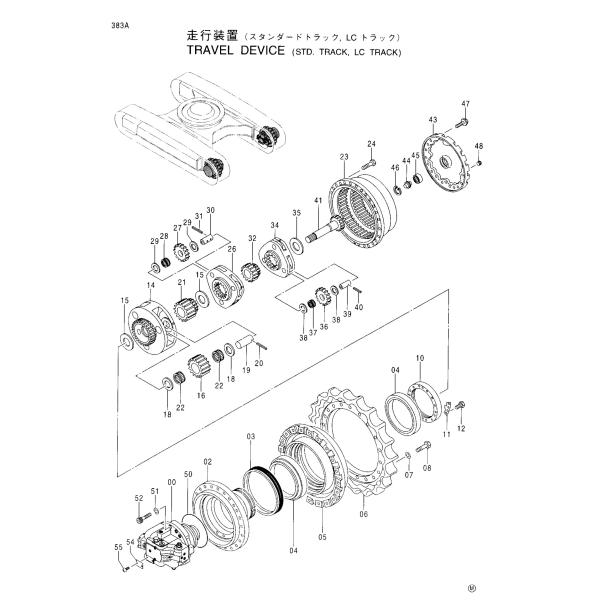

Drawing:

9155748 Hitachi Excavator Final Drive Gearbox EX300-5 EX350-5

Pos. Part No Qty Parts name
-9155748 [2] TRAVEL DEVICE ASSY
9149237 [2] TRAVEL DEVICE ASSY
0 -9155694 [1] MOTOR;OIL
0 9149125 [1] MOTOR;OIL
2 1022194 [1] HOUSING
3 4066695 [1] SEAL;GROUP
4 4192975 [2] BRG.;ROL.
5 1022179 [1] DRUM
6 1022168 [1] SPROCKET
7 A590920 [20] WASHER;SPRING
8 J932060 [20] BOLT
10 3036256 [1] NUT
11 4192974 [1] PLATE;LOCK
12 J901225 [2] BOLT
14 1022198 [1] CARRIER
15 4192979 [2] SPACER
16 3075003 [3] GEAR;PLANETARY
18 4269470 [6] PLATE;THRUST
19 4269452 [3] PIN
20 4192021 [3] PIN;SPRING
21 3075005 [1] GEAR;SUN
22 4371402 [6] BRG.;NEEDLE
23 1022195 [1] GEAR;RING
24 J931640 [28] BOLT
26 1022197 [1] CARRIER
27 3075002 [3] GEAR;PLANETARY
28 4183818 [3] BRG.;NEEDLE
29 4284521 [6] PLATE;THRUST
30 4269451 [3] PIN
31 4197763 [3] PIN;SPRING
32 3074989 [1] GEAR;SUN
34 1022196 [1] CARRIER
35 4308769 [1] SPACER
36 3075001 [3] GEAR;PLANETARY
37 4269471 [3] BRG.;NEEDLE
38 4284520 [6] PLATE;THRUST
39 4269472 [3] PIN
40 4192020 [3] PIN;SPRING
41 2038915 [1] SHAFT;PROP.
43 2038904 [1] COVER
44 4277474 [1] PIN;STOPPER
45 4278168 [1] BRG.;BALL
46 930451 [1] RING;RETAINING
47 J011230 [16] BOLT;SEMS
48 4245797 [3] PLUG
50 4269473 [1] O-RING
51 4287213 [4] WASHER;SPRING
52 M341885 [4] BOLT;SOCKET
54 3053559 [1] NAME-PLATE
55 M492564 [2] SCREW;DRIVE

9155748 Hitachi Excavator Final Drive Gearbox EX300-5 EX350-5

9155748 Hitachi Excavator Final Drive Gearbox EX300-5 EX350-5

9155748 Hitachi Excavator Final Drive Gearbox EX300-5 EX350-5

OUR STOCK

We have more than 4000 square meters of three-dimensional warehouse and more than 2000 square meters of outdoor warehouse
It ensures that we have sufficient inventory and respond to customers' needs faster. Fast delivery is our advantage.

9155748 Hitachi Excavator Final Drive Gearbox EX300-5 EX350-5

9155748 Hitachi Excavator Final Drive Gearbox EX300-5 EX350-5

FAQ:
Q: What can you do?
A: We can provide you with digging final drive and swing drive motors and reducer gearbox and their parts.


Q: How long is the warranty period?
A: Within 3/6 months, we will provide you with maintenance spare parts within the warranty period free of charge.


Q: Can I order one of our samples for testing first?
A: Of course!


Q: How do I order?
A: You need to tell us the model and quantity you are interested in, and then we will issue a proforma invoice for you. The goods will be prepared after receiving the payment. The preparation time depends on the content of the order.


Q: Do you have a factory?
A: Yes, we have our own factory and have 23 years of production experience in the excavated gear industry.
