E345D 345D E349D Excavator Travel Gearbox 227-6045 227-6044
E345D 345D E349D Excavator Travel Gearbox 227-6045 227-6044
E345D 345D E349D Excavator Travel Gearbox 227-6045 227-6044
E345D 345D E349D Excavator Travel Gearbox 227-6045 227-6044
Specifications
Brand Name :
TGFQ
Model Number :
E345D 345D E349D
Place of Origin :
CHINA
MOQ :
1
Price :
500.00-1000.00USD
Payment Terms :
L/C, T/T, D/P, D/A
Supply Ability :
500 pcs / month
Delivery Time :
1-3days
Packaging Details :
NNER PACKING: Wrap by plastic film, clear label for each item. OUTER PACKING: Carton or Plywood Case PACKING SIZE: Depend on packing type
Product Name :
345D Excavator Travel Parts
Part Number :
227-6045 / 227-6044
Holes :
20/20
Model :
E345D 345D E349D
Weight :
612KG
Teeth :
15T
Description

E345D 345D E349D Excavator Travel Gearbox 227-6045 227-6044

Gearbox For Apply E345D 345D E349D Excavator Final Drive

Product Parameter:

Product Name: 345D Excavator Travel Parts
Place of Origin: China(Mainland)
Model: E345D 345D E349D
Part Number: 227-6045 / 227-6044
MOQ: 1 PCS
Payment term: L/C, T/T, D/P, D/A
Delivery time: Within 1-3 days after receiving the payment
Means of Transport:
By Sea, By Air or By Express

EXCAVATOR 330DL 330D MH 345C 345C L 345C MH 345D 345D L345D L VG 349D 349D L
MOBILE HYD POWER UNIT 345C L

E345D 345D E349D Excavator Travel Gearbox 227-6045 227-6044E345D 345D E349D Excavator Travel Gearbox 227-6045 227-6044E345D 345D E349D Excavator Travel Gearbox 227-6045 227-6044

E345D 345D E349D Excavator Travel Gearbox 227-6045 227-6044

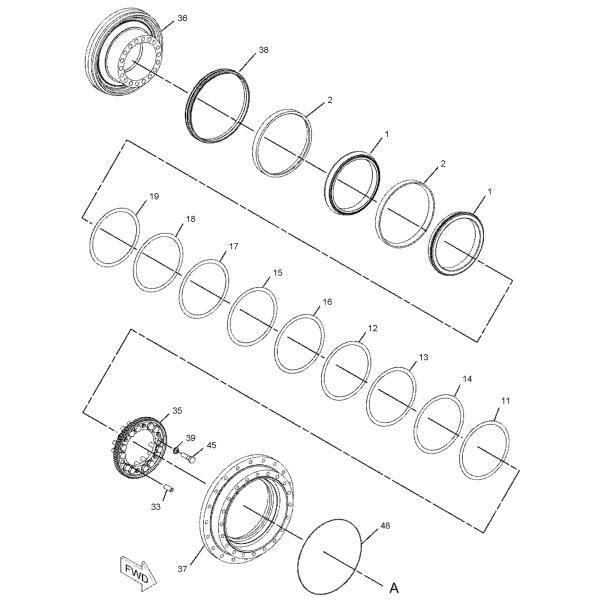

Drawing:
E345D 345D E349D Excavator Travel Gearbox 227-6045 227-6044
E345D 345D E349D Excavator Travel Gearbox 227-6045 227-6044
Pos. Part No Qty Parts name
1 2R-0524 [2] CONE-BEARING
2 2R-0525 [2] CUP-BEARING
3 4I-7576 [14] WASHER (66.3X104X3-MM THK)
4 7M-8485 [2] SEAL-O-RING
5 7Y-0661 [3] SHAFT-PLANETARY
6 7Y-0662 [4] SHAFT-PLANETARY
7 199-4583 [11] BEARING AS
8 7Y-0808 B [1] SHIM (1.6-MM THK)
9 7Y-1469 [1] COUPLING
10 7Y-1470 [1] GEAR-SUN (21-TEETH)
11 7Y-1472 B [1] SHIM (0.15-MM THK)
12 7Y-1473 B [1] SHIM (0.3-MM THK)
13 7Y-1474 B [1] SHIM (0.4-MM THK)
14 7Y-1475 B [1] SHIM (0.5-MM THK)
15 7Y-1476 B [1] SHIM (0.6-MM THK)
16 7Y-1477 B [1] SHIM (0.7-MM THK)
17 7Y-1478 B [1] SHIM (0.8-MM THK)
18 7Y-1479 B [1] SHIM (1-MM THK)
19 7Y-1480 B [1] SHIM (1.6-MM THK)
20 7Y-1482 [1] CARRIER-PLANETARY
21 7Y-1483 [1] GEAR-RING (63-TEETH)
22 7Y-1485 [1] CARRIER-PLANETARY
23 7Y-1487 [1] GEAR-RING (85-TEETH)
24 7Y-1488 [1] CARRIER AS
7Y-0656 [3] SHAFT-PLANETARY
25 7Y-1491 [1] GEAR-SUN (21-TEETH)
26 7Y-1493 [1] SPACER (8.7X50X14-MM THK)
27 7Y-1495 [3] GEAR-PLANETARY (29-TEETH)
28 7Y-1498 [1] COVER
29 7Y-1499 [3] GEAR-PLANETARY (20-TEETH)
30 7Y-1504 [4] GEAR-PLANETARY (20-TEETH)
31 7Y-5235 M [20] BOLT (M24X3X190-MM)
32 110-7217 [2] RING-RETAINING
33 114-1541 [6] PIN-DOWEL
34 169-5559 [1] GEAR-SUN (26-TEETH)
35 199-4719 [1] GEAR-COUPLING
36 200-3489 [1] HOUSING-MOTOR
37 200-3490 [1] HOUSING-GEAR
38 205-9025 [1] SEAL GP-DUO-CONE
205-9024 [2] RING-TORIC
39 227-6048 [12] WASHER (26X40X4-MM THK)
40 094-0584 [6] WASHER (40.3X72X1-MM THK)
41 199-4582 [3] BEARING AS
42 095-0891 [7] PIN-SPRING
43 096-3216 M [2] SETSCREW-SOCKET (M12X1.75X12-MM)
44 3E-2338 [2] PLUG-PIPE (FINAL DRIVE, OIL DRAIN, FILL)
45 6V-8133 M [12] BOLT (M24X3X80-MM)
46 7Y-1484 [1] SPACER (191X221X8.5-MM THK)
47 7Y-1492 [2] SPACER (67X101.1X10-MM THK)
48 8C-5240 [1] SEAL-O-RING
49 8T-3957 M [10] BOLT-SOCKET HEAD (M12X1.75X30-MM)
50 8T-4167 [20] WASHER-HARD (26X44X4-MM THK)
51 8T-4240 [3] RING-RETAINING
52 1U-8846 B SEALANT-GASKET
B USE AS REQUIRED
M METRIC PART

E345D 345D E349D Excavator Travel Gearbox 227-6045 227-6044

E345D 345D E349D Excavator Travel Gearbox 227-6045 227-6044

E345D 345D E349D Excavator Travel Gearbox 227-6045 227-6044

OUR STOCK

We have more than 4000 square meters of three-dimensional warehouse and more than 2000 square meters of outdoor warehouse
It ensures that we have sufficient inventory and respond to customers' needs faster. Fast delivery is our advantage.

E345D 345D E349D Excavator Travel Gearbox 227-6045 227-6044

E345D 345D E349D Excavator Travel Gearbox 227-6045 227-6044

FAQ:
Q: What can you do?
A: We can provide you with digging final drive and swing drive motors and reducer gearbox and their parts.


Q: How long is the warranty period?
A: Within 3/6 months, we will provide you with maintenance spare parts within the warranty period free of charge.


Q: Can I order one of our samples for testing first?
A: Of course!


Q: How do I order?
A: You need to tell us the model and quantity you are interested in, and then we will issue a proforma invoice for you. The goods will be prepared after receiving the payment. The preparation time depends on the content of the order.


Q: Do you have a factory?
A: Yes, we have our own factory and have 23 years of production experience in the excavated gear industry.
