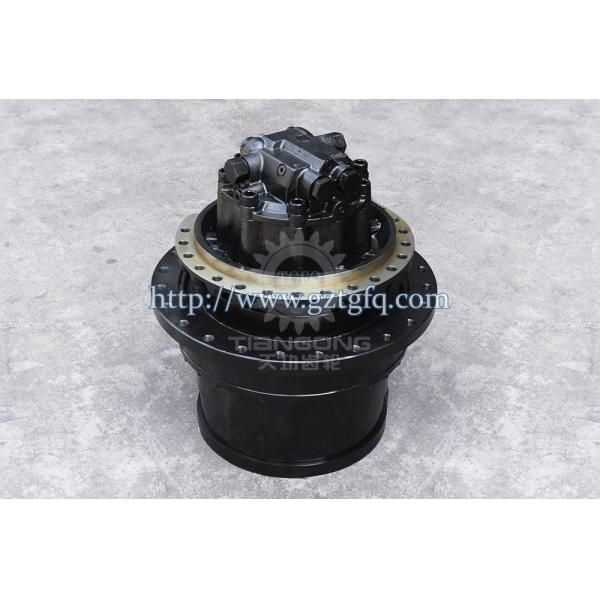

9150849 Excavator Hitachi Final Drive Assembly ZX270-3 TGFQ
9150849 Excavator Hitachi Final Drive Assembly ZX270-3 TGFQ
9150849 Excavator Hitachi Final Drive Assembly ZX270-3 TGFQ
9150849 Excavator Hitachi Final Drive Assembly ZX270-3 TGFQ
Specifications
Brand Name :
TGFQ
Model Number :
ZX270-3
Place of Origin :
CHINA
MOQ :
1
Price :
1000.00-5000.00usd
Payment Terms :
L/C, T/T, D/P, D/A
Supply Ability :
500 pcs / month
Delivery Time :
1-3days
Packaging Details :
NNER PACKING: Wrap by plastic film, clear label for each item. OUTER PACKING: Carton or Plywood Case PACKING SIZE: Depend on packing type
Model :
ZX270-3
Product Name :
Hitachi Final Drive
Part Number :
9255876
Weight :
487KG
Packing :
83*83*75CM
Shaft :
16/52T
Description

9150849 Excavator Hitachi Final Drive Assembly ZX270-3 TGFQ

9150849 Hitachi ZX270-3 Final Device Travel Drive Motor Final Drive Assy TGFQ

PRODUCT DESCRIPTION
Model: ZX270-3
egory: ZAX270 Excavator Final Drive
Brand: TGFQ
Place of Origin: China
Outer Packing: Wooden case
Holes: 20/20
Part Number: 9255876
Means of Transport: By Sea, By Air or By Express
Guarantee: We will check the starter motor and send detail pictures to buyer to confirm before shipping.
ZAX270 Excavator Final Drive:
9150849 Excavator Hitachi Final Drive Assembly ZX270-3 TGFQ9150849 Excavator Hitachi Final Drive Assembly ZX270-3 TGFQ9150849 Excavator Hitachi Final Drive Assembly ZX270-3 TGFQ
Drawing:
9150849 Excavator Hitachi Final Drive Assembly ZX270-3 TGFQ
Pos. Part No Qty Parts name Comments
9255880 [1] TRAVEL DEVICE I 9256990 <for assembly of machine>
9256990 [1] TRAVEL DEVICE <for transportation>
0 9255876 [1] MOTOR;OIL (TRAVEL) I 9251292 <for assembly of machine>
0 9251292 [1] MOTOR;OIL (TRAVEL) <for transportation>
2 1033048 [1] DRUM
3 4066695 [1] SEAL;GROUP I 4664392
3 4664392 [1] SEAL;GROUP
4 4629674 [2] BRG.;ROL.
7 A590920 [24] WASHER;SPRING
8 J932060 [24] BOLT
9 1033227 [1] SPROCKET
10 3094717 [1] NUT
11 4470326 [1] PLATE;LOCK
12 J901225 [2] BOLT
14 1022198 [1] CARRIER
15 4401293 [3] SPACER
16 3075003 [3] GEAR;PLANETARY
17 4455088 [6] BRG.;NEEDLE
18 4269470 [6] PLATE;THRUST
19 4269452 [3] PIN
20 4192021 [3] PIN;SPRING
21 3075005 [1] GEAR;SUN
23 1022195 [1] GEAR;RING
24 J931640 [28] BOLT
26 1022197 [1] CARRIER
27 3075002 [3] GEAR;PLANETARY
28 4455099 [3] BRG.;NEEDLE
29 4284521 [6] PLATE;THRUST
30 4269451 [3] PIN
31 4197763 [3] PIN;SPRING
32 3074989 [1] GEAR;SUN
34 1022196 [1] CARRIER
36 3075001 [3] GEAR;PLANETARY
37 4455098 [3] BRG.;NEEDLE
38 4284520 [6] PLATE;THRUST
39 4269472 [3] PIN
40 4192020 [3] PIN;SPRING
41 2048000 [1] SHAFT;PROP.
43 2045031 [1] COVER
44 4277474 [1] PIN;STOPPER
45 4278168 [1] BRG.;BALL
46 930451 [1] RING;RETAINING
48 4245797 [3] PLUG
49 4609016 [16] BOLT;SEMS Y 4699148
49 4699148 [16] BOLT;SEMS
51 +++++++ [1] NAME-PLATE
52 M492564 [2] SCREW;DRIVE

9150849 Excavator Hitachi Final Drive Assembly ZX270-3 TGFQ

9150849 Excavator Hitachi Final Drive Assembly ZX270-3 TGFQ

9150849 Excavator Hitachi Final Drive Assembly ZX270-3 TGFQ

OUR STOCK

We have more than 4000 square meters of three-dimensional warehouse and more than 2000 square meters of outdoor warehouse
It ensures that we have sufficient inventory and respond to customers' needs faster. Fast delivery is our advantage.

9150849 Excavator Hitachi Final Drive Assembly ZX270-3 TGFQ

9150849 Excavator Hitachi Final Drive Assembly ZX270-3 TGFQ

FAQ:
Q: What can you do?
A: We can provide you with digging final drive and swing drive motors and reducer gearbox and their parts.


Q: How long is the warranty period?
A: Within 3/6 months, we will provide you with maintenance spare parts within the warranty period free of charge.

Q: Can I order one of our samples for testing first?
A: Of course!


Q: How do I order?
A: You need to tell us the model and quantity you are interested in, and then we will issue a proforma invoice for you. The goods will be prepared after receiving the payment. The preparation time depends on the content of the order.


Q: Do you have a factory?
A: Yes, we have our own factory and have 23 years of production experience in the excavated gear industry.
