SK460-8 Kobelco Large Excavator Final Drive Assy TGFQ LS15V00022F4
SK460-8 Kobelco Large Excavator Final Drive Assy TGFQ LS15V00022F4
SK460-8 Kobelco Large Excavator Final Drive Assy TGFQ LS15V00022F4
SK460-8 Kobelco Large Excavator Final Drive Assy TGFQ LS15V00022F4
SK460-8 Kobelco Large Excavator Final Drive Assy TGFQ LS15V00022F4
SK460-8 Kobelco Large Excavator Final Drive Assy TGFQ LS15V00022F4
SK460-8 Kobelco Large Excavator Final Drive Assy TGFQ LS15V00022F4
SK460-8 Kobelco Large Excavator Final Drive Assy TGFQ LS15V00022F4
Specifications
Brand Name :
TGFQ
Model Number :
SK460-8
Place of Origin :
CHINA
MOQ :
1
Price :
1000.00-5000.00usd
Payment Terms :
L/C, T/T, D/P, D/A
Supply Ability :
50 pcs / month
Delivery Time :
2-4days
Packaging Details :
NNER PACKING: Wrap by plastic film, clear label for each item. OUTER PACKING: Carton or Plywood Case PACKING SIZE: Depend on packing type
Product Name :
Excavator Final drive
Part Model :
SK460-8
Part Number :
LS15V00022F4
Outer Packing :
Wooden case
Brand :
TGFQ
Applicable Industries :
Machinery Repair Shops, Energy & Mining
Description

SK460-8 Kobelco Excavator Final Drive Assy TGFQ LS15V00022F4

LS15V00022F4 SK460-8 Travel motor Apply For Kobelco Excavator Final Drive Assy

PRODUCT DESCRIPTION

Model: SK460-8

egory: Excavator Final Drive

Brand: TGFQ

Place of Origin: China

Part No.:GM85VA

Payment Term: L/C, T/T, D/P, D/A

Package Size: 74*74*80 CM

Means of Transport: By Sea, By Air or By Express

Guarantee: We will check the starter motor and send detail pictures to buyer to confirm before shipping.

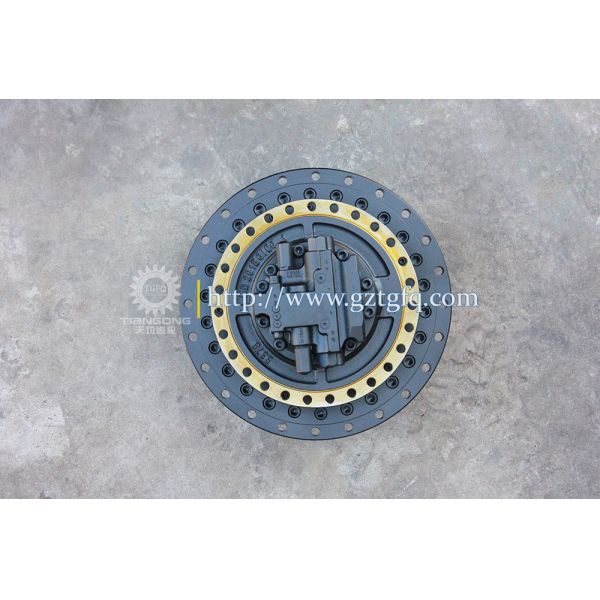

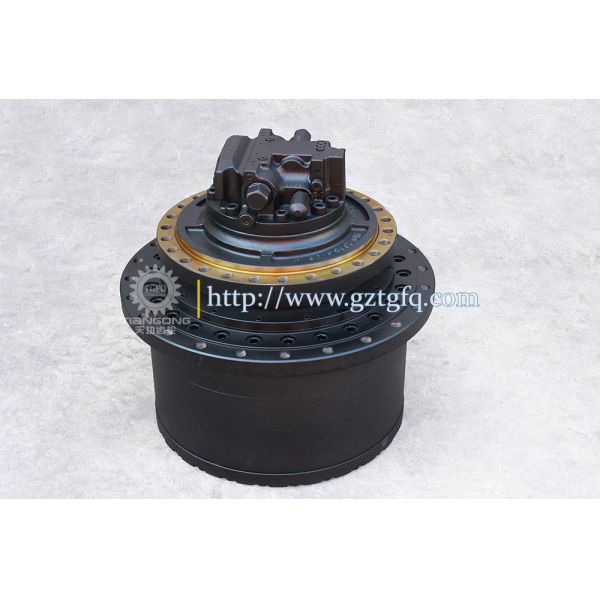

SK460-8 Final Device Assy Photo:

SK460-8 Kobelco Large Excavator Final Drive Assy TGFQ LS15V00022F4SK460-8 Kobelco Large Excavator Final Drive Assy TGFQ LS15V00022F4SK460-8 Kobelco Large Excavator Final Drive Assy TGFQ LS15V00022F4SK460-8 Kobelco Large Excavator Final Drive Assy TGFQ LS15V00022F4SK460-8 Kobelco Large Excavator Final Drive Assy TGFQ LS15V00022F4

(35.353.03[01]) - HYDRAULIC MOTOR, ASSY Kobelco:

SK460-8 Kobelco Large Excavator Final Drive Assy TGFQ LS15V00022F4

Parts on group (SK485LC-9) - ACERA MARK 9 EXCAVATOR, ASN YS12U0802 (11/11-12/13):

Pos. Part No Qty Parts Name Comments
.. LS15V00022F4 [1] HYDRAULIC MOTOR KOB Assembly, Incl 1 - 43
1 NSS [1] NOT SOLD SEPARAT CON Body
2 NSS [2] NOT SOLD SEPARAT CON Plug
3 NSS [1] NOT SOLD SEPARAT CON Oil ring
4 2441U1040S19 [1] COVER KOB Ring, Retaining
5 LC15V00023S035 [1] BALL KOB
6 LS15V00022S008 [1] SHAFT KOB
7 LS15V00022S009 [1] BEARING KOB
8 LC15V00023S040 [1] BLOCK KOB
9 2441U1030S29 [9] SPRING KOB
10 LC15V00023S042 [1] HOLDER KOB Holder
11 LC15V00021S024 [1] BALL JOINT KOB
12 LC15V00021S004 [1] RETAINER KOB
13 2441U1040S7 [5] PLATE KOB
14 2441U1040S5 [4] PLATE KOB
15 2441U1040S6 [1] PISTON KOB Piston
16 LS15V00004S052 [1] O-RING KOB
17 LS15V00004S053 [1] O-RING KOB
18 LS15V00022S023 [1] COVER KOB
19 2436U1427S25 [14] PLUG KOB
20 2436U1317S13 [2] PLUG KOB
21 ZD12P01100 [2] O-RING KOB ID 10.8mm x OD 13.2mm
22 YN15V00017S038 [5] PLUG KOB
23 ZD12P00800 [5] O-RING,1.9mm Thk x 7.8mm ID, 90 Duro KOB ID 7.8mm x OD 9.7mm
24 YN15V00017S017 [3] CHECK VALVE KOB
25 YN15V00017S026 [3] SPRING KOB
26 YN15V00037S376 [2] ORIFICE SM Superseded by part number: GN15V00010S024
27 ZD12P01250 [1] O-RING KOB ID 12.3mm X OD 14.7mm
28 GN15V00010S025 [1] RESTRICTOR KOB Orifice
29 ZD12P01500 [1] O-RING KOB
30 2441U1040S40 [1] O-RING KOB
31 2441U1040S32 [1] ROLLER BEARING KOB
32 LS15V00014S033 [2] SHIM KOB Superseded by part number: 2441U1040S34
33 2441U1040S35 [1] PIN KOB
34 LS15V00014S008 [1] PLATE KOB
35 YN15V00003S030 [14] SPRING KOB
36 ZS23C18050 [10] SCREW,Hex Socket Head, M18 x 50mm KOB Cap
37 2441U1040S10 [1] COUPLING JOINT KOB
38 ZR26X04000 [1] RING KOB Snap
39 NSS [2] NOT SOLD SEPARAT CON Spool
40 NSS [1] NOT SOLD SEPARAT CON Plate
41 NSS [1] NOT SOLD SEPARAT CON Piston
42 NSS [1] NOT SOLD SEPARAT CON Piston Seal
43 NSS [9] NOT SOLD SEPARAT CON Piston Assembly
. . LC15V00007R100 [1] REPAIR KIT KOB Incl 13(5), 14(4)
. . LC15V00021R300 [1] SHIM KOB Incl 32(6) Superseded by part number: 2441U1040S34
. . LS15V00022R800 [1] REPAIR KIT KOB Incl 2436R874S5(2), Body LS53D00007F2(1)
. . LS15V00022R700 [1] REPAIR KIT KOB Incl 43(9) Superseded by part number: LS15V00014R100
. . LC15V00023R100 [1] KIT SM Incl 41(1), 42(1)
. . LC15V00023R200 [1] KIT SM Incl 39(2), 40(1)

SK460-8 Kobelco Large Excavator Final Drive Assy TGFQ LS15V00022F4

SK460-8 Kobelco Large Excavator Final Drive Assy TGFQ LS15V00022F4

SK460-8 Kobelco Large Excavator Final Drive Assy TGFQ LS15V00022F4

OUR STOCK

We have more than 4000 square meters of three-dimensional warehouse and more than 2000 square meters of outdoor warehouse
It ensures that we have sufficient inventory and respond to customers' needs faster. Fast delivery is our advantage

SK460-8 Kobelco Large Excavator Final Drive Assy TGFQ LS15V00022F4

SK460-8 Kobelco Large Excavator Final Drive Assy TGFQ LS15V00022F4

FAQ:
Common problem:
Q: What can you do
A: We can provide you with digging final drive and swing drive motors and reducer gearbox and their parts


Q: How long is the warranty period?
A: Within 6/12 months, we will provide you with maintenance spare parts within the warranty period free of charge.


Q: Can I order one of our samples for testing first?
A: Of course!


Q: How do I order?
A: You need to tell us the model and quantity you are interested in, and then we will issue a proforma invoice for you. The goods will be prepared after receiving the payment. The preparation time depends on the content of the order


Q: Do you have a factory?
A: Yes, we have our own factory and have 22 years of production experience in the excavated gear industry.
