Our Excavator Final Drive Motor is available in custom colors to match your equipment’s aesthetic, and comes standard in a sleek black factory color. The travel motor provides powerful and precise movement for your excavator, ensuring efficient operation and increased productivity on the job site.
Whether you’re looking to replace a worn-out travel motor or upgrade your excavator’s capabilities, our Excavator Parts Travel Motor is the ideal choice. With its rugged construction and superior performance, it is sure to meet the demands of even the most challenging excavator applications.
Keywords: Excavator Travel Motor Parts, Excavator Travel Motor, Excavator Aftermarket Parts
Product Attribute | Value |
---|---|
Excavator Motor | Hydraulic Swing Motor & Travel Motor Drive |
Excavator Travel Reducer | Planetary Reducer |
Excavator Drive Motor | Hydraulic Swing Motor & Travel Motor Drive |
Transport Packaging | Wooden Box |
Installation | Bolt-on |
Packing Size | Depend On Packing Type |
Custom colors | Yes |
Factory Color | Black |
Applicable Industries | Machinery Repair Shops, Energy & Mining |
Weight | Varies Depending On Model |
The Excavator Travel Drive Catalog is a durable and reliable product that is suitable for use in various industries such as Machinery Repair Shops and Energy & Mining. It is designed to provide excellent performance and long-lasting service life, making it an ideal choice for heavy-duty applications.
The Excavator Travel Drive Catalog is equipped with a Planetary Reducer that enables it to handle high loads and provide smooth and efficient operation. The reducer type is known for its high torque capacity and low noise level, making it a perfect fit for excavator applications.
Installation of the Excavator Travel Drive Catalog is a breeze as it is a bolt-on type product. This means that it can be easily mounted onto the excavator without any additional modifications required.
TPSV's Excavator Travel Drive Catalog comes in a sleek black color as standard, giving it a professional and modern look. The weight of the product varies depending on the model chosen, ensuring that there is a suitable option for every excavator make and model.
In summary, the Excavator Travel Drive Catalog from TPSV is a high-quality product that is perfect for use in heavy-duty excavator applications. Its Planetary Reducer enables it to handle high loads and provide smooth operation, while its bolt-on installation ensures easy mounting onto the excavator. It is an excellent choice for Machinery Repair Shops and Energy & Mining industries.

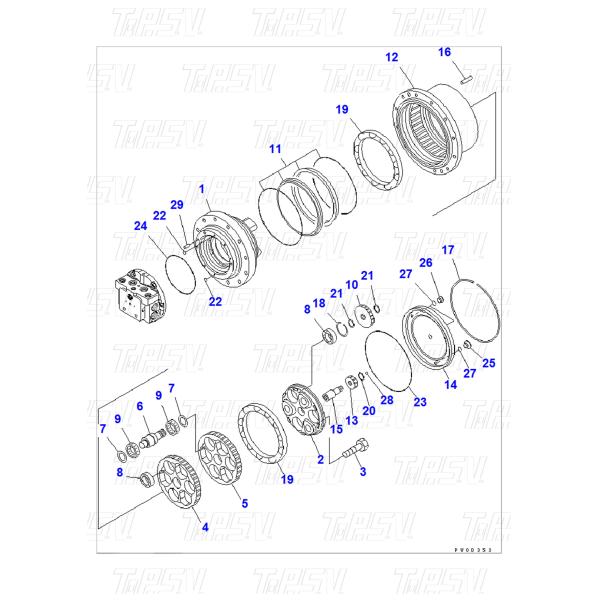

No. | PART No. | QTY | PART NAME | SIZE & NOTE |
21W-60-41201 | 1 | MOTOR ASSY | 21W6041202 | |
1-29 | TZ507D1000-02 | 1 | FINAL DRIVE ASSY | 6:14:14H |
1 | 1 | SPINDLE | 3:14H | |
2 | 1 | FLANGE,END | 3H | |
3 | TZ500D1019-00 | 3 | BOLT,REAMER | M24X70 |
4 | 1 | RV GEAR | 27T | |
5 | 1 | RV GEAR | 27T | |
6 | 3 | SHAFT,CRANK | 18T | |
7 | 6 | SPACER | 29*47*1.5 | |
8 | 6 | BEARING | 25*52*20.5 | |
9 | 6 | BEARING | 39*55*20.5 | |
TZ507D1107-00 | 1 | SPUR GEAR KIT | 32T 18T | |
10 | SPUR GEAR | 32T 18T | ||
TZES20423232-B | 1 | FLOATING SEAL ASSY | ||
11 | TZES100-204-B | 2 | SEAL,FLOATING (KIT) | 205*227*16(32) |
12 | TZ507D1001-00 | 1 | HUB,MOTOR | 28T 14H |
13 | TZ507D1006-00 | 1 | GEAR | 16T 14T |
14 | TZ500D1008-00 | 1 | COVER | |
15 | TZ500D1015-00 | 1 | SHAFT | 14:14T |
16 | TZ500D1017-00 | 28 | PIN | 14*49 |
17 | TZ810B1018-00 | 1 | RING | |
18 | SNAP RING SEAT | M52 | ||
19 | BEARING | 184*226*19 | ||
20 | TZJB2804-S19 | 1 | RING,SNAP | M19 |
21 | 04064-02512 | 6 | RING,SNAP | M25 |
22 | 07000-11008 | 2 | O-RING (KIT) | 07000-01008 201-60-18950 |
23 | 07000-15230 | 1 | O-RING (KIT) | 07000-05230 |
24 | TZJW1516-G35-7 | 1 | O-RING (KIT) | |
25 | TZ410D1033-01 | 1 | PLUG | |
26 | TZ810B2021-00 | 2 | PLUG | |
27 | 07000-12014 | 3 | O-RING (KIT) | 07000-02014 |
28 | 04260-00952 | 1 | BALL | 08900-01277 |
29 | TZJ1354-8-22 | 2 | PIN | |
K | TZ505D9000-00 | 1 | SEAL KIT |
