The Excavator Travel Drive Catalog provides the necessary information on the product's weight, which varies depending on the model. The packing size of the product depends on the packing type. The factory color of the Excavator Hub is black, but custom colors are also available for those who want to customize the look of their machine.
The Excavator Hub is driven by a hydraulic travel motor drive, which ensures that the machine can move with ease. This product is suitable for all types of excavators and is an essential part of the machine's operation.
The Excavator Hub is also available as part of the Excavator Aftermarket Parts. This means that it is a high-quality replacement part that is available at an affordable price. The Excavator Aftermarket Parts are designed to meet the same standards as the original parts, ensuring that they are compatible with the machine and can function just as well as the original parts.
The Excavator Travel Drive Catalog is an essential guide for those who want to learn more about the Excavator Hub. This product is ideal for those who need to replace their current Excavator Hub or for those who want to upgrade their machine's performance. With this product, you can be sure that you are getting a high-quality and reliable part that will last for years to come.
Product Name: | Excavator Travel Drive Catalog |
Material: | Steel |
Transport Packaging: | Wooden Box |
Compatibility: | Compatible With Excavator Brands And Models |
Application: | Excavator |
Packing Size: | Depend On Packing Type |
Custom colors: | Yes |
Reducer Type: | Planetary Reducer |
Size: | Varies Depending On Model |
Drive Type: | Hydraulic Swing Motor & Travel Motor Drive |
Weight: | Varies Depending On Model |
The Excavator Travel Drive Catalog is an essential product for those looking for a reliable Excavator Gearbox. It is designed to provide efficient power transmission between the engine and the tracks of the excavator. This gearbox is an important component of the Excavator Final Drive Motor, which is responsible for driving the tracks and allowing the machine to move forward and backward.
Whether you need to repair or replace your existing Excavator Gearbox or Final Drive Motor, the Excavator Travel Drive Catalog is a high-quality product that is sure to meet your needs. Its sturdy construction ensures that it can withstand heavy use and extreme conditions, making it a durable and long-lasting investment for any machinery repair shop or mining operation.
The Excavator Travel Drive Catalog is packaged in a wooden box for safe and secure transport. This ensures that the product arrives at its destination in perfect condition, ready for installation. With TPSV's commitment to quality and reliability, you can trust that this product will exceed your expectations and deliver the performance you need.

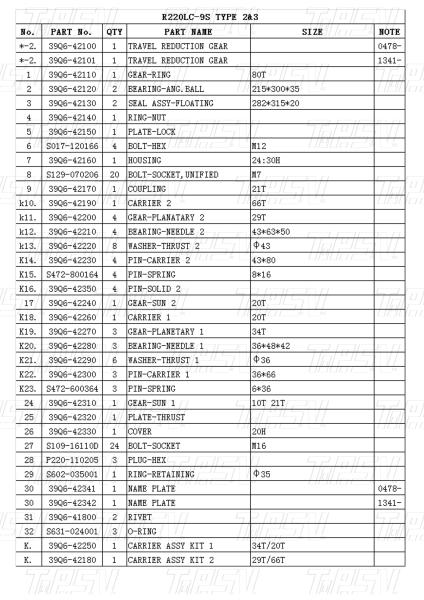

No. | PART No. | QTY | PART NAME | SIZE & NOTE |
*-2. | 39Q6-42100 | 1 | TRAVEL REDUCTION GEAR | 0478- |
*-2. | 39Q6-42101 | 1 | TRAVEL REDUCTION GEAR | 1341- |
1 | 39Q6-42110 | 1 | GEAR-RING | 80T |
2 | 39Q6-42120 | 2 | BEARING-ANG.BALL | 215*300*35 |
3 | 39Q6-42130 | 2 | SEAL ASSY-FLOATING | 282*315*20 |
4 | 39Q6-42140 | 1 | RING-NUT | |
5 | 39Q6-42150 | 1 | PLATE-LOCK | |
6 | S017-120166 | 4 | BOLT-HEX | M12 |
7 | 39Q6-42160 | 1 | HOUSING | 24:30H |
8 | S129-070206 | 20 | BOLT-SOCKET,UNIFIED | M7 |
9 | 39Q6-42170 | 1 | COUPLING | 21T |
k10. | 39Q6-42190 | 1 | CARRIER 2 | 66T |
k11. | 39Q6-42200 | 4 | GEAR-PLANATARY 2 | 29T |
k12. | 39Q6-42210 | 4 | BEARING-NEEDLE 2 | 43*63*50 |
k13. | 39Q6-42220 | 8 | WASHER-THRUST 2 | φ43 |
K14. | 39Q6-42230 | 4 | PIN-CARRIER 2 | 43*80 |
K15. | S472-800164 | 4 | PIN-SPRING | 8*16 |
K16. | 39Q6-42350 | 4 | PIN-SOLID 2 | |
17 | 39Q6-42240 | 1 | GEAR-SUN 2 | 20T |
K18. | 39Q6-42260 | 1 | CARRIER 1 | 20T |
K19. | 39Q6-42270 | 3 | GEAR-PLANETARY 1 | 34T |
K20. | 39Q6-42280 | 3 | BEARING-NEEDLE 1 | 36*48*42 |
K21. | 39Q6-42290 | 6 | WASHER-THRUST 1 | φ36 |
K22. | 39Q6-42300 | 3 | PIN-CARRIER 1 | 36*66 |
K23. | S472-600364 | 3 | PIN-SPRING | 6*36 |
24 | 39Q6-42310 | 1 | GEAR-SUN 1 | 10T 21T |
25 | 39Q6-42320 | 1 | PLATE-THRUST | |
26 | 39Q6-42330 | 1 | COVER | 20H |
27 | S109-16110D | 24 | BOLT-SOCKET | M16 |
28 | P220-110205 | 3 | PLUG-HEX | |
29 | S602-035001 | 1 | RING-RETAINING | φ35 |
30 | 39Q6-42341 | 1 | NAME PLATE | 0478- |
30 | 39Q6-42342 | 1 | NAME PLATE | 1341- |
31 | 39Q6-41800 | 2 | RIVET | |
32 | S631-024001 | 3 | O-RING | |
K. | 39Q6-42250 | 1 | CARRIER ASSY KIT 1 | 34T/20T |
K. | 39Q6-42180 | 1 | CARRIER ASSY KIT 2 | 29T/66T |
