HT208B AC Digital Clamp Meter 240*85*40mm Size LPF / T-RMS Instrument
HT208B AC Digital Clamp Meter 240*85*40mm Size LPF / T-RMS Instrument
HT208B AC Digital Clamp Meter 240*85*40mm Size LPF / T-RMS Instrument
HT208B AC Digital Clamp Meter 240*85*40mm Size LPF / T-RMS Instrument
HT208B AC Digital Clamp Meter 240*85*40mm Size LPF / T-RMS Instrument
HT208B AC Digital Clamp Meter 240*85*40mm Size LPF / T-RMS Instrument
Specifications
Brand Name :
HABOTEST
Model Number :
HT208B
Certification :
CE,ROHS,EMC etc.
Place of Origin :
CHINA
MOQ :
Negotiable
Price :
Negotiable
Payment Terms :
T/T, Western Union
Supply Ability :
20000pcs/month
Packaging Details :
Manual; Batteries; Accessories; Individual gift box
Color :
BLACK+RED
Material :
ABS+PC
Features :
AC,DC Voltage; AC Curent; LPF, Capacitance etc.
Weight :
380g
Size :
240*85*40mm
Power :
2*AA Batteries
Description

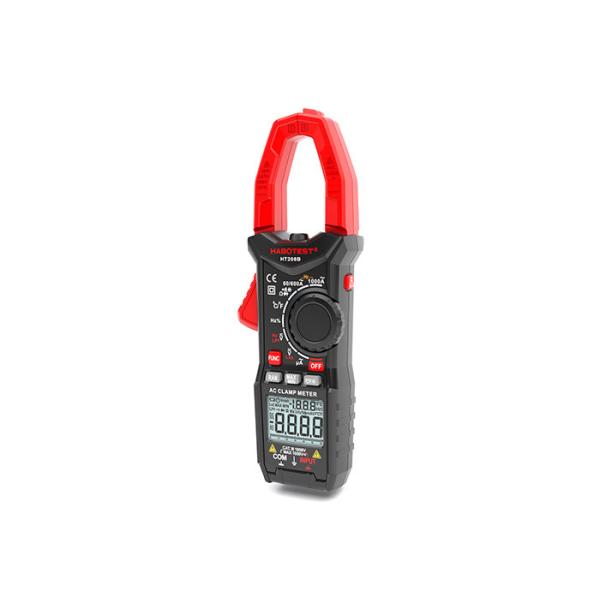

HT208B AC Digital Clamp Meter Current Voltage Resistance Capacitance,LPF, T-RMS Instrument

This clamp meter is a portable, handheld professional meter that measures AC/DC voltage, AC current,Capacitance, resistance.
Features:
Can measure AC/DC voltage, AC current, resistance , capacitance, duty, temperature, Frequency NCV and test continuity.
Manual or Auto measurement function and range.
Overload protection for the whole measurement range.

LCD with double color light,when measuring big voltage and current, it automatically turns orange red color,more safe；

Data hold function, low battery indication, auto power off.
AC bandwidth, Diode test, LPF, V-Loz etc.
Suitable for electrical equipment testing and maintenance.


HT208A/B/D Digital clamp meter

Function Range Accuracy
HT208A HT208B HT208D
DC Voltage 6V/60V/600V/1000V ±(1.0%+3) ±(1.0%+3) ±(1.0%+3)
AC Voltage 6V/60V/600V750V ±(1.2%+3) ±(1.2%+3) ±(1.2%+3)
DC Current 60A/600A/1000A ±(3.0%+5)
AC Current 60A/600A/1000A ±(3.0%+5) ±(3.0%+5) ±(3.0%+5)
Resistance 600Ω/6kΩ/60kΩ/600kΩ/6MΩ/60MΩ ±(1.0%+3) ±(1.0%+3) ±(1.0%+3)
Capacitance 10nF/100nF/1μF/10μF/100μF/1mF/10mF ±(4.0%+3) ±(4.0%+3) ±(4.0%+3)
100mF ±(5.0%+5) ±(5.0%+5) ±(5.0%+5)
Frequency 10Hz/100Hz/1kHz/10kHz/100kHz/1MHz/10MHz ±(1.0%+3) ±(1.0%+3) ±(1.0%+3)
Duty 1%~99% ±(1.0%+2) ±(1.0%+2) ±(1.0%+2)

Temperature
(°C/°F)

 -40°C~1000°C ±(1.0%+3) ±(1.0%+3) ±(1.0%+3)
-40°F~1832°F ±(1.0%+3) ±(1.0%+3) ±(1.0%+3)
Counts 6000 6000 6000
Auto/Manual range √ √ √
Bargraph √ √
NCV √((LED and Buzz)) √((LED and Buzz)) √((LED and Buzz))
Diode √ √ √
Continuity √((LED and Buzz)) √((LED and Buzz)) √((LED and Buzz))
MAX/MIN hold √ √ √
Data hold √ √ √
True RMS √ √ √
AC bandwidth 1kHz 1kHz 1kHz
Low battery indication √ √ √
Auto power off √ √ √
Double color backlight √ √ √
Flashlight √ √ √
LPF √ √
V-LoZ √ √
Power 2XAA Batteries
Weight
Size
Safety Rating EN61010-1,-2-030 EN61010-2-033, EN61326-1 CAT III 1000V,CATIV 600V


HT208B AC Digital Clamp Meter 240*85*40mm Size LPF / T-RMS Instrument
