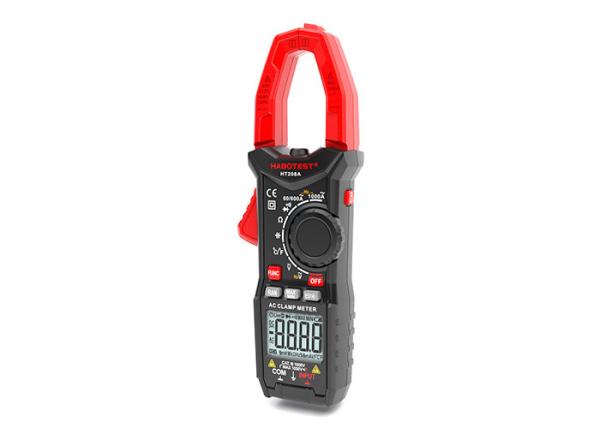

HT208A AC Digital Clamp Meter AC Current Voltage Resistance Capacitance / T-RMS Tester
HT208A AC Digital Clamp Meter AC Current Voltage Resistance Capacitance / T-RMS Tester
HT208A AC Digital Clamp Meter AC Current Voltage Resistance Capacitance / T-RMS Tester
HT208A AC Digital Clamp Meter AC Current Voltage Resistance Capacitance / T-RMS Tester
HT208A AC Digital Clamp Meter AC Current Voltage Resistance Capacitance / T-RMS Tester
HT208A AC Digital Clamp Meter AC Current Voltage Resistance Capacitance / T-RMS Tester
Specifications
Brand Name :
HABOTEST
Model Number :
HT208A
Certification :
CE,ROHS,EMC etc.
Place of Origin :
CHINA
MOQ :
Negotiable
Price :
Negotiable
Payment Terms :
T/T, Western Union
Supply Ability :
20000pcs/month
Packaging Details :
Manual; Batteries; Accessories; Individual gift box
Color :
BLACK+RED
Material :
ABS+PC
Features :
AC,DC Voltage; AC Curent; Data hold; Capacitance etc.
Weight :
380g
Size :
240*85*40mm
Power :
2*AA Batteries
Description

HT208A AC Digital Clamp Meter AC Current Voltage Resistance Capacitance,T-RMS Tester

This clamp meter is a portable, handheld professional meter that measures AC/DC voltage, AC current,Capacitance, resistance.
Features:
Can measure AC/DC voltage, AC current, resistance , capacitance, duty, temperature, Frequency NCV and test continuity.
Manual or Auto measurement function and range.
Overload protection for the whole measurement range.

LCD with double color light,when measuring big voltage and current, it automatically turns orange red color,more safe；

Data hold function, low battery indication, auto power off.
AC bandwidth, Diode test
Suitable for electrical equipment testing and maintenance.


HT208A/B/D Digital clamp meter

FunctionRangeAccuracy
HT208AHT208BHT208D
DC Voltage6V/60V/600V/1000V±(1.0%+3)±(1.0%+3)±(1.0%+3)
AC Voltage6V/60V/600V750V±(1.2%+3)±(1.2%+3)±(1.2%+3)
DC Current60A/600A/1000A ±(3.0%+5)
AC Current60A/600A/1000A±(3.0%+5)±(3.0%+5)±(3.0%+5)
Resistance600Ω/6kΩ/60kΩ/600kΩ/6MΩ/60MΩ±(1.0%+3)±(1.0%+3)±(1.0%+3)
Capacitance10nF/100nF/1μF/10μF/100μF/1mF/10mF±(4.0%+3)±(4.0%+3)±(4.0%+3)
100mF±(5.0%+5)±(5.0%+5)±(5.0%+5)
Frequency10Hz/100Hz/1kHz/10kHz/100kHz/1MHz/10MHz±(1.0%+3)±(1.0%+3)±(1.0%+3)
Duty1%~99%±(1.0%+2)±(1.0%+2)±(1.0%+2)

Temperature
(°C/°F)

-40°C~1000°C±(1.0%+3)±(1.0%+3)±(1.0%+3)
-40°F~1832°F±(1.0%+3)±(1.0%+3)±(1.0%+3)
Counts600060006000
Auto/Manual range√√√
Bargraph √√
NCV√((LED and Buzz))√((LED and Buzz))√((LED and Buzz))
Diode√√√
Continuity√((LED and Buzz))√((LED and Buzz))√((LED and Buzz))
MAX/MIN hold√√√
Data hold√√√
True RMS√√√
AC bandwidth1kHz1kHz1kHz
Low battery indication√√√
Auto power off√√√
Double color backlight√√√
Flashlight√√√
LPF √√
V-LoZ √√
Power2XAA Batteries
Weight
Size
Safety RatingEN61010-1,-2-030 EN61010-2-033, EN61326-1 CAT III 1000V,CATIV 600V
