Specifications
Brand Name :
HABOTEST
Model Number :
HT113A
Certification :
CE
Place of Origin :
China
MOQ :
Negotiation
Price :
Negotiation
Payment Terms :
T/T, Western Union
Supply Ability :
2000pcs/month
Packaging Details :
Manual; Battery, Accessories,Individual gift box, 50pcs/ Cartoon
Color :
Black and Red
Material :
ABS+PC
Features :
AC,DC Voltage; AC Curent; Resistance; NCV; Diode test; Contintuity; True RMS; etc.
Weight :
220g
Size :
151*75*48mm
Power :
2*1.5AAA Battery
name :
good digital multimeter
Description

HT113A Digital Multimeter 2000 counts Accurate Measurement Instrument Muti function with True RMS

Automatic Digital Multimete's Description:

HT113A is a Multifunctional multimeter with high precision and high performance can measure AC/DC voltage, current, resistance with True RMS.

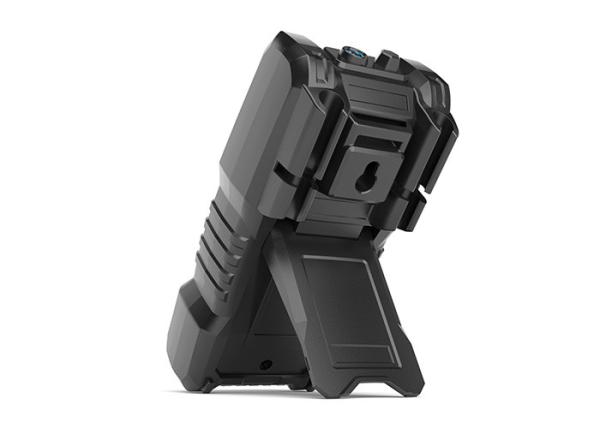

It also can test diode , continuity,bandwidth etc. With a bracket on the back, convenient to place it on the table and read the values.

Parameter:

Function Range Accuracy
HT830L HT113A HT113B HT113C
DC Voltage 200mV/2V/20V/200V/600V ±(0.5%+3) ±(0.5%+3)
400mV/4V/40V/400V/600V ±(0.5%+3)
600mV/6V/60V/600V ±(0.5%+3)
AC Voltage 200V/600V ±(1.0%+3) ±(1.0%+3)
400mV/4V/40V/400V/600V ±(1.0%+3)
600mV/6V/60V/600V ±(1.0%+3)
DC Current 20mA/200mA ±(1.2%+3)
200mA ±(1.2%+3)
400uA/4000uA/40mA/400mA ±(1.2%+3)
600uA/6000uA/60mA/600mA ±(1.2%+3)
10A ±(2.0%+3) ±(2.0%+3) ±(2.0%+3) ±(2.0%+3)
AC Current 200mA ±(1.5%+3)
400uA/4000uA/40mA/400mA ±(1.5%+3)
600uA/6000uA/60mA/600mA ±(1.5%+3)
10A ±(2.0%+3) ±(2.0%+3) ±(2.0%+3)
Resistance 200Ω/2kΩ/20kΩ/200kΩ/2MΩ/20MΩ ±(1.0%+3) ±(1.0%+3)
400Ω/4kΩ/40kΩ/400kΩ/4MΩ/40MΩ ±(1.0%+3)
600Ω/6kΩ/60kΩ/600kΩ/6MΩ/60MΩ ±(1.0%+3)
Capacitance 10nF/100nF/1μF/10μF/100μF/1mF/10mF ±(4.0%+5)
100mF ±(5.0%+5)
Frequency 10Hz/100Hz/1kHz/10kHz/100kHz/1MHz/10MHz ±(1.0%+3)
Duty 1%~99% ±(3.0%+3)
Display 2000 Counts 2000 Counts 4000 Counts 6000 Counts
Auto/Manual range Manual Manual Auto Auto
Live test
NCV (LED and Buzz) (LED and Buzz) (LED and Buzz)
Diode test
Continuity (LED and Buzz) (LED and Buzz) (LED and Buzz)
Max data hold
data hold
True RMS
bandwidth 40~400Hz 40~400Hz 40~400Hz 1kHz
Battery test (1.5V/9V)
Low battery indication
Auto power off
Back light
Work light
Power 2x1.5V AAA batteries
Weight
Size
Safety Rating EN61010-2-030 EN61010-2-033 CAT III 600V

Company info:

Dongguan Habotest Instrument Technology Co.,Ltd is an innovation oriented technology enterprise with an over 20 years R&D team, injection molding, professional production line and assembly capabilities.

We offering professional and innovative measuring products as Digital Mltimeter, Digital Clamp Meter, Earth Resistance tester, Insulation Tester, Environmental detector and other detecting instruments for the worldwide customers to meet the growing global market demand, we also provide electronic test tools, measurement solutions and ODM and OEM services to specific customers.

Habotest now has over hundred various patents and set an independent innovation goal of reaching more than 100 authorized patents each year. After 20 years industry experience in research and development, Habotest standardized its management and quality systems, obtaining ISO9001-2008 and ISO/TS16949, CE, IEC safety standards and introducing financial ERP systems.

For providing qualified products and superior service to all customers, we have been always producing products which meet the industry standards, and creating unique innovative solutions in high-growth fields.

Habotest is currently developing test meters and instruments in an industry park nearly 5000 square meter facility. With this new facility, Habotest is capable to fully supply product demands from all customers across the world.
