HT118C Automatic Digital Multimeter 1000V Resistance Capacitance Double Color Back Light
HT118C Automatic Digital Multimeter 1000V Resistance Capacitance Double Color Back Light
HT118C Automatic Digital Multimeter 1000V Resistance Capacitance Double Color Back Light
HT118C Automatic Digital Multimeter 1000V Resistance Capacitance Double Color Back Light
HT118C Automatic Digital Multimeter 1000V Resistance Capacitance Double Color Back Light
HT118C Automatic Digital Multimeter 1000V Resistance Capacitance Double Color Back Light
HT118C Automatic Digital Multimeter 1000V Resistance Capacitance Double Color Back Light
HT118C Automatic Digital Multimeter 1000V Resistance Capacitance Double Color Back Light
HT118C Automatic Digital Multimeter 1000V Resistance Capacitance Double Color Back Light
HT118C Automatic Digital Multimeter 1000V Resistance Capacitance Double Color Back Light
HT118C Automatic Digital Multimeter 1000V Resistance Capacitance Double Color Back Light
HT118C Automatic Digital Multimeter 1000V Resistance Capacitance Double Color Back Light
Specifications
Place of Origin :
Guangdong, China (Mainland)
Brand Name :
HABOTEST
Model Number :
HT118C
Supply Ability :
10000 Piece/Pieces per Month
MOQ :
10 - 39 Pieces
Price :
$17.50
Measuring Current Range :
60uA~10A
Measuring Voltage Range :
600mV~1000V
Measuring Resistance Range :
600 Ohm~60M Ohm
Measuring Capacitance Range :
10nF~100MF
Measuring Inductance Range :
N/A
Operating Temperature :
0~40
Dimensions :
188 x 88 x 58mm
Display :
6000 Counts
Color :
Black
Frequency :
10Hz-10MHz
Display Type :
3 1/2 Digits
Temperature :
-40-1000C
Operating Mode :
Manual
Power :
2 x 1.5V AA
WEIGHT :
Approx.350g
Safety Rating :
CATIII 1000V
Duty Cycle :
1%--99%
Port :
Guangdong
Description

New Launching Model, HT118 Series 1000V Digital Multimeter

Parameter:
Function Range Accuracy
HT118A HT118C HT118D
DC Voltage 600mV/6V/60V/600V/1000V ±(0.5%+3) ±(0.5%+3) ±(0.5%+3)
AC Voltage 600mV ±(1.0%+5)
6V/60V/600V/750V ±(1.0%+5) ±(1.0%+5) ±(1.0%+5)
DC Current 60uA/60mA/600mA ±(0.8%+3) ±(0.8%+3)
600uA/6000uA/60mA/600mA ±(0.8%+3)
10A ±(1.2%+3) ±(1.2%+3) ±(1.2%+3)
AC Current 60mA/600mA ±(1.0%+3) ±(1.0%+3)
600uA/6000uA/60mA/600mA ±(1.0%+3)
10A ±(1.5%+3) ±(1.5%+3) ±(1.5%+3)
Resistance 600Ω/6kΩ/60kΩ/600kΩ/6MΩ/60MΩ ±(0.8%+3) ±(0.8%+3) ±(0.8%+3)
Capacitance 10nF/100nF/1μF/10μF/100μF/1mF/10mF ±(4.0%+3) ±(4.0%+3) ±(4.0%+3)
100mF ±(5.0%+5) ±(5.0%+5) ±(5.0%+5)
Frequency 10Hz/100Hz/1kHz/10kHz/100kHz/1MHz/10MHz ±(1.0%+3) ±(1.0%+3) ±(1.0%+3)
Duty 1%~99% ±(1.0%+2) ±(1.0%+2) ±(1.0%+2)
Temperature (°C/°F) -40°C~1000°C ±(1.0%+3) ±(1.0%+3)
-40°F~1832°F ±(1.0%+3) ±(1.0%+3)
Counts 6000 Counts 6000 Counts 6000 Counts
Auto/Manual range Auto Manual Manual
Display LCD dual display LCD LCD
Bargraph √
Live test √(sound and light alarm) √(sound and light alarm) √(sound and light alarm)
NCV √(sound and light alarm) √(sound and light alarm) √(sound and light alarm)
Diode test √ √ √
Continuity √(sound and light alarm) √(sound and light alarm) √(sound and light alarm)
Max/Min hold √ √ √
data hold √ √ √
True RMS √ √ √
bandwidth 1kHz 1kHz 1kHz
Battery test (1.5V/9V) √ √
Low battery indication √ √ √
Auto power off √ √ √
Double color backlight √ √ √
Input jack LED indicate √ √ √
Work light √ √ √
Power 2xAA batteries
Weight
Size
Safety Rating EN61010-1,-2-030 EN61010-2-033, EN61326-1 CAT III 1000V,CATIV 600V
Product Description

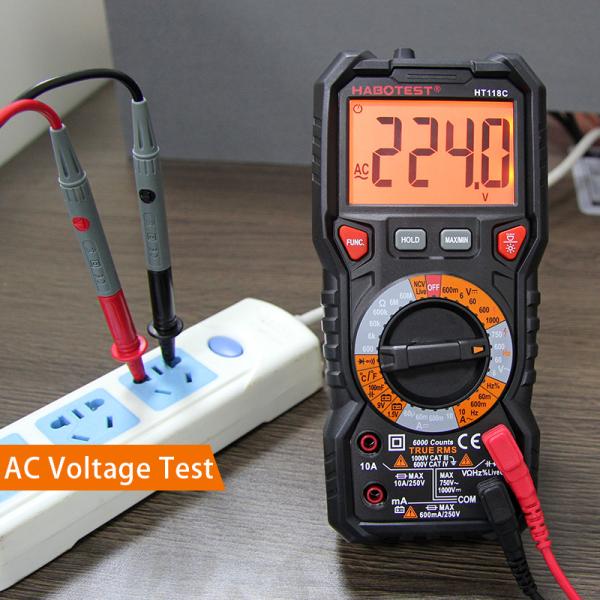

HT118A is a Multifunctional multimeter with high precision and high performance can measure AC/DC voltage, current, resistance, capacitance, frequency, duty ratio, temperature and True RMS.

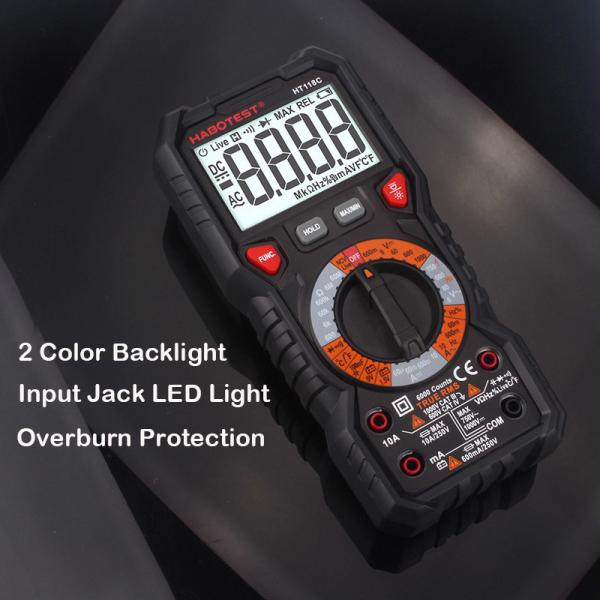

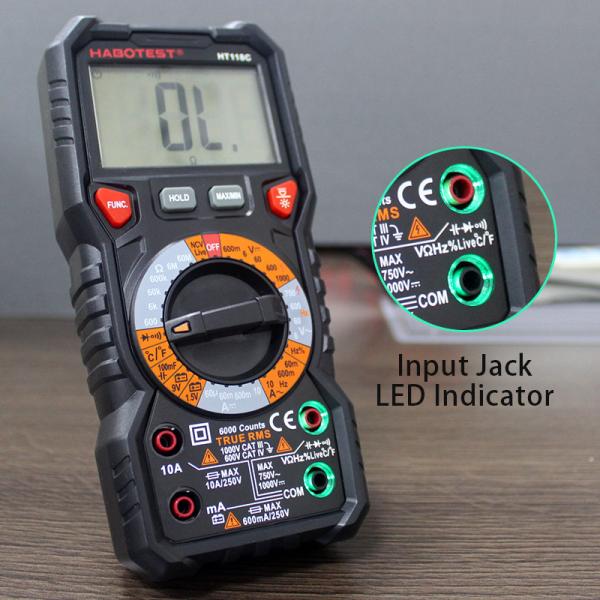

It has a big Bargraph LCD Display with Double color backlight to warn the users about high voltage danger indication. it also featured with input jack indicate LED to avoid wrong input and any damage caused.

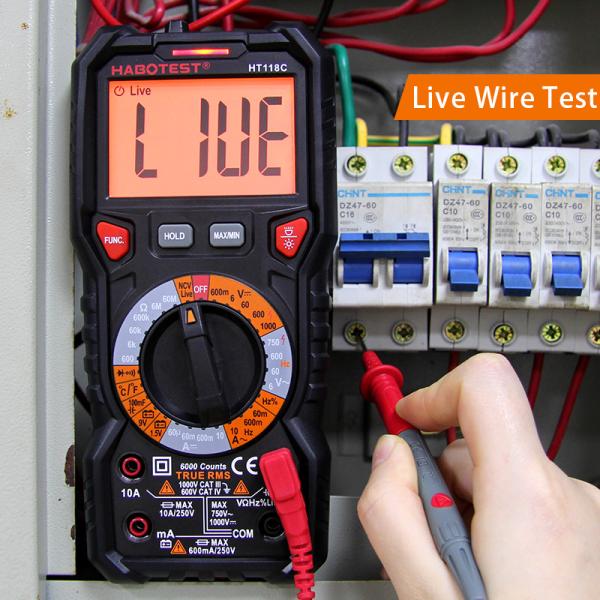

It also can test NCV(non-contact voltage), live line, diode , continuity etc. With a bracket on the back, convenient to place it on the table and read the values.
