Handheld Digital Power Smart Clamp Meter 1000 Amp 1000v
Handheld Digital Power Smart Clamp Meter 1000 Amp 1000v
Specifications
Brand Name :
Habotest
Model Number :
HT208D
Certification :
CE, Rohs , EMC
Place of Origin :
Guangdong, China
MOQ :
1-29 Pieces
Price :
$36.00
Display Type :
Digital Only
Measuring Current Range :
0 ~ 1000A AC/DC
Measuring Voltage Range :
750V ( AC) / 1000V (DC)
Measuring Resistance Range :
600/6K/60K/600K/6M/60M ohms
Measuring Capacitance Range :
10nF/100nF/1K/10K/100K/1M/1OM Hz
Measuring Inductance Range :
/
Operating Temperature :
0~40
Dimensions :
240*85*47MM
Weight :
380g
Product name :
Digital Clamp Meter 1000v 1000a HT208A
DC Voltage :
600mV/6V/60V/600V/1000V
AC Voltage :
600mV/6V/60V/600V/750V
AC/DC Current (A) :
60A/600A/1000A
Resistance :
600/6k /60k /600k /6M /60M OHMS
Capacitance :
10nF/100nF/1K/10K/100K/1mF/10mF/100mF
Duty :
1%-99%
TEMPERATURE :
40C-1000C/ 0F-1832F
Selling Units :
Single item
Single package size  :
30X20X10 cm
Single gross weight :
0.600 kg
Package Type :
50pcs per carton, paper carton
Description

Habotest HT208D DCA ACA 1000V 1000A Professional Digital Clamp Meter with INRUSH NCV DCA ZERO

Product Description

6000Counts

DC Votlage:600mV/6V/60V/600V/1000V

AC Voltage:600mV/6V/60V/600V/750V

AC Current:60A/600A/1000A

DC Current:60A/600A/1000A

Resistance:600/6k /60k /600k /6M /60M OHMS

Capacintance:10nF/100nF/1K/10K/100K/1mF/10mF/100mF

Frequency:10Hz/100Hz/1KHz/10kHz/100kHz/1MHz/10MHz

Duty:1%-99%

NCV

DCA Zero

VFD

Inrush

TRMS

REL

LowZ

Learning how to use a clamp meter is easy. However, it is important that you understand how a clamp meter works and how to best use it in any given environment.

Note that the following steps are only for measurements with a digital clamp meter.

Turn on the meter and remove the probe if it is connected
Using the dial, select AC or DC function
Open the jaws and drop into the conductor to be measured. Remember you should only measure properly insulated conductors and never measure around live wires for safety reasons
Close the jaws and adjust the conductor to make sure it is level and aligned with the center of the clamp
The current reading will be shown on the display

Specification HT208A HT208D Accuracy
DC Voltage 600mV/6V/60V/600V/1000V 600mV/6V/60V/600V/1000V (0.5%+3)
AC Voltage 600mV/6V/60V/600V/750V 600mV/6V/60V/600V/750V (0.8%+3)
AC Current 60A/600A/1000A 60A/600A/1000A (2.5%+5)
DC Current No 60A/600A/1000A (2.5%+3)
Resistance

600/6k /60k /600k /6M /60M ohms

 600/6k /60k /600k /6M /60M ohms (0.8%+3)
Capacitance 10nF/100nF/1K/10K/100K/1mF/10mF/100mF 10nF/100nF/1K/10K/100K/1mF/10mF/100mF (3.0%+3)
Frequency 10Hz/100Hz/1KHz/10kHz/100kHz/1MHz/10MHz 10Hz/100Hz/1KHz/10kHz/100kHz/1MHz/10MHz (0.5%+5)
Duty 1%-99% 1%-99% (1.0%+2)
Temperature 40C-1000C/ 0F-1832F 40C-1000C/ 0F-1832F (1.0%+2)
Counts 6000 Counts 6000 Counts
Auto/Maual Range Yes Yes
Continuity Yes Yes
Diode Yes Yes
Data hold Yes Yes
NCV Yes Yes
Back light Yes Yes
Flashlight Yes Yes
DCA ZERO Yes Yes
Low battery indication Yes YES
Auto Power off Yes YES
True RMS Yes Yes
INRUSH Yes Yes
VFD Yes Yes
MAX/MIN Yes Yes
REL Yes Yes
LowZ Yes Yes
VA LCD YES YES
Power 3*AAA(1.5V)Batteries 3*AAA(1.5V)Batteries
Weight Approx.380g Approx.380g

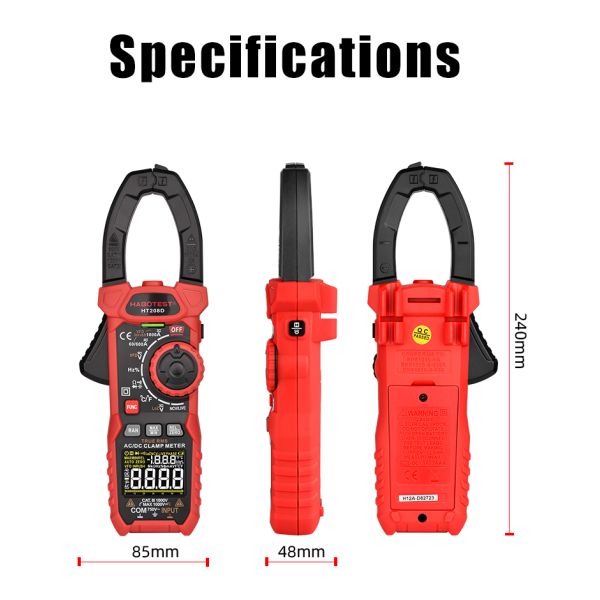

Size 240mm*85mm*47mm 240mm*85mm*47mm
Jaw Size dia 35mm*60mm dia 35mm*60mm
Safety Rating EN61010-1,-2-030 EN61010-2-033,EN61326-1 CAT III 1000V,CAT IV 600V EN61010-1,-2-030 EN61010-2-033,EN61326-1 CAT III 1000V,CAT IV 600V

Product Photo:

Handheld Digital Power Smart Clamp Meter 1000 Amp 1000v

Handheld Digital Power Smart Clamp Meter 1000 Amp 1000v

Handheld Digital Power Smart Clamp Meter 1000 Amp 1000v

Handheld Digital Power Smart Clamp Meter 1000 Amp 1000v

Handheld Digital Power Smart Clamp Meter 1000 Amp 1000v

Handheld Digital Power Smart Clamp Meter 1000 Amp 1000v

Handheld Digital Power Smart Clamp Meter 1000 Amp 1000v

Handheld Digital Power Smart Clamp Meter 1000 Amp 1000v

Handheld Digital Power Smart Clamp Meter 1000 Amp 1000v

Handheld Digital Power Smart Clamp Meter 1000 Amp 1000v
