Auto Ranging Handheld Dmm Digital Multimeter Tester With Color Screen
Auto Ranging Handheld Dmm Digital Multimeter Tester With Color Screen
Specifications
Brand Name :
HABOTEST
Model Number :
HT116
Certification :
CE, ROHS, EMC, PTC
Place of Origin :
China
MOQ :
1~1000pcs
Price :
25~30USD
Payment Terms :
T/T, Western Union
Supply Ability :
20000pcs/ month
Delivery Time :
15~35days
Packaging Details :
165mm*85mm*25mm
AC DC Voltage :
1000V
Cpacitance :
0~100mF
Diode Test :
yes
NCV :
yes
AC DC Current :
yes
Resistance :
yes
Description

Professional HABOTEST HT116 9999 Counts Smart Digital Multimeter with Color Screen Input Prompt Auto Range Voltmeter

The customary term "digital multimeter" is derived from the tool's method of measurement, not its digital display. Almost all multimeters use a digital measurement method, which means that the initial analog data collected is converted into a digital signal and further processed by an A-D converter integrated into the multimeter. Functions such as autoranging or controlling a digital display create a requirement for digital information. Even so, a digital multimeter with an analog display is an option -- these devices display readings in an analog bar graph or an analog gauge.

Product Description

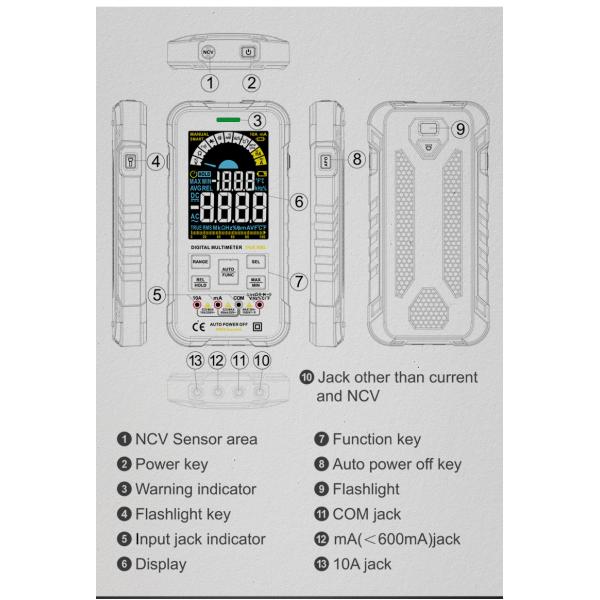

Auto Ranging Handheld Dmm Digital Multimeter Tester With Color Screen

Auto Ranging Handheld Dmm Digital Multimeter Tester With Color Screen

Specifications Range Accuracy
DC Voltage 99.99mV/999.9mV; 9.999V/99.9V/1000V ±(0.5%+3)
AC Voltage 99.99mV/999.9mV; 9.999V/99.9V/750V ±(0.8%+3)
DC Current 9.999mA/99.99mA/600mA ±(0.8%+3)
9.999A ±(1.2%+3)
AC Current 9.999mA/99.99mA/600mA ±(1.0%+3)
9.999A ±(1.5%+3)
Resistance

99.99Ω/999.9Ω/9.999kΩ

99.99kΩ/999.9kΩ

 ±(0.8%+3)
9.999MΩ/99.99MΩ ±(1.2%+3)
Capacitance 0~99.99mF ±(4.0%+3)
9.999mF/99.99mF ±(5.0%+5)
Frequency

99.99Hz/999.9Hz/9.999kHz/99.99kHz

999.9kHz/9.999MHz

 ±(1.0%+3)
Duty 1%~99% ±(1.0%+2)
Temperature -40℃~1000℃ ±(1.0%+3)
Counts 10000 Counts
Auto/Manual Range Manual
Display VA color Display Screen
Bargraph √
Smart Function(AC/DC voltage,resistance and Continuity) √
Live Test (Sound and Light Alarm) √
NCV (Sound and Light Alarm) √
Diode Test (Sound Alarm) √
Continuity (Sound and Light Alarm) √
MAX/MIN/AVG √
Relative Measurement √
Data Hold √
True RMS √
Fuse Burning Prompt Function √
Input Jack LED Indication √
Low Battery Indication √
Auto Power Off √
Double Color Backlight √
Input Jack LED Indicate √
Flashlight √
Power: 3X1.5V AAA batteries
Weight: Approx.255g
Size: 165mm*85mm*25mm

Safety Rating: EN61010-1,-2-030 EN61010-2-033, EN61326-1

CAT ΙΙΙ 1000V,CATIV 600V

Auto Ranging Handheld Dmm Digital Multimeter Tester With Color Screen
