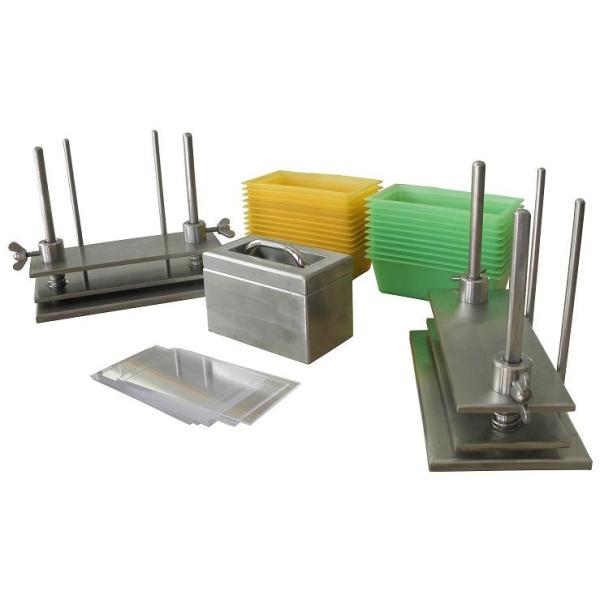

HAIDA BS EN 20105 Color Fastness Testing Equipment Stainless Steel 316
HAIDA BS EN 20105 Color Fastness Testing Equipment Stainless Steel 316
Specifications
Brand Name :
HAIDA
Model Number :
HD-W809
Certification :
CE,ISO
Place of Origin :
Guangdong, China (Mainland)
MOQ :
1 Set
Price :
Negotiable
Payment Terms :
L/C,D/A,D/P,T/T,Western Union,MoneyGram,In cash, escrow
Supply Ability :
30 Sets per Month Haida
Delivery Time :
20 days after order confirmed
Packaging Details :
ach set protected with resin fiber and PP film, then put into Strong wooden case with operation man
Use :
Fabrics
Load on the test specimen :
5 kg/10 lb
Size of test specimen :
100 x 40 mm
Size of acrylic separator plate (each) :
115 x 60 mm
Number of separator plates :
21 + 21 No’s
Dimensions :
240 x 100 x 160 mm
Description

HAIDA BS EN 20105 Color Fastness Testing Equipment Stainless Steel 316

Technical parameters

Technical Index HD-W809
Frame construction Special stainless steel (grade 316)
Load on the test specimen(as per ISO/AATCC) 5 kg/10 lb
Size of test specimen 100 x 40 mm
Size of acrylic separator plate (each) 115 x 60 mm
Number of separator plates 21 + 21 No’s
Dimensions 240 x 100 x 160 mm
Test procedure

To test colour fastness to perspiration, specimens (fabric, yarn or fibre) in contact with Multifibre Adjacent Fabric, are treated in two different solutions containing histidine, one alkaline and one acidic. The specimens are subsequently drained and placed under constant pressure between separator plates in the Perspirometer. Up to 20 test specimens can be accommodated.

The units are then placed in an Incubator for 4 hours at 37˚C (body heat). ( need equip with dry oven)

After drying, change in colour of the specimens and staining of the adjacent fabrics are assessed with Grey Scales.

Separate Perspirometer units must be used for alkaline and acidic tests to avoid chemical interaction.

Application

Determination of colour fastness to water and perspiration. It is also used to predict the likelihood that white or light colored textiles will turn yellow during transport or storage.

Testing standard

UNI EN ISO 105- E04; BS 1006; BS EN 20105; AATCC 15; IWS TM 175


HAIDA BS EN 20105 Color Fastness Testing Equipment Stainless Steel 316 HAIDA BS EN 20105 Color Fastness Testing Equipment Stainless Steel 316
