ISO 105- E04 Color Fastness Tester For Textiles And Leather
ISO 105- E04 Color Fastness Tester For Textiles And Leather
ISO 105- E04 Color Fastness Tester For Textiles And Leather
ISO 105- E04 Color Fastness Tester For Textiles And Leather
Specifications
Brand Name :
HAIDA
Model Number :
HD-W809
Certification :
ISO 9001:2000; ISO 9001:2008
Place of Origin :
Guangdong, China (Mainland)
MOQ :
1 Set
Price :
Negotiable
Payment Terms :
L/C,D/A,D/P,T/T,Western Union,MoneyGram,In cash, escrow
Supply Ability :
30 Sets per Month Haida
Delivery Time :
20 days after order confirmed
Packaging Details :
ach set protected with resin fiber and PP film, then put into Strong wooden case with operation man
Dimensions :
240 x 100 x 160 mm
Number of separator plates :
21 + 21 No’s
Use :
Textiles, Leather
Size of test specimen :
100 x 40 mm
Description

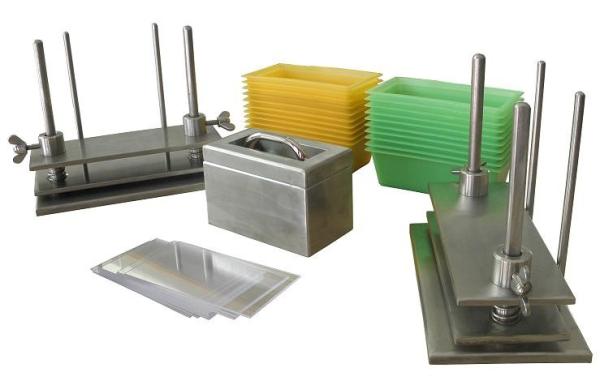

ISO 105- E04 Color Fastness Tester For Textiles And Leather

Testing standard

UNI EN ISO 105- E04; BS 1006; BS EN 20105; AATCC 15; IWS TM 175

Test procedure

To test colour fastness to perspiration, specimens (fabric, yarn or fibre) in contact with Multifibre Adjacent Fabric, are treated in two different solutions containing histidine, one alkaline and one acidic. The specimens are subsequently drained and placed under constant pressure between separator plates in the Perspirometer. Up to 20 test specimens can be accommodated.

The units are then placed in an Incubator for 4 hours at 37˚C (body heat). ( need equip with dry oven)

After drying, change in colour of the specimens and staining of the adjacent fabrics are assessed with Grey Scales.

Separate Perspirometer units must be used for alkaline and acidic tests to avoid chemical interaction.

Technical parameters

Technical Index HD-W809
Frame construction Special stainless steel (grade 316)
Load on the test specimen(as per ISO/AATCC) 5 kg/10 lb
Size of test specimen 100 x 40 mm
Size of acrylic separator plate (each) 115 x 60 mm
Number of separator plates 21 + 21 No’s
Dimensions 240 x 100 x 160 mm
ISO 105- E04 Color Fastness Tester For Textiles And Leather
Company Information

Haida International Equipment Co,Ltd is a National "High-tech Enterprise"(certified in 2016),integrating R&D,manufacturing and brand marketing.Our textile testing instruments meets with the requirements of ISO, ASTM, AATCC, BS, GB, DIN, EN, JIS. We are committed to providing high quality testing instruments.We always adhered to the strict and professional concept and strictly control the quality of products, and provide our customers with high-quality testing instruments,first-class service and competitive prices.

We can provide you with all kinds of testing equipment for fibers, yarns, leather, fabrics, non-fabric, gloves,cotton,bags etc. So as to bring you high quality and safe textiles.A list of our testing equipment:Air Permeability Tester, Martindale Tester, Sample Cutter, Taber Abrasion Tester, Pilling Tester, Snagging Tester, Softness Tester, Twist Tester, Bursting Tester, Crockmeter,Color Fastness Tester, Flammability Tester, Mask tester and so on.
