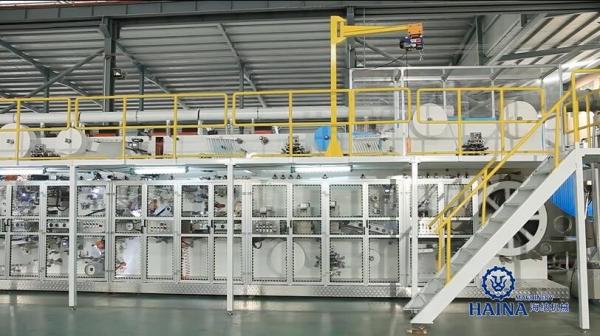

250KW Mitsubishi System 97% Qualified Baby Diaper Production Line
250KW Mitsubishi System 97% Qualified Baby Diaper Production Line
250KW Mitsubishi System 97% Qualified Baby Diaper Production Line
250KW Mitsubishi System 97% Qualified Baby Diaper Production Line
Specifications
Brand Name :
HAINA
Model Number :
HNJX-LK500
Certification :
ISO9001:2015
Place of Origin :
JINJIANG, CHINA
MOQ :
1SET
Price :
Negotiatable
Payment Terms :
T/T
Supply Ability :
70 Machines Per Year
Delivery Time :
5 Months After Receiving Deposit and Confirm Product Drawing
Packaging Details :
Seaworthy Packing
Automaticly :
Full automatical
Design speed :
600pcs/min
Production speed :
500pcs/min
Power :
300kw
Voltage :
380V, 50HZ
Weight :
100tons
Efficiency :
≥85%
Rejection rate :
≤3%
Description

Mitsubishi Imported System Full Servo Baby Diaper Production Line

Feature

1). the whole machine is drived by servo motors, which can control the drive system more accurately.
2). Unwinding is controlled by constant tension
3). Can change raw material without reducing the speed
4). Equipped with pneumatic shaft, easy to change raw material
5).Equipped with automatic detecting & rejecting system
6). Web guiders
7). PLC control system
8). stereo fluff core
9). recombination of legcuff & Elastic waistband on line
10). recombination of backsheet on line

Main Parameter

NAME Full Automatic Training pantsBaby Diaper Machine /Training Pants Baby Diaper Machine
Working speed 500pcs/min(M size)
Qualified rate More than 97%
Efficiency more than 85%
practical capacity 250KW(Including hot melt system)
Electric power supply Three-phase & fourwire 380V/50HZ(Ground wire)
Electric wire 3x150mm2+1x60mm2+1x25mm2
Air compressor more than 0.6Mpa, 1.8m3/min, 22kw(to be reference)
Gross weight 100tons
Machine size (40Mx9Mx4.5M)
Working size (40Mx9Mx5M)
Color Customer selection
Range of products Four Sizes ( XL,L,M,S)
Length of products(mm) 540(XL),500(L),450(M),390(S)
Container 7x40HQ

Excellent After-sales service

1. You can send technicians to our factory to learn operating the machine before delivering
machine for 1-2 month.

2.When the machine arrive at your workshop, we will send technician to your workshop to
install, test the machine and train your workers
3. If you need 1-3 Chinese technicians to work for you, we can help you to find them.

4. Life-long after-sales service for machines.
