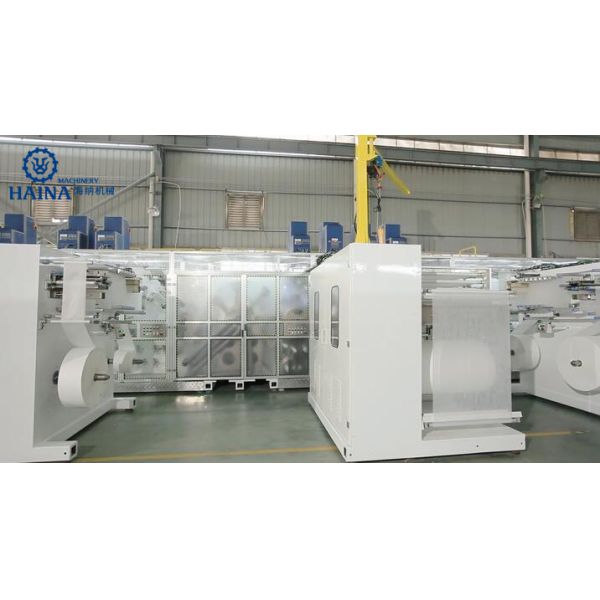

Nordson Applicator Adult Pants Making Machine
Nordson Applicator Adult Pants Making Machine
Nordson Applicator Adult Pants Making Machine
Nordson Applicator Adult Pants Making Machine
Nordson Applicator Adult Pants Making Machine
Nordson Applicator Adult Pants Making Machine
Nordson Applicator Adult Pants Making Machine
Nordson Applicator Adult Pants Making Machine
Specifications
Brand Name :
HAINA
Model Number :
HNJX-CLK350
Certification :
ISO,CE,
Place of Origin :
CHINA
MOQ :
1 set
Price :
negoiatbale
Payment Terms :
T/T
Supply Ability :
6 Sets per Month
Delivery Time :
180 working days after deposit and product drawing signed
Packaging Details :
Anti-rusty Treated and Wrapped Film Packing
Machine Type :
Easy Maintenance T Shape Adult Pant Making Machine with Nordson Hot Melt Glue Applicator
Final Products :
Adult Pants
Product Size :
S,M,XL,L(base on customer request)
Processing Type :
Pulp Molding Machine / Ultra Thin Core Diaper Machine
Speed :
250-300 Pcs/min
PLC :
Mitsubishi/Simens optional
Hotmelt Glue Machine :
Nordson/Wahrheits optional
Power Supply :
3 Phase 380V, 50HZ (base on customer request)
Warranty :
1 year
Condition :
New
After-sales Service :
Customer Site installation, Technical Support, Components Supply
Weight :
Around 95 T
Description

Custimizable Easy Maintenance O Shape Adult Pant Making Machine with stacker

Machine Features:

  1. Unwind & splice:
  • Raw splice at stable running & unwinding, manual or auto alternative.
  • Splice speed can be setup by Interface.
  • The diameter of material can be precisely adjusted while splice, save the raw.
  1. Inspecting system:
  • Raw jointer auto checking & rejecting
  • Raw broken alarm & stop line
  • SAP lower position alarm
  • Hook side tape lacking detecting, auto rejecting.
  • Spandex broken alarm
  • Clothlike, Frontal on-line mark position.
  1. Feeding control:
  • Cellulose pulp feeding adopt servo control, Interface setup the feed-inquantity.
  • SAP spray is servo control, continue working, interface setup the spray weight, lower position alarm.
  • Elastic stretching rate is inverter control, interface setup.
  1. Heating system:
  • Rotary set temperature control by heating couple, & temp. unit.
  • Heating rotary set adopt heating tube.
  • Power track-in & signal output work by mercury rotary connector.
  • Heating rotary set use pneumatic compress, auto lifting while line stop,manual control enabled.
  1. Human-machine Interface:
  • Interface install at machine middle position, English & Chinese language,Big-screen LED display.
  • Raw materials lacking, jointer, splice, fans & vacuum pump jump-off, all display the real-time information.
  • Auto rejecting & rejecting position can be setup
  • Production speed(pcsmin), shift output, rejecting quantity, total capacity, are interface display.
  1. Safety devices:
  • Safety doors equipped
  • Frontal & ear side E-stop & safety line.
  • Speed-up & down, alarm device button, easy operation
  • Safety plate install at die entrance.
  • Glue applicators place on the second platform on the rear side
  1. Rear side wire put into the groove, electric & electronic routes, independent switches.
  2. Electronic voltage: 24V.
  3. Spray & coat glue control, setup the rear upper platform.
  • Pre-served hotmelt application position, spray & coat head keep 90 degree toward materials, hoses fix-up at rear side, perforated vertical through face board.
  • Working with hotmelt units, auto glue spray & stop, manual control enabled.

Nordson Applicator Adult Pants Making Machine

Main Part Suppliers:

NAME BRAND BRAND(Can be Customized)

Servo motors & drivers,

Unwinding Inverters

Interface, control system

 MITSUBISHI / SIEMENS, Customized
Motors Teco motor, Taiwan
Web guiders BST / FIFE
Photo sensor SICK, Germany
Temp. unit OMRON, Japan
Lower electric part Schneider, France
Solid relay OMRON, Japan
Pneumatic parts(cylinders, values, air jointers) FESTO, Germany
Main Bearing NTN & NSK, Japan
Time belts Gates, USA
Convey belts European Brand

HAINA Produces:

Baby Pull Ups Production Line (500ppm)

Full Servo Baby Pull Ups Production Line (800ppm)

Full Surrond U-Shape Baby Diaper Production Line( 500ppm)

Full Surrond U-Shape Baby Diaper Production Line( 500ppm)

Full Servo T Shape Ear Type Baby Diaper Line

Adult Diaper Production Line

Adult Pants Production Line

Adult & Menstual Pants Production Line

Full Servo Panty Shield Line

Semi Servo Sanitary Napkin Machine + Auto Bagger

Panty Shield Production Line + Auto Bagger

Hign Speed Panty Liner Production Line

Nordson Applicator Adult Pants Making Machine

See Machine Running Video on Youtube
https://youtu.be/8ALyiiWH2XM
Packing Way
►Anti-rusty Treated and Wrapped Film Packing
► Some Parts Will Use Carton Box or Wood Case
Nordson Applicator Adult Pants Making Machine
Please feel free to contact us for more info !
