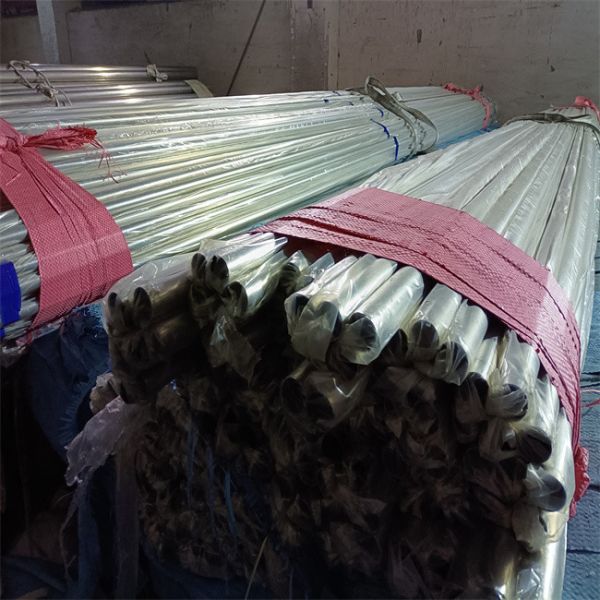

904L ASTM Stainless Steel Welded Tubes DIN AISI JIS
904L ASTM Stainless Steel Welded Tubes DIN AISI JIS
904L ASTM Stainless Steel Welded Tubes DIN AISI JIS
904L ASTM Stainless Steel Welded Tubes DIN AISI JIS
Specifications
Brand Name :
TISCO LISCO POSCO JISCO BAOSTEEL.etc
Model Number :
904L
Certification :
SGS CE BV ISO
Place of Origin :
China
MOQ :
1 TON
Price :
2060 USD/Ton
Payment Terms :
L/C, T/T , Western Union,D/P
Supply Ability :
5000 Ton Per Month
Delivery Time :
7 - 10 days
Packaging Details :
Standard Export Packaging
Name :
Welded Stainless Steel Pipe
Grade :
904L
Thickness :
Custom Made
Standard :
ASTM、DIN、AISI、JIS
Processing Technology :
Cold Rolled Hot Rolled
Type :
Pipe
Length :
customer made
Description

904L Astm Welded Tube Bright Decorate Profile Stainless Steel Pipe

904L Astm Stainless Steel Pipe is Surface resistance less than 1000 trillion; wear protection; stretchable; excellent chemical resistance; good alkali metal and acid resistance; strong toughness; flame retardant.

Standard : ASTM A270 , A269 , A312 , A249 , A554 , A358 , A409 , A778 , A789 , A790 , A928 ,

EN 10217 , EN 10296,DIN 17456 , DIN 17458 , JISG3459 , JIS G3463 , JIS G3467, JIS G3448 , JIS G3468

Material : TP321 SUS321 AISI321 UNS S32100 1 . 4541 X 6CrNiTi18 - 10 08 X 18H10T ,

TP316 / 316L / 316H , 304/304L/304H , 321/321H , 317/317L , 347/347H , 309S , 310S , 2205 , 2507 , 904L (1.4301, 1 . 4306 , 1 . 4948 , 1 . 4401 , 1 . 4404 , 1 . 4571 , 1 . 4541 , 1 . 4833 , 1 . 4878 , 1 . 4550 , 1 . 4462 , 1 . 4438 , 1 . 4845)

Nominal Dia : 3 / 8" to 80" NB for welded pipe ,Schedules : 5S , 10S , 40S , 80S , 10 , 20 , 30 ...120 , 140 , 160 , XXS
All dimensions are in accordance with ANSI B36 . 19 and ANSI B36 . 10
Size range for tube : OD 1 / 4" to 80" ( 6mm to 2000mm) ,THk 0 . 02" to 2" (0 . 5mm to 50mm)

Length : 20m ( Max ) or as your requirement

Process : EFW ( argon arc welding / TIG , plasma arc welding / PAW , and submerged arc welding / SAW)

Finish : Mirror polished , bright annealing, Annealed & pickled ,

Ends : Beveled or plain end , square cut , burr free , Plastic Cap at Both end

Inspection & Test

1 . 100 % PMI,Spectro Chemical Aanlysis Test for Raw Material

2 . 100 % Dimension & Visual Examination

3 . Mechanical Properties Test Include Tension Test , Flaring Test ( For Seamless tube / pipe) / Flange Test ( For Welded Pipe & Tube) , Hardness Test , Reversed Flattening Test

4 . 100 % Hydrostatic Test or 100 % NON-DESTRUCTIVE Test ( ET or UT )

5 . Radiographic Test for Welded Pipe (shall be accordance with specification , or shall be as agreed upon between the purchaser and vendor )

6 . Straightness Test ( optional )

7 . Roughness Test (optional )

8 . Intergranular Corrosion Test ( optional )

9 . Impact Test (optional)

10 . Grain Size Determinations ( optional )

NOTES : ALL THE TESTS AND INSPECTION RESULT NEED TO BE SHOWED IN REPORTS ACCORDING TO STANDARD AND SPECIFICATION .
