Specifications
Brand Name :
TOKEN
Model Number :
TBV-AV
Certification :
CE;ROHS
Place of Origin :
CHINA
MOQ :
10pcs
Price :
Price Reconsideration
Supply Ability :
2.2K pcs per month
Packaging Details :
Little Carton Size:34*23*21CM;240pcs/Carton ;Large Carton Size:48*37*26CM;480pcs/Carton
product name :
hall effect voltage sensor
Usage :
hall effect sensor
Theory :
Hall Sensor
Operating temperature :
_40℃~+85℃
Color :
Blue and black
Type :
voltage transducer
Description

TBV-AV Series Hall Effect Voltage Sensor Ac Dc Voltage And Current Transducer

TBV-AV series hall effect voltage sensor is the measuring principle of the hall effect, with a galvanic isolation between primary and secondary circuit. It provides accurate electronic measurement of DC, AC or pulsed currents.

Electrical data(Ta=25℃±5℃)

Type

Parameter

 TBV50AV TBV100AV TBV200AV TBV300AV TBV400AV TBV500AV TBV800AV TBV1000AV
Unit
Rated input (Vpn) 50 100 200 300 400 500 800 1000 V
Measure range(Vp) 100 200 400 600 800 1000 1600 2000 V

Turns ratio(Np/Ns)

 5000:1000 T
Rated input(Ipn) 5.0 mA
Rated output @Vp=±Vpn ±5±0.5% V
Supply voltage ±15±5% V
Consumption current 20+IpX(Np/Ns) mA
Offset voltage @Vp=0 ±25 mV
Offset drift @ -40℃～+85℃ ≤±0.5 mV/℃
Linearity @Ip=0-±Ipn ≤0.1 %FS
Response time ≤50 uS
Bandwidth(-3dB) 0～10 KHZ
Galvanic isolation @ 50HZ,AC,1min 2.5 KV

Applications

AC variable speed drives and servo motor drives

Static converters for DC motor drives

Variable speed drives

Power supplies for welding applications

Battery supplied applications

Uninterruptible Power Supplies (UPS)

Switched Mode Power Supplies(SMPS)

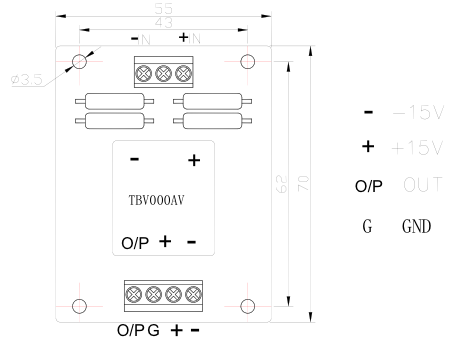

Mechanical dimension(for reference only)

TBV-AV Series Hall Effect Voltage Sensor Ac Dc Voltage And Current Transducer


Remarks:

1. All dimensions are in mm.

2. General tolerance ±1mm.

Directions for use

When the voltage will be measured goes through a transmitter, the voltage will be measured at the output end.

(Note: The false wiring may result in the damage of the senor).

Customs can adjust output amplitude of the sensor by needs.

Custom design in the different rated input voltage and the output voltage are available.

Standards

  • UL94-V0.
  • EN60947-1:2004
  • IEC60950-1:2001
  • EN50178:1998
  • SJ 20790-2000

General date

Value Unit Symbol
Operating temperature -40 to +85 ºC TA
Storage temperature -40 to +125 ºC TS
Mass(approx) 43 g M

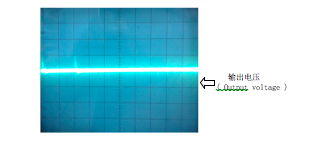

Characteristics chart

Effects of impulse noise

TBV-AV Series Hall Effect Voltage Sensor Ac Dc Voltage And Current Transducer
